TX-LR32C10
9
5 Chassis Board

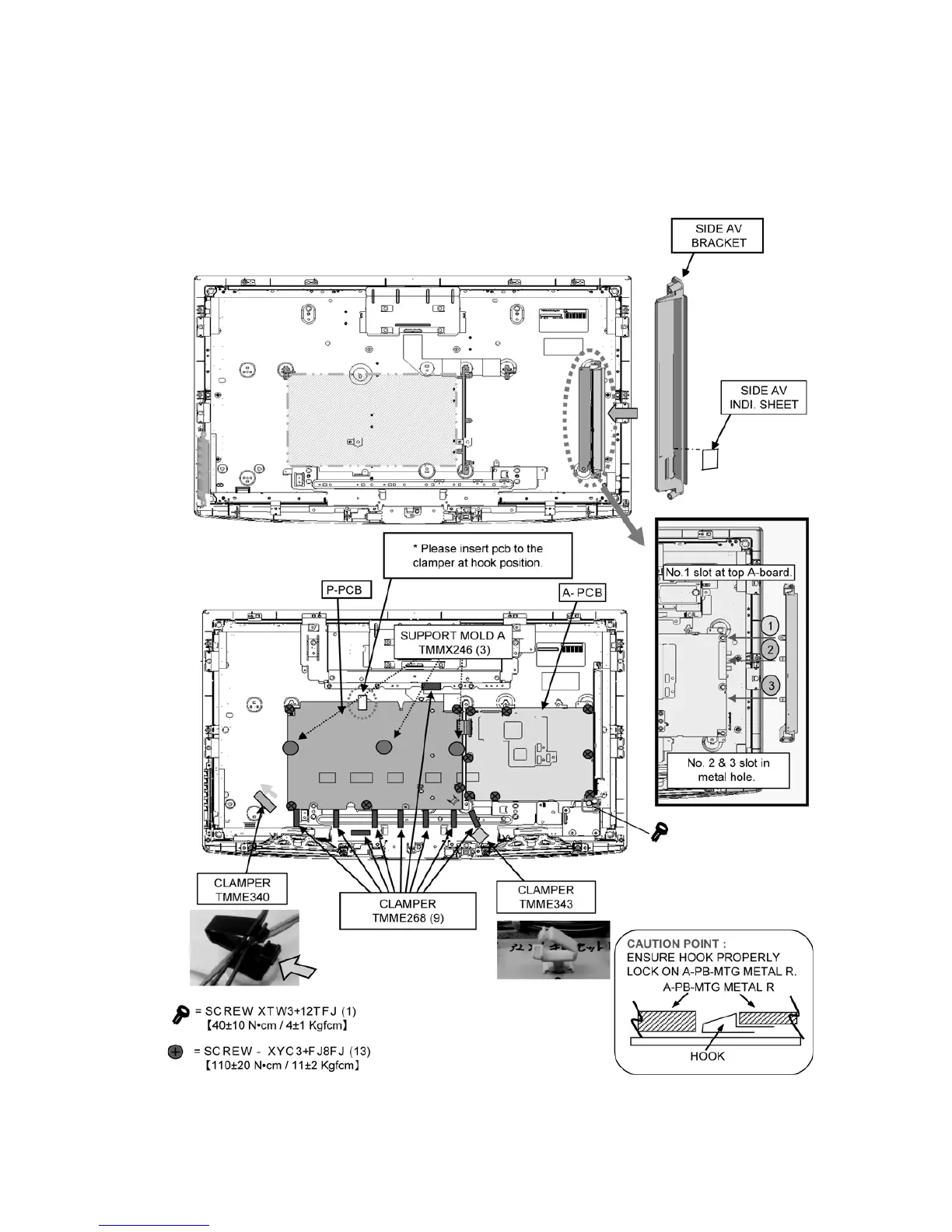

5.1. Chassis Installation
1. Stick FELT to SIDE AV BRACKET.
- Stick the SIDE AV INDI. SHEET on the SIDE AV BRACKET.
- Insert the SIDE AV BRACKET from the side position of the A-PCB.
