Panasonic tx-lr32c10 - Pedestal Assembly

TX-LR32C10
14

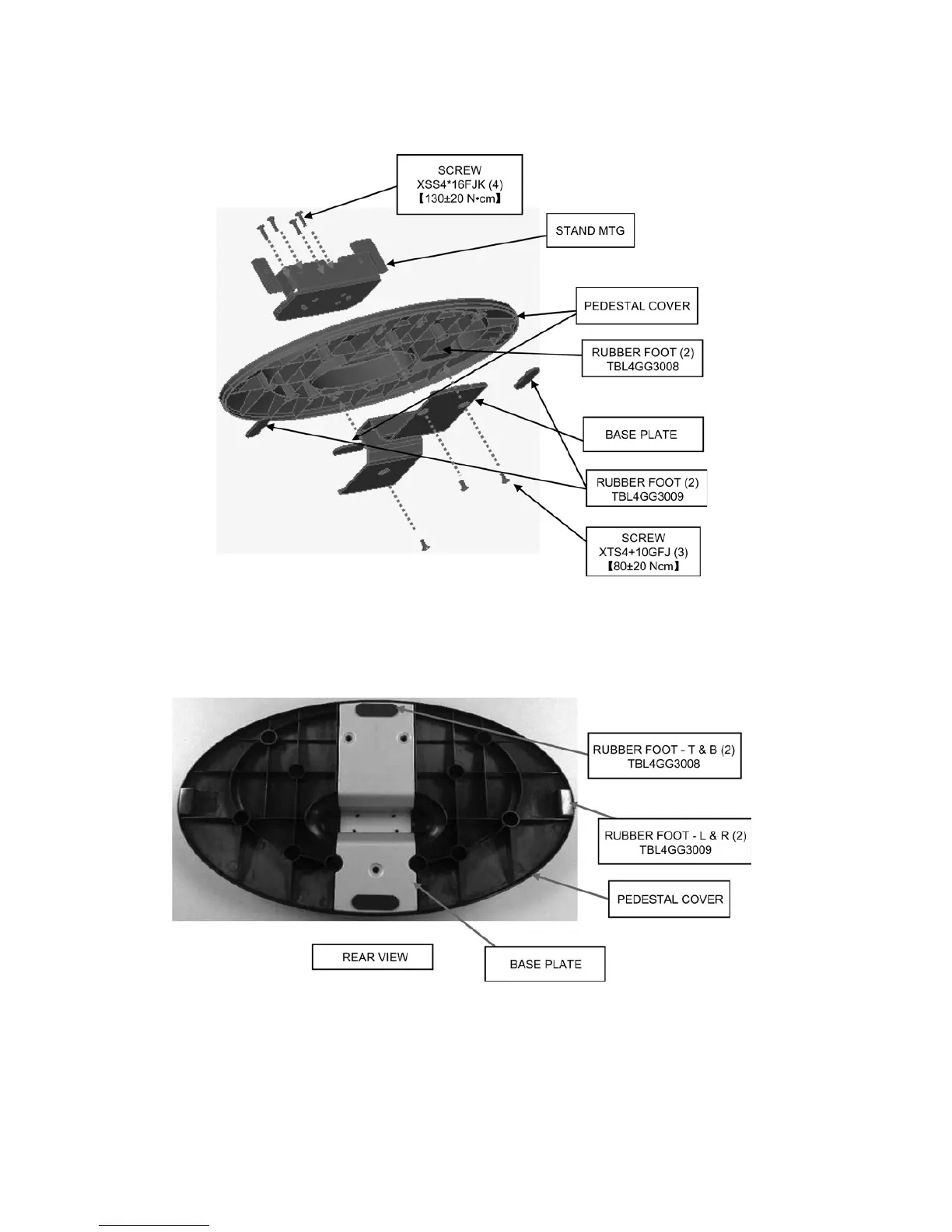

7.4. Pedestal Assembly
Step 1
Setting BASE PLATE and PEDESTAL COVER with SCREWS.
Step 2
1. Stick the RUBBER FOOT at bottom PEDESTAL COVER and BASE PLATE.
2. RUBBER FOOT (TBL4GG3008 - 2 pcs) stick at BASE PLATE.
3. RUBBER FOOT (TBL4GG3009 - 2 pcs) stick at bottom PEDESTAL COVER.
