Panasonic TX-P42S20L - Page 106

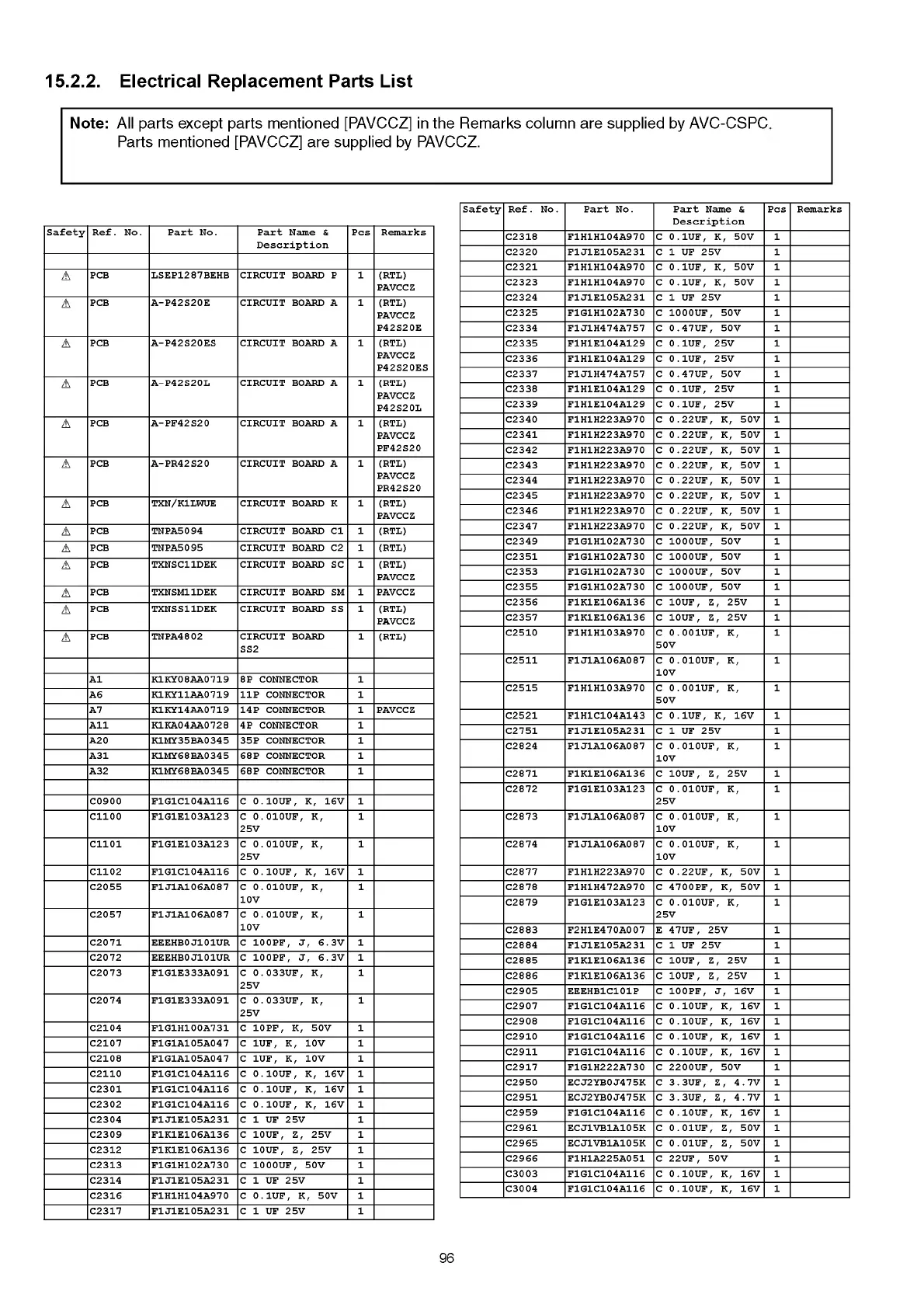

15.2.2. Electrical Replacement Parts List
Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by AVC-CSPC
Parts mentioned [PAVCCZ] are supplied by PAVCCZ.
Safety Ref. No. Part No. Part Name &
Description
Pcs Remarks
A
PCB LSEP1287BEHB CIRCUIT BOARD P 1 (RTL)
PAVCCZ
A
PCB A-P42S20E CIRCUIT BOARD A 1 (RTL)
PAVCCZ
P42S20E
A
PCB A-P42S20ES CIRCUIT BOARD A 1 (RTL)
PAVCCZ
P42S20ES
A
PCB A-P42S20L CIRCUIT BOARD A 1 (RTL)
PAVCCZ
P42S20L
A
PCB A-PF42S20 CIRCUIT BOARD A 1 (RTL)
PAVCCZ
PF42S20
A
PCB A-PR42S20 CIRCUIT BOARD A 1 (RTL)
PAVCCZ
PR42S20
A
PCB TXN/K1LWUE CIRCUIT BOARD K 1 (RTL)
PAVCCZ
A
PCB TNPA5094 CIRCUIT BOARD C1 1 (RTL)
A
PCB TNPA5095 CIRCUIT BOARD C2 1 (RTL)
A
PCB TXNSC11DEK CIRCUIT BOARD SC 1 (RTL)
PAVCCZ
A
PCB TXNSM11DEK CIRCUIT BOARD SM 1 PAVCCZ
A
PCB TXNSS11DEK CIRCUIT BOARD SS 1 (RTL)
PAVCCZ
A
PCB TNPA4802 CIRCUIT BOARD
SS2
1 (RTL)
A1 K1KY08AA0719 8P CONNECTOR 1
A6 K1KY11AA0719 11P CONNECTOR 1
A7 K1KY14AA0719 14P CONNECTOR 1 PAVCCZ
A11
K1KA04AA0728
4P CONNECTOR 1
A20 K1MY35BA0345 35P CONNECTOR 1
A31
K1MY68BA0345
68P CONNECTOR 1
A32
K1MY68BA0345
68P CONNECTOR 1
C0900 F1G1C104A116 C 0.10UF, K, 16V 1
C1100 F1G1E103A123 C 0.010UF, K,
25V
1
C1101 F1G1E103A123 C 0.010UF, K,
25V
1
C1102 F1G1C104A116 C 0.10UF, K, 16V 1
C2055 F1J1A106A0 87 C 0.010UF, K,
10V
1
C2057 F1J1A106A0 87 C 0.010UF, K,
10V
1
C2071 EEEHB0J101UR C 100PF, J, 6.3V 1
C2072 EEEHB0J101UR C 100PF, J, 6.3V 1
C2073 F1G1E333A091 C 0.033UF, K,
25V
1
C2074 F1G1E333A091 C 0.033UF, K,
25V
1
C2104 F1G1H100A731 C 10PF, K, 50V 1
C2107 F1G1A105A047 C 1U F, K, 10V 1
C2108 F1G1A105A047 C 1U F, K, 10V 1
C2110 F1G1C104A116 C 0.10UF, K, 16V 1
C2301 F1G1C104A116 C 0.10UF, K, 16V 1
C2302 F1G1C104A116 C 0.10UF, K, 16V 1
C2304 F1J1E105A231 C 1 UF 25V 1
C2309 F1K1E106A136 C 10UF, Z, 25V 1
C2312 F1K1E106A136 C 10UF, Z, 25V 1
C2313 F1G1H102A730 C 1000UF, 50V 1
C2314 F1J1E105A231 C 1 UF 25V 1
C2316 F1H1H104A970 C 0.1UF, K, 50V 1
C2317 F1J1E105A231 C 1 UF 25V 1
Safety Ref. No. Part No. Part Name &
Description
Pcs Remarks
C2318 F1H1H104A970 C 0.1UF, K, 50V 1
C2320 F1J1E105A231 C 1 UF 25V 1
C2321 F1H1H104A970 C 0.1UF, K, 50V 1
C2323 F1H1H104A970 C 0.1UF, K, 50V 1
C2324 F1J1E105A231 C 1 UF 25V 1
C2325 F1G1H102A730 C 1000UF, 50V 1
C2334 F1J1H474A757 C 0.47UF, 50V 1
C2335 F1H1E104A129 C 0.1UF, 25V 1
C2336 F1H1E104A129 C 0.1UF, 25V 1
C2337 F1J1H474A757 C 0.47UF, 50V 1
C2338 F1H1E104A129 C 0.1UF, 25V 1
C2339 F1H1E104A129 C 0.1UF, 25V 1
C2340 F1H1H223A970 C 0.22UF, K, 50V 1
C2341 F1H1H223A970 C 0.22UF, K, 50V 1
C2342 F1H1H223A970 C 0.22UF, K, 50V 1
C2343 F1H1H223A970 C 0.22UF, K, 50V 1
C2344 F1H1H223A970 C 0.22UF, K, 50V 1
C2345 F1H1H223A970 C 0.22UF, K, 50V 1
C2346 F1H1H223A970 C 0.22UF, K, 50V 1
C2347 F1H1H223A970 C 0.22UF, K, 50V 1
C2349 F1G1H102A730 C 1000UF, 50V 1
C2351 F1G1H102A730 C 1000UF, 50V 1
C2353 F1G1H102A730 C 1000UF, 50V 1
C2355 F1G1H102A730 C 1000UF, 50V 1
C2356 F1K1E106A136 C 10UF, Z, 25V 1
C2357 F1K1E106A136 C 10UF, Z, 25V 1
C2510 F1H1H103A970 C 0.001UF, K,
50V
1
C2511 F1J1A10 6A087 C 0.010UF, K,
10V
1
C2515 F1H1H103A970 C 0.001UF, K,
50V
1
C2521 F1H1C104A143 C 0.1UF, K, 16V 1
C2751 F1J1E105A231 C 1 UF 25V 1
C2824 F1J1A10 6A087 C 0.010UF, K,
10V
1
C2871 F1K1E106A136 C 10UF, Z, 25V 1
C2872 F1G1E103A123 C 0.010UF, K,
25V
1
C2873 F1J1A10 6A087 C 0.010UF, K,
10V
1
C2874 F1J1A10 6A087 C 0.010UF, K,
10V
1
C2877 F1H1H223A970 C 0.22UF, K, 50V 1
C2878 F1H1H472A970 C 4700PF, K, 50V 1
C2879 F1G1E103A123 C 0.010UF, K,
25V
1
C2883 F2H1E470A007 E 47UF, 25V 1
C2884 F1J1E105A231 C 1 UF 25V 1
C2885 F1K1E106A136 C 10UF, Z, 25V 1
C2886 F1K1E106A136 C 10UF, Z, 25V 1
C2905 EEEHB1C101P C 100PF, J, 16V 1
C2907 F1G1C104A116 C 0.10UF, K, 16V 1
C2908 F1G1C104A116 C 0.10UF, K, 16V 1
C2910 F1G1C104A116 C 0.10UF, K, 16V 1
C2911 F1G1C104A116 C 0.10UF, K, 16V 1
C2917 F1G1H222A730 C 2200UF, 50V 1
C2950 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1
C2951 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1
C2959 F1G1C104A116 C 0.10UF, K, 16V 1
C2961 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C2965 ECJ1VB1A105K C 0.01UF, Z, 50V 1
C2966 F1H1A225A051 C 22UF, 50V 1
C3003 F1G1C104A116 C 0.10UF, K, 16V 1
C3004 F1G1C104A116 C 0.10UF, K, 16V 1
96
