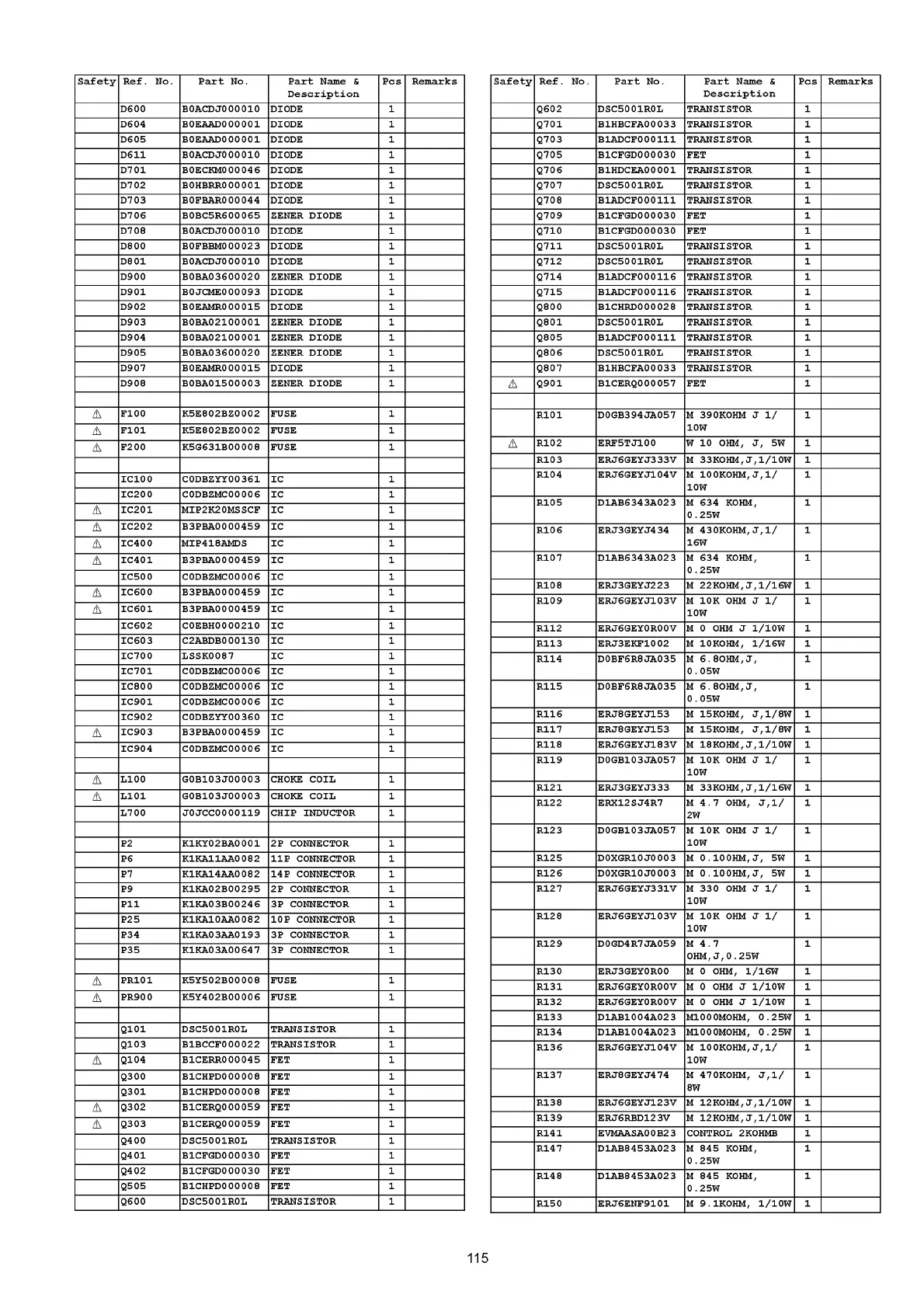

Safety Ref. No. Part No. Part Name &
Description
Pcs Remarks
D600 B0ACDJ000010 DIODE 1
D604
B0EAAD000001
DIODE 1
D605
B0EAAD000001
DIODE 1
D611 B0ACDJ000010 DIODE 1
D701
B0ECKM000046
DIODE 1
D702 B0HBRR000001 DIODE 1
D703 B0FBAR000044 DIODE 1
D706 B0BC5R600065 ZENER DIODE 1
D708 B0ACDJ000010 DIODE 1
D800 B0FBBM000023 DIODE 1
D801 B0ACDJ000010 DIODE 1
D900 B0BA03600020 ZENER DIODE 1
D901
B0JCME000093
DIODE 1
D902
B0EAMR000015
DIODE 1
D903 B0BA02100001 ZENER DIODE 1
D904 B0BA02100001 ZENER DIODE 1
D905 B0BA03600020 ZENER DIODE 1
D907 B0EAMR000015 DIODE 1
D908 B0BA01500003 ZENER DIODE 1
A
F100 K5E802BZ0002 FUSE 1
A
F101 K5E802BZ0002 FUSE 1
A
F200 K5G631B00008 FUSE 1
IC100 C0DBZYY00361 IC 1
IC200 C0DBZMC00006 IC 1
A
IC201 MIP2K20MSSCF IC 1
A
IC202 B3PBA0000459 IC 1
A
IC400 MIP418AMDS IC 1
A
IC401 B3PBA0000459 IC 1
IC500 C0DBZMC00006 IC 1
A
IC600 B3PBA0000459 IC 1
A
IC601 B3PBA0000459 IC 1
IC602 C0EBH0000210 IC 1
IC603 C2ABDB000130 IC 1
IC700 LSSK0087 IC 1
IC701 C0DBZMC00006 IC 1
IC800 C0DBZMC00006 IC 1
IC901 C0DBZMC00006 IC 1
IC902 C0DBZYY00360 IC 1
A
IC903 B3PBA0000459 IC 1
IC904 C0DBZMC00006 IC 1
A
L100 G0B103J00003 CHOKE COIL 1
A
L101 G0B103J00003 CHOKE COIL 1
L700 J0JCC0000119 CHIP INDUCTOR 1
P2 K1KY02BA0001 2P CONNECTOR 1
P6 K1KA11AA0082 11P CONNECTOR 1
P7 K1KA14AA0082 14P CONNECTOR 1
P9 K1KA02B00295 2P CONNECTOR 1
P11 K1KA03B00246 3P CONNECTOR 1
P25 K1KA10AA0082 10P CONNECTOR 1
P34 K1KA03AA0193 3P CONNECTOR 1
P35 K1KA03A00647 3P CONNECTOR 1
A
PR101 K5Y502B00008 FUSE 1
A
PR900 K5Y402B00006 FUSE 1
Q101 DSC5001R0L TRANSISTOR 1
Q103 B1BCCF000022 TRANSISTOR 1
A
Q104 B1CERR000045 FET 1
Q300 B1CHPD000008 FET 1
Q301 B1CHPD000008 FET 1
A
Q302
B1CERQ000059 FET 1
A
Q303
B1CERQ000059 FET 1
Q400 DSC5001R0L TRANSISTOR 1
Q401 B1CFGD000030 FET 1
Q402 B1CFGD000030 FET 1
Q505
B1CHPD000008 FET 1
Q600 DSC5001R0L TRANSISTOR 1
Safety Ref. No. Part No. Part Name &
Description
Pcs Remarks
Q602
DSC5001R0L TRANSISTOR 1
Q701
B1HBCFA00033 TRANSISTOR 1
Q703
B1ADCF000111 TRANSISTOR 1
Q705
B1CFGD000030 FET 1
Q706
B1HDCEA00001 TRANSISTOR 1
Q707
DSC5001R0L TRANSISTOR 1
Q708
B1ADCF000111 TRANSISTOR 1
Q709
B1CFGD000030 FET 1
Q710
B1CFGD000030 FET 1
Q711
DSC5001R0L TRANSISTOR 1
Q712
DSC5001R0L TRANSISTOR 1
Q714
B1ADCF000116 TRANSISTOR 1
Q715
B1ADCF000116 TRANSISTOR 1
Q800
B1CHRD000028
TRANSISTOR 1
Q801
DSC5001R0L TRANSISTOR 1
Q805
B1ADCF000111 TRANSISTOR 1
Q806 DSC5001R0L TRANSISTOR 1
Q807
B1HBCFA00033 TRANSISTOR 1
A
Q901
B1CERQ000057 FET 1
R101 D0GB394JA057 M 390KOHM J 1/
10W
1
A
R102 ERF5TJ100 W 10 OHM, J, 5W 1
R103 ERJ6GEYJ333V M 33KOHM,J,1/10W 1
R104 ERJ6GEYJ104V M 100KOHM,J,1/
10W
1
R105 D1AB6343A023 M 634 KOHM,
0.25W
1
R106 ERJ3GEYJ434 M 430KOHM,J,1/
16W
1
R107 D1AB6343A023 M 634 KOHM,
0.25W
1
R108 ERJ3GEYJ223 M 22KOHM,J,1/16W 1
R109 ERJ6GEYJ103V M 10K OHM J 1/
10W
1
R112 ERJ6GEY0R00V M 0 OHM J 1/10W 1
R113 ERJ3EKF1002 M 10KOHM, 1/16W 1
R114 D0BF6R8JA035 M 6.8OHM,J,
0.05W
1
R115 D0BF6R8JA035 M 6.8OHM,J,
0.05W
1
R116 ERJ8GEYJ153 M 15KOHM, J,1/8W 1
R117 ERJ8GEYJ153 M 15KOHM, J,1/8W 1
R118 ERJ6GEYJ183V M 18KOHM,J,1/10W 1
R119 D0GB103JA057 M 10K OHM J 1/
10W
1
R121 ERJ3GEYJ333 M 33KOHM,J,1/16W 1
R122 ERX12SJ4R7 M 4.7 OHM, J,1/
2W
1
R123 D0GB103JA057 M 10K OHM J 1/
10W
1
R125 D0XGR10J0003 M 0.100HM,J, 5W 1
R126 D0XGR10J0003 M 0.100HM,J, 5W 1
R127 ERJ6GEYJ331V M 330 OHM J 1/
10W
1
R128 ERJ6GEYJ103V M 10K OHM J 1/
10W
1
R129 D0GD4R7JA059 M 4.7
OHM,J,0.25W
1
R130 ERJ3GEY0R00 M 0 OHM, 1/16W 1
R131 ERJ6GEY0R00V M 0 OHM J 1/10W 1
R132 ERJ6GEY0R00V M 0 OHM J 1/10W 1
R133 D1AB1004A023 M1000MOHM, 0.25W 1
R134 D1AB1004A023 M1000MOHM, 0.25W 1
R136 ERJ6GEYJ104V M 100KOHM,J,1/
10W
1
R137 ERJ8GEYJ474 M 470KOHM, J,1/
8W
1
R138 ERJ6GEYJ123V M 12KOHM,J,1/10W 1
R139 ERJ6RBD123V M 12KOHM,J,1/10W 1
R141 EVMAASA00B23 CONTROL 2KOHMB 1
R147 D1AB8453A023 M 845 KOHM,
0.25W
1
R148 D1AB8453A023 M 845 KOHM,
0.25W
1
R150 ERJ6ENF9101 M 9.1KOHM, 1/10W 1
115
