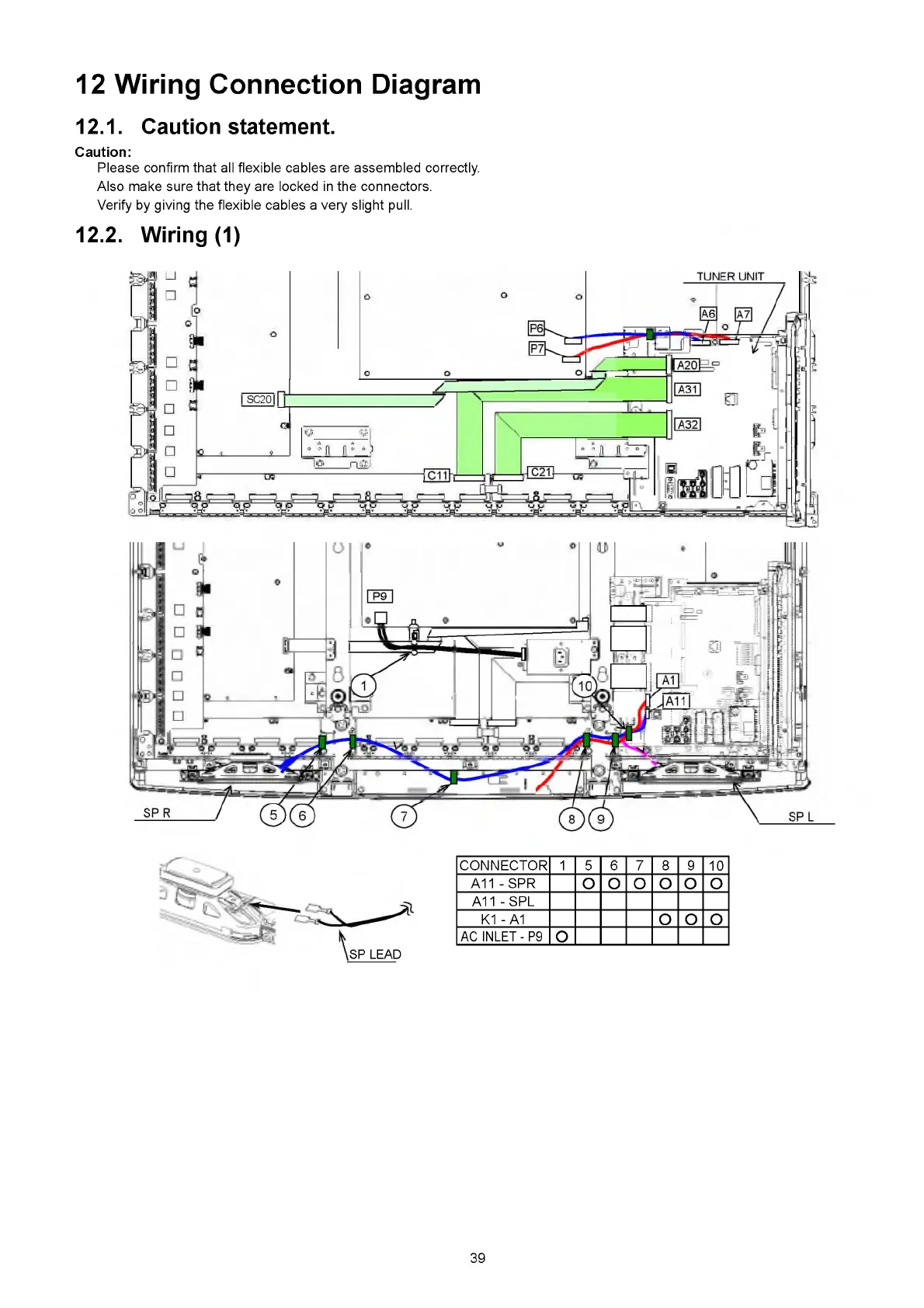

12 Wiring Connection Diagram
12.1. Caution statement.
Caution:
Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.
12.2. Wiring (1)
CONNECTOR 1 5 6 7 8 9
10
A11 - SPR
О О О О О О
A11 -SPL
K1 - A1
О О О
AC INLET-P9
О
SP LEAD
