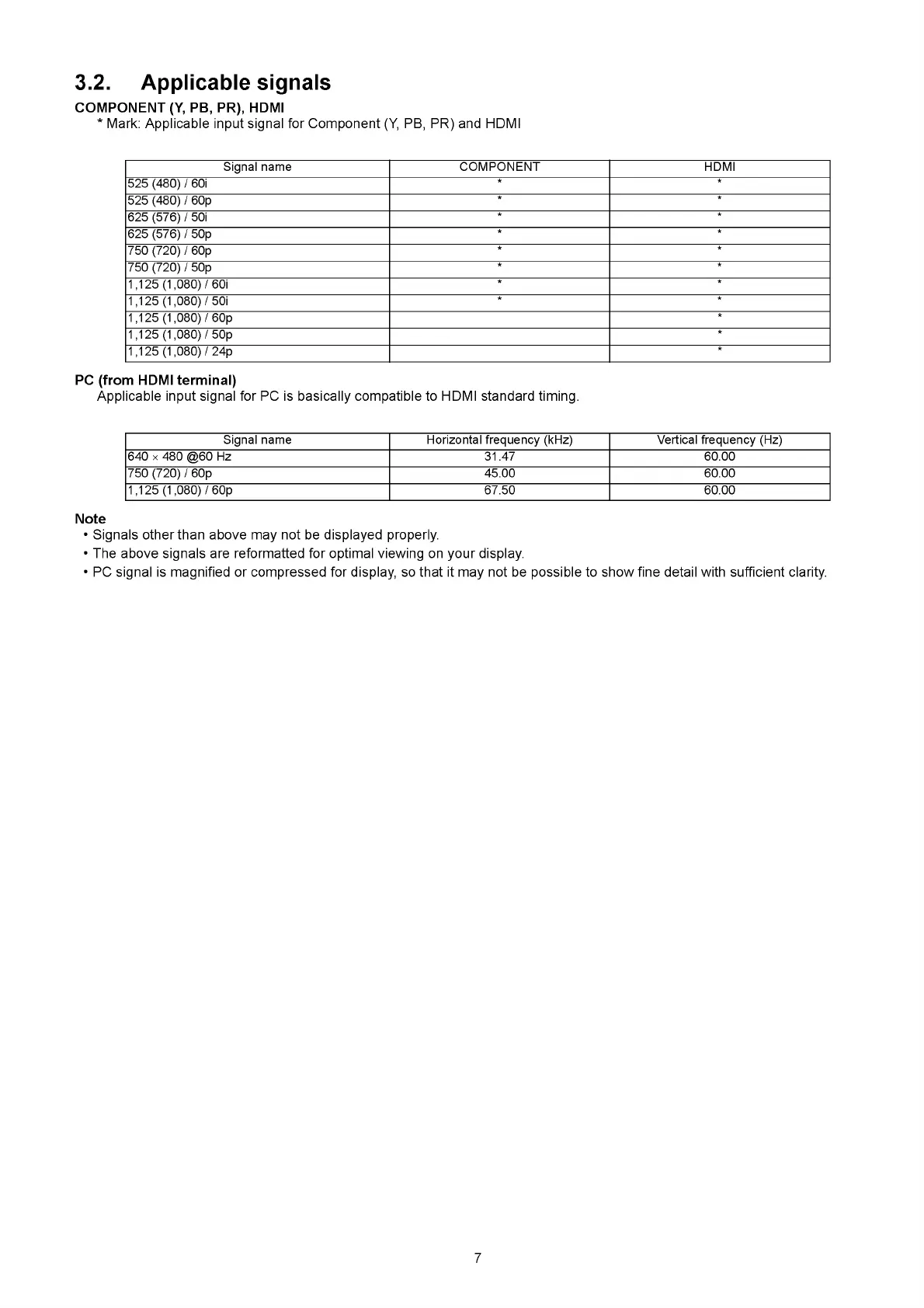

3.2. Applicable signals
COMPONENT (Y, PB, PR), HDMI
* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI
Signal name COMPONENT HDMI
525 (480) / 60i
* *
525 (480) / 60p
* *
625 (576) / 50i
* *
625 (576) / 50p
* *
750 (720) / 60p
* *
750 (720) / 50p
* *
1,125 (1,080) / 60i
* *
1,125 (1,080) / 50i
* *
1,125 (1,080) / 60p
*
1,125 (1,080) / 50p
*
1,125 (1,080) / 24p
*
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 x 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
