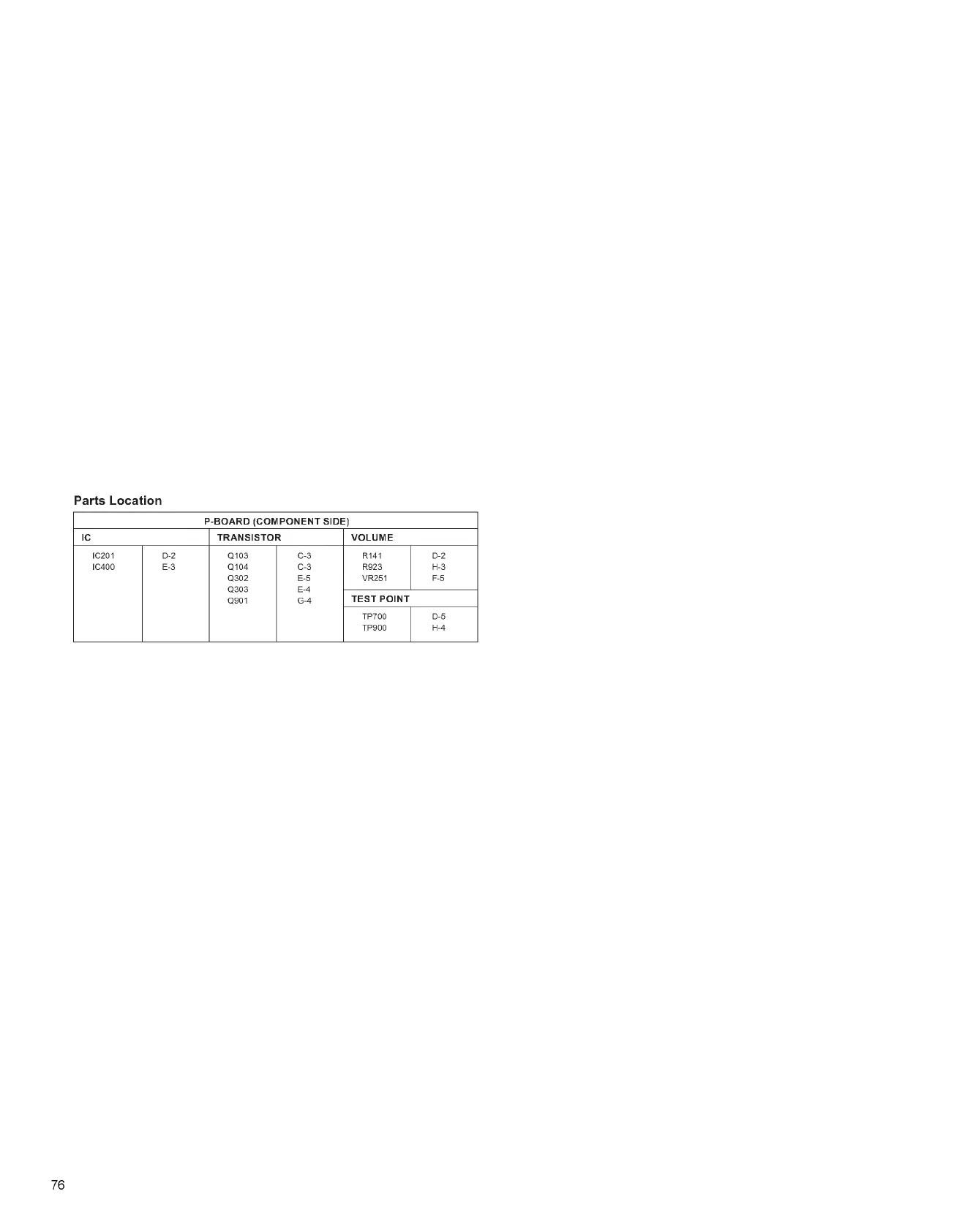

Parts Location
P-BOAR D (C O M PO N ENT SIDE)
IC TR A N SISTO R VOLU M E
IC201 D-2 Q103 C-3 R141 D-2
IC400 E-3 Q104 C-3 R923 H-3
Q302 E-5 VR251 F-5
Q303 E-4
Q901 G-4
TEST POINT
TP700 D-5
TP900 H-4
