English
8

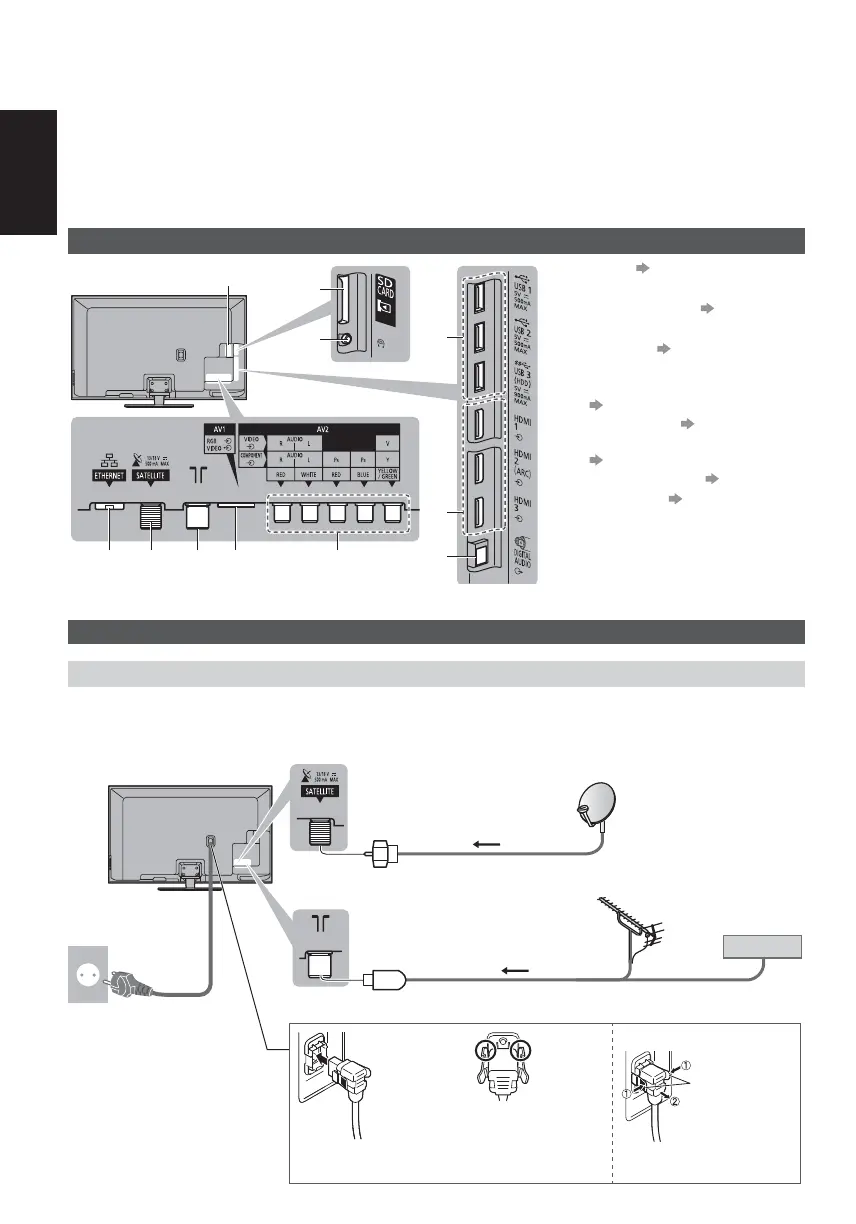

Connections
External equipment and cables shown are not supplied with this TV.
Ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Check the type of terminals and cable plugs are correct when connecting.
Always use a fully wired SCART or HDMI cable.
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor.
Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.
Also read the manual of the equipment being connected.
Terminals
1011 9
4
6
5
2
1
3
87
1
CI slot (p. 11)
2
SD Card slot
3
Headphone jack (p. 11)
4
USB 1 - 3 port
5
HDMI1 - 3 (p. 9, 11)
6
DIGITAL AUDIO
7
AV2 (COMPONENT / VIDEO)
(p. 10, 11)
8
AV1 (SCART) (p. 9)
9
Terrestrial / cable terminal
(see below)
10
Satellite terminal (see below)
11
ETHERNET (p. 10)
Basic connections
Mains lead, satellite dish and aerial
To ensure your satellite dish or aerial is correctly installed, please consult your local dealer. Also please consult the
received broadcasting companies for details.
Cable
DVB-C, DVB-T, Analogue
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Terrestrial aerial
RF cable
DVB-S
Satellite cable
Satellite dish
Mains lead
Push until both side
tabs click
Make sure that
the mains lead is
securely fixed.
To remove from the TV:
tabs
Press both tabs and pull on
mains connector to release
