Panasonic TX-P50VT65B - 9.2 Disassembly Procedures (Volume 6); Cabinet Assy Removal from Plasma Panel

31

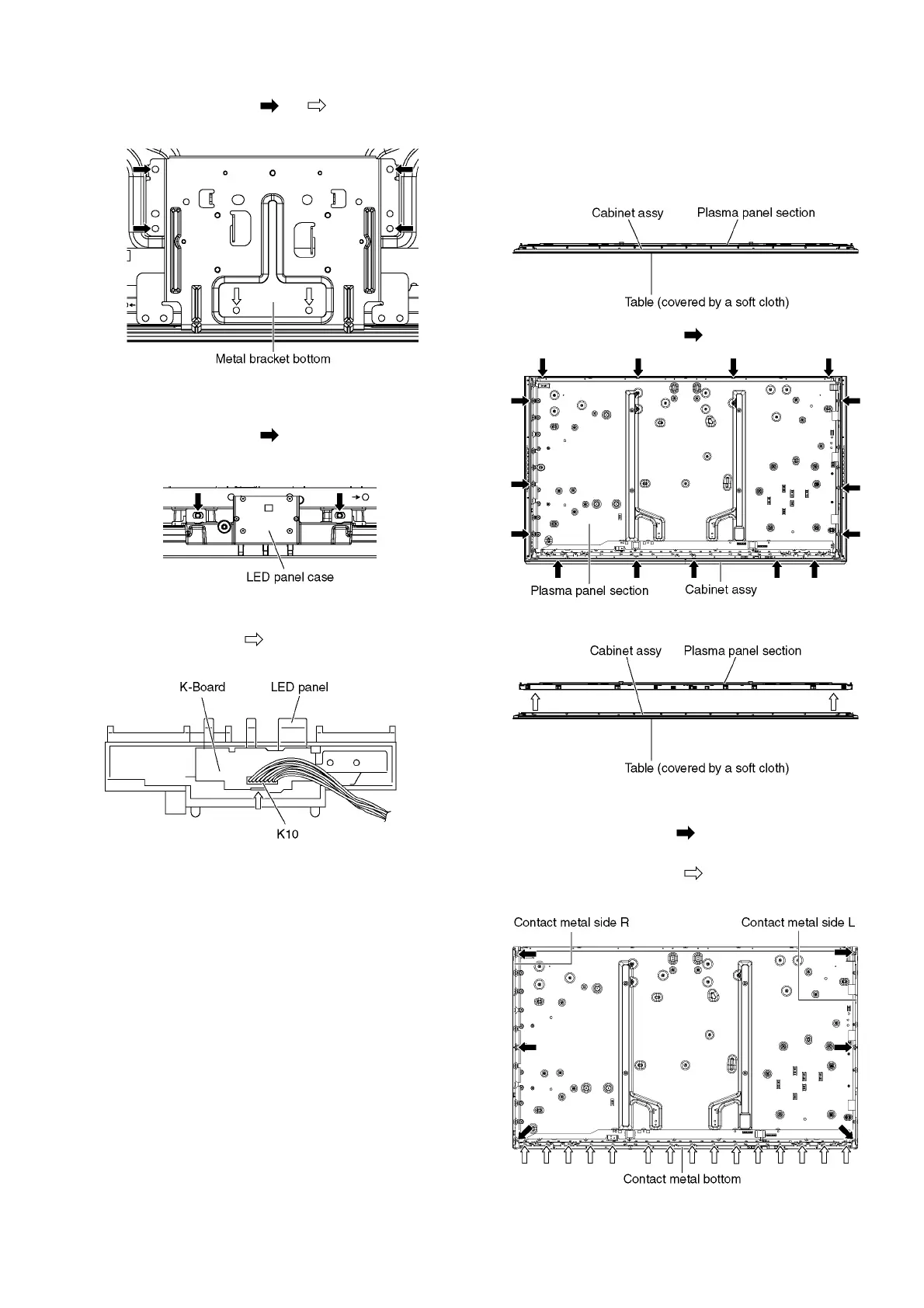

9.2.23. Remove the Metal bracket bottom
1. Remove the screws (×4 , ×2 ) and the Metal
bracket bottom.
9.2.24. Remove the K-Board
1. Remove the screws (×2 ) and remove the LED panel
case.
2. Disconnect the connector (K10).
3. Remove the claw (×1 ) and remove the K-Board.
4. Remove the LED panel.
9.2.25. Remove the Cabinet assy from the
Plasma panel section
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
download.
2. Remove the screws (×15 ).
3. Remove the Cabinet assy from the Plasma panel section.
9.2.26. Remove the Contact metals
1. Remove the screws (×6 ).
2. Remove the Contact metal side (L, R).
3. Remove the screws (×15 ).
4. Remove the Contact metal bottom.
