8.10. Remove the Stand bracket and
the M8 nut inlet metals

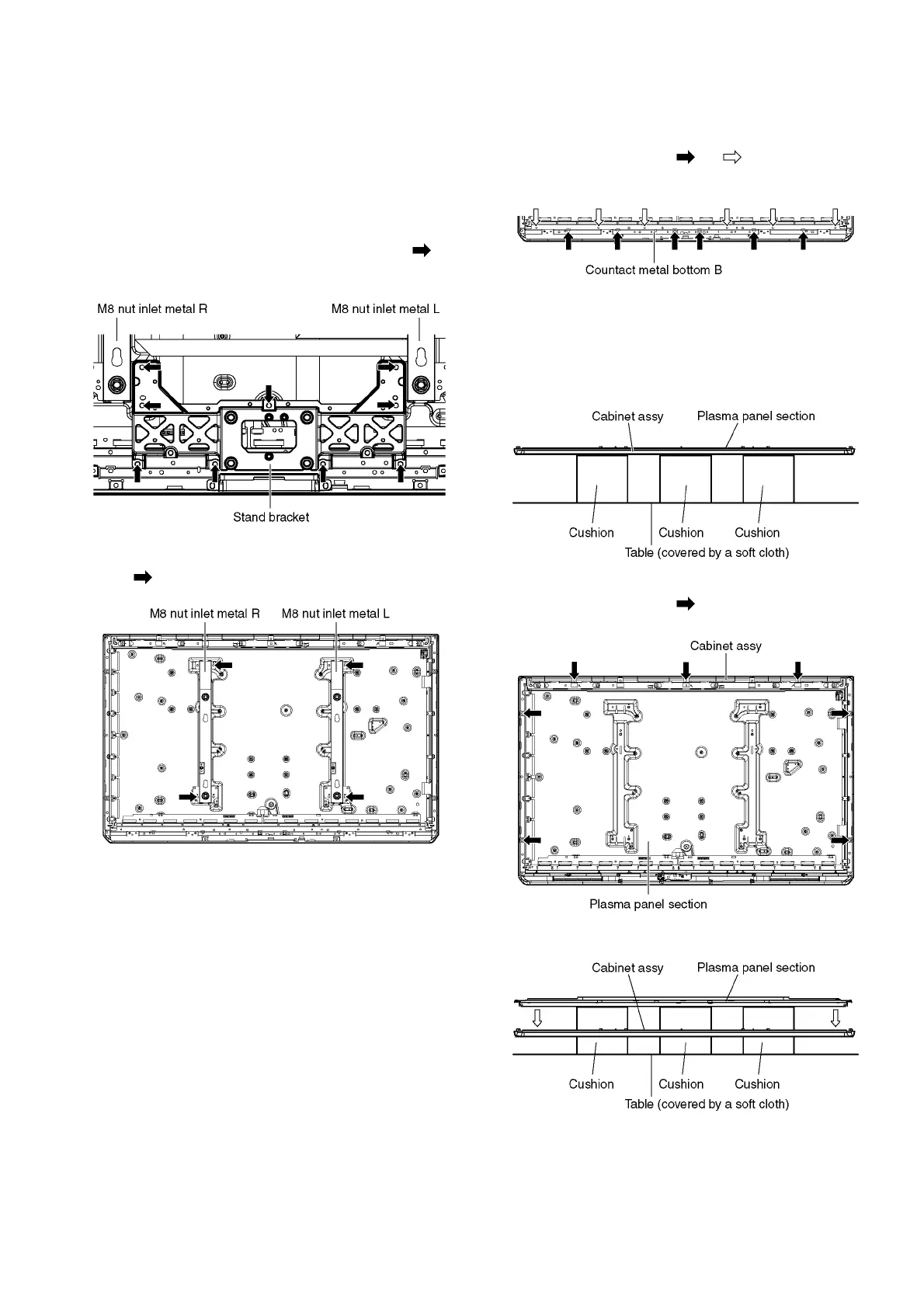

1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Unlock the cable clampers to free the cable.
3. Remove the AC inlet. (See section 8.2.)
4. Remove the Stand bracket fastening screws (×9 ) and
remove the Stand bracket.
5. Remove the M8 nut inlet metals (L, R) fastening screws
(×2 each) and remove the M8 nut inlet metals (L, R).
8.11. Remove the Contact metal bot-
tom B
1. Remove the Stand bracket. (See section 8.10.)
2. Remove the screws (×6 , ×6 ).
3. Remove the Contact metal bottom B.
8.12. Remove the Plasma panel sec-
tion from the Cabinet assy
1. Place the Cabinet assy on a flat surface of a table (cov-
ered by a soft cloth) and a cushion.
2. Remove the Contact metal bottom B. (See section 8.11.)
3. Remove the screws (×7 ).
4. Remove the Plasma panel section from the Cabinet assy.
