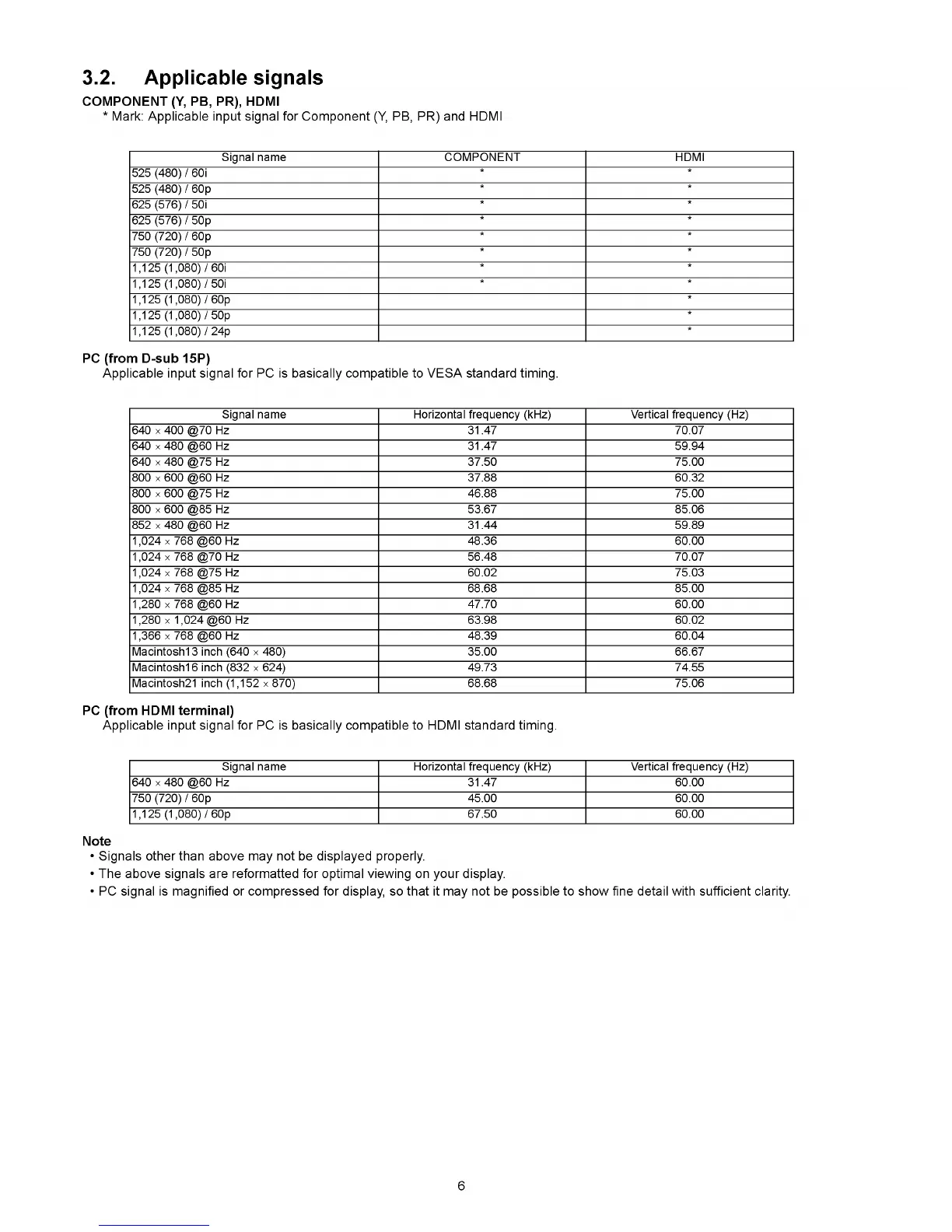

3.2. Applicable signals
COMPONENT (Y, PB, PR), HDMI
* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI
Signal name COMPONENT HDMI
525 (480) / 60i
* *
525 (480) / 60p
* *
625 (576) / 50i
* *
625 (576) / 50p
* *
750 (720) / 60p
* *
750 (720) / 50p
* *
1,125 (1,080) / 60i
* *
1,125 (1,080) / 50i
* *
1,125 (1,080) / 60p
*
1,125 (1,080) / 50p
*
1,125 (1,080) / 24p
*
PC (from D-sub 15P)
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 x 400 @70 Hz 31.47 70.07
640 x 480 @60 Hz 31.47 59.94
640 x 480 @75 Hz 37.50 75.00
800 x 600 @60 Hz 37.88 60.32
800 x 600 @75 Hz 46.88 75.00
800 x 600 @85 Hz 53.67 85.06
852 x 480 @60 Hz 31.44 59.89
1,024 x 768 @60 Hz 48.36 60.00
1,024 x 768 @70 Hz 56.48 70.07
1,024 x 768 @75 Hz 60.02 75.03
1,024 x 768 @85 Hz 68.68 85.00
1,280 x 768 @60 Hz 47.70 60.00
1,280 x 1,024 @60 Hz 63.98 60.02
1,366 x 768 @60 Hz 48.39 60.04
Macintosh13 inch (640 x 480) 35.00 66.67
Macintosh16 inch (832 x 624) 49.73 74.55
Macintosh21 inch (1,152 x 870) 68.68 75.06
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 x 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
