Panasonic TX-PR42G10 - Exploded View and Replacement Parts List; Exploded View and Mechanical Replacement Parts List; Exploded View

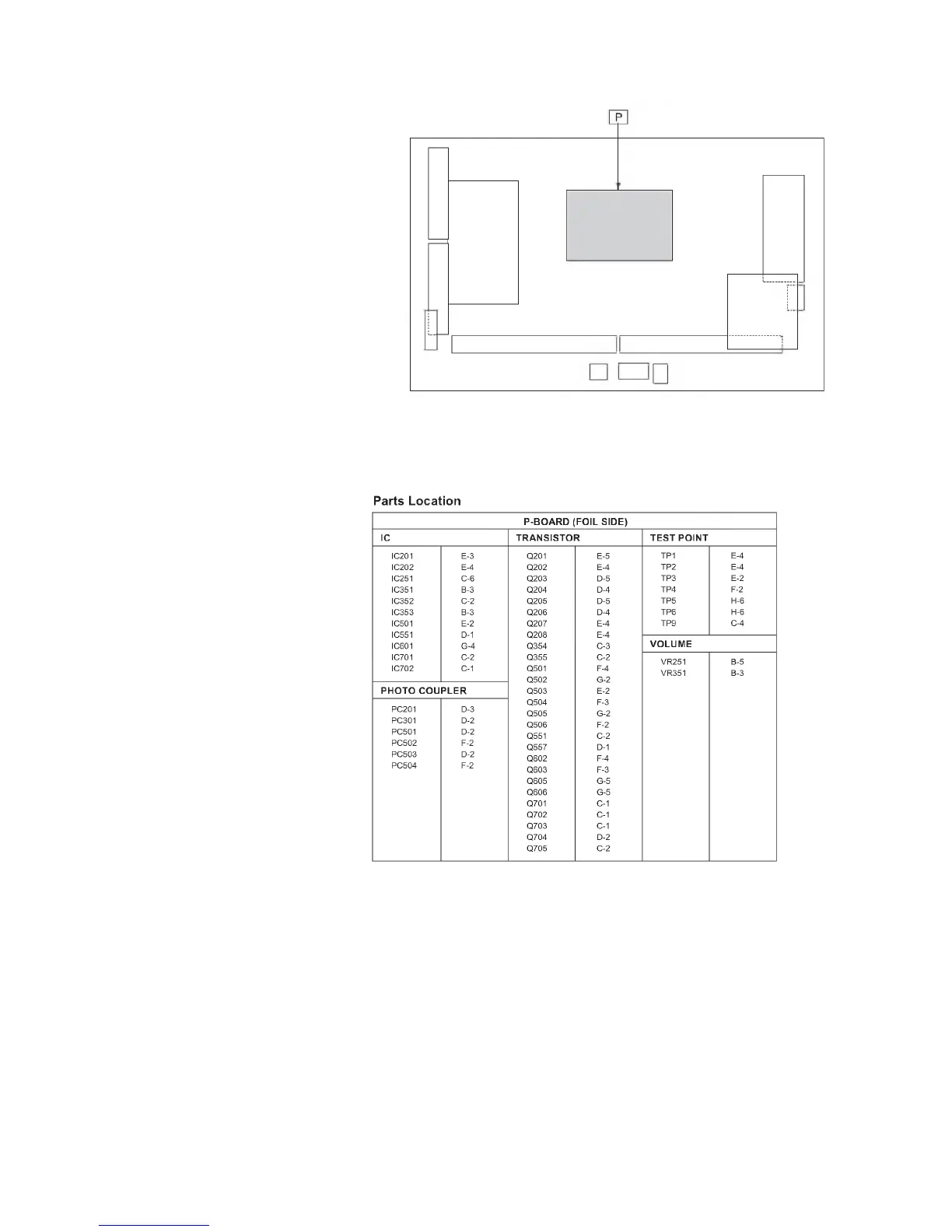

Parts Location
P-BOARD (FOIL SIDE)
1C TRANSISTOR TEST POINT
IC201 E-3 Q201 E-5
TP1 E-4
IC202 E-4 Q202 E-4
TP2 E-4
IC251 C-6 Q203 D-5
TP3 E-2
IC351 B-3 Q204 D-4
TP4 F-2
IC352 C-2 Q205 D-5
TP5 H-6
IC353 B-3 Q206 D-4
TP6 H-6
IC501 E-2 Q207 E-4
TP9 C-4
IC551 D-1 Q208 E-4
IC601 G-4 Q354 C-3
VOLUME
IC701 C-2 Q355 C-2
VR251 B-5
IC702 C-1 Q501 F-4
VR351 B-3
Q502 G-2
PHOTO COUPLER Q503 E-2
Q504 F-3
PC201 D-3
Q505 G-2
PC301 D-2
Q506 F-2
PC501 D-2
Q551 C-2
PC502 F-2
Q557 D-1
PC503 D-2
Q602 F-4
PC504 F-2
Q603 F-3
Q605 G-5
Q606 G-5
Q701 C-1
Q702 C-1
Q703 C-1
Q704 D-2
Q705 C-2
