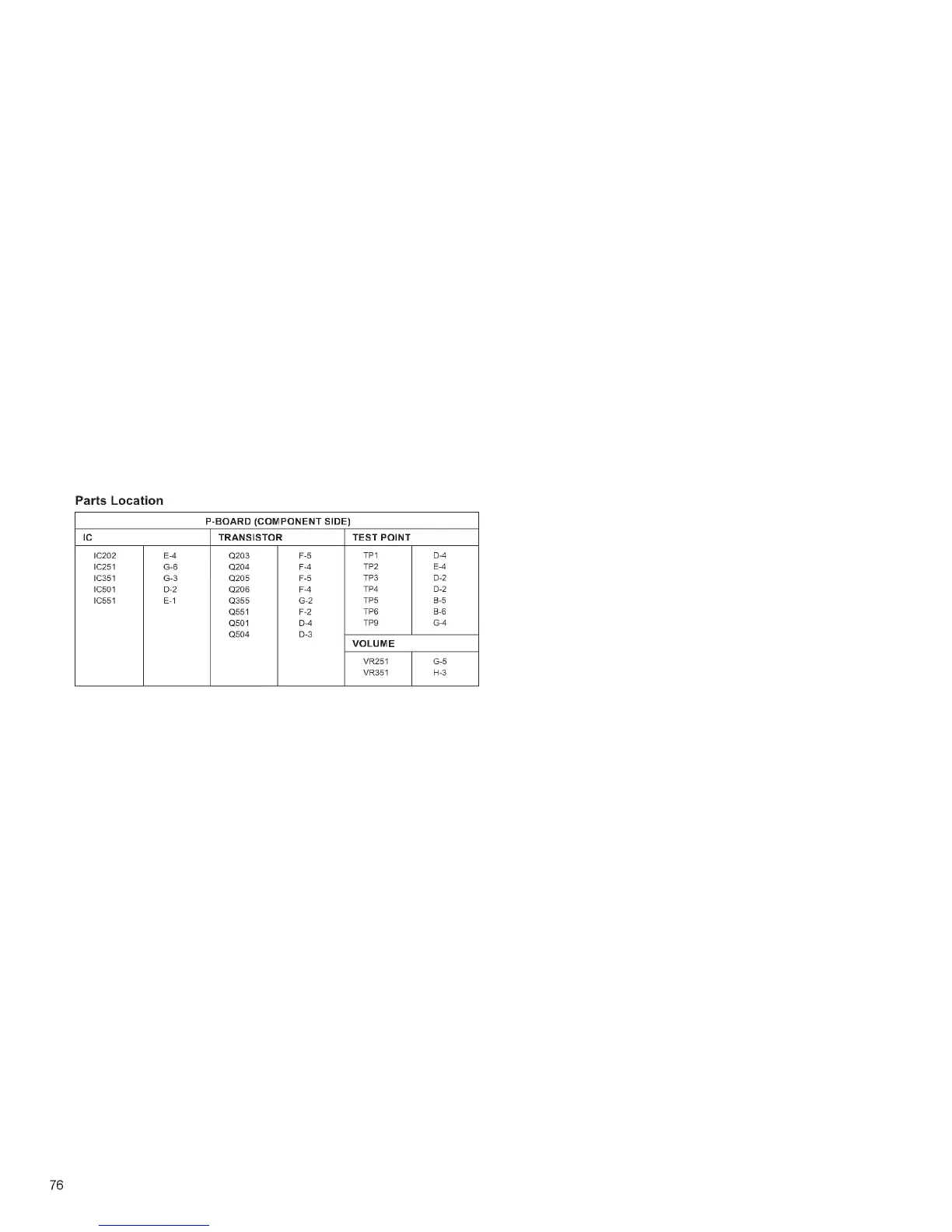

Parts Location
P-BOARD (COMPONENT SIDE)
1C TRANSISTOR TEST POINT
IC202 E-4 Q203 F-5
TP1 D-4
IC251 G-6 Q204 F-4
TP2 E-4
IC351 G-3 Q205 F-5
TP3 D-2
IC501 D-2 Q206 F-4
TP4 D-2
IC551 E-1 Q355 G-2
TP5 B-5
Q551 F-2
TP6 B-6
Q501 D-4
TP9 G-4
Q504 D-3
VOLUME
VR251 G-5
VR351 H-3
