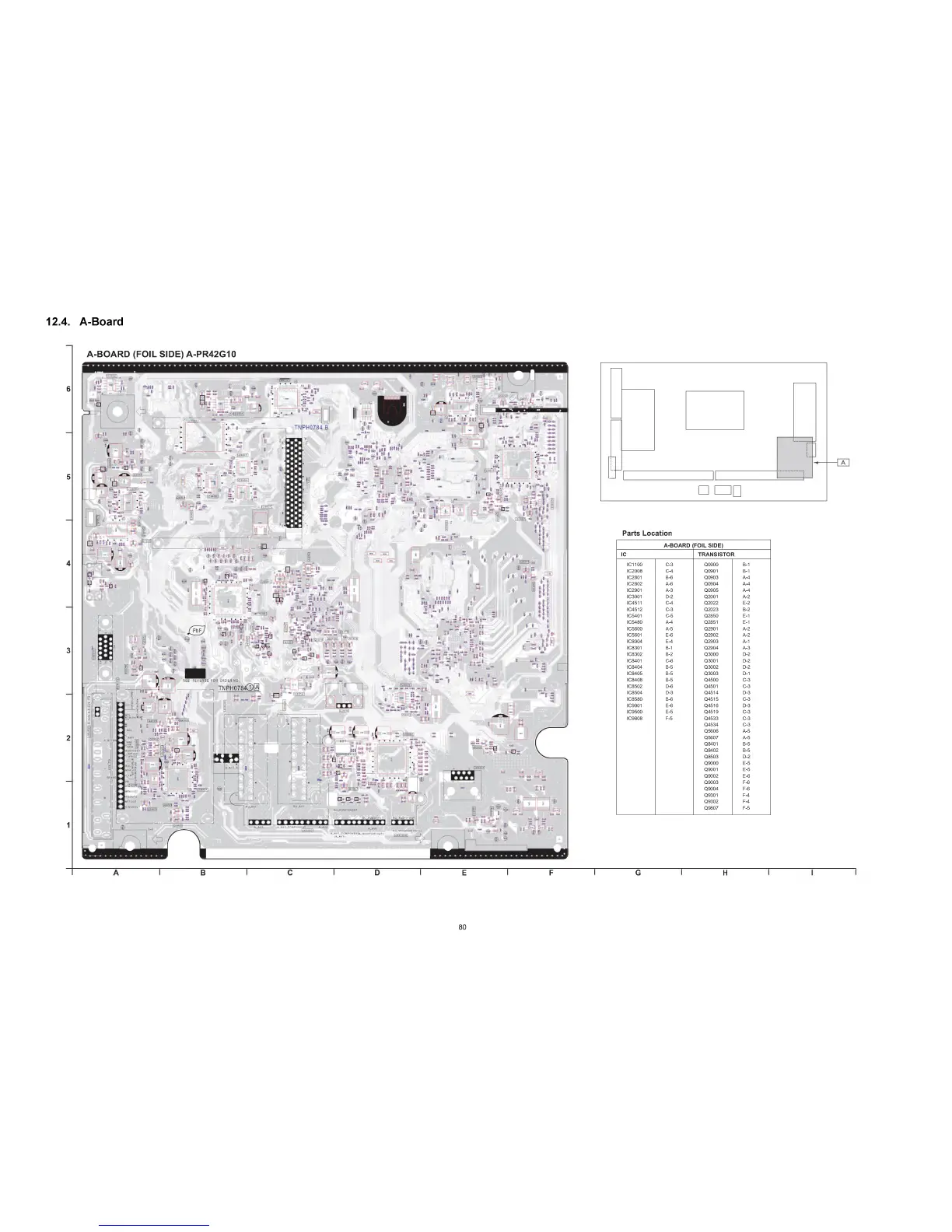

12.4. A-Board
A-BOARD (FOIL SIDE) A-PR42G10
□ □ □
Parts Location
A-BOARD (FOIL SIDE)
IC TRANSISTOR
IC1100
C-3 Q0900 B-1
IC2008 C-4 Q0901 B-1
IC2801 B-6 Q0903 A-4
IC2802 A-6 Q0904 A-4
IC2901 A-3 Q0905 A-4
IC3001 D-2 Q2001 A-2
IC4511 C-4 Q2022 E-2
IC4512 C-3 Q2023 B-2
IC5401 C-5 Q2850 E-1
IC5480 A-4 Q2851 E-1
IC5600 A-5 Q2901 A-2
IC5601 E-6 Q2902 A-2
IC8004 E-4 Q2903 A-1
IC8301 B-1 Q2904 A-3
IC8302 B-2 Q3000 D-2
IC8401 C-6 Q3001 D-2
IC8404 B-5 Q3002 D-2
IC8405 B-5 Q3003 D-1
IC8408 B-5 Q4500 C-3
IC8502 D-6 Q4501 C-3
IC8504 D-3 Q4514 D-3
IC8580 B-6 Q4515 C-3
IC9001 E-6 Q4516 D-3
IC9500 E-5 Q4519 C-3
IC9808 F-5 Q4533 C-3
Q4534 C-3
Q5606 A-5
Q5607 A-5
Q8401 B-5
Q8402 B-5
Q8503 D-2
Q9000 E-5
Q9001 E-5
Q9002 E-6
Q9003 F-6
Q9004 F-6
Q9301 F-4
Q9302 F-4
Q9807 F-5
B
G
6
5
4
3
2
1
E F H
