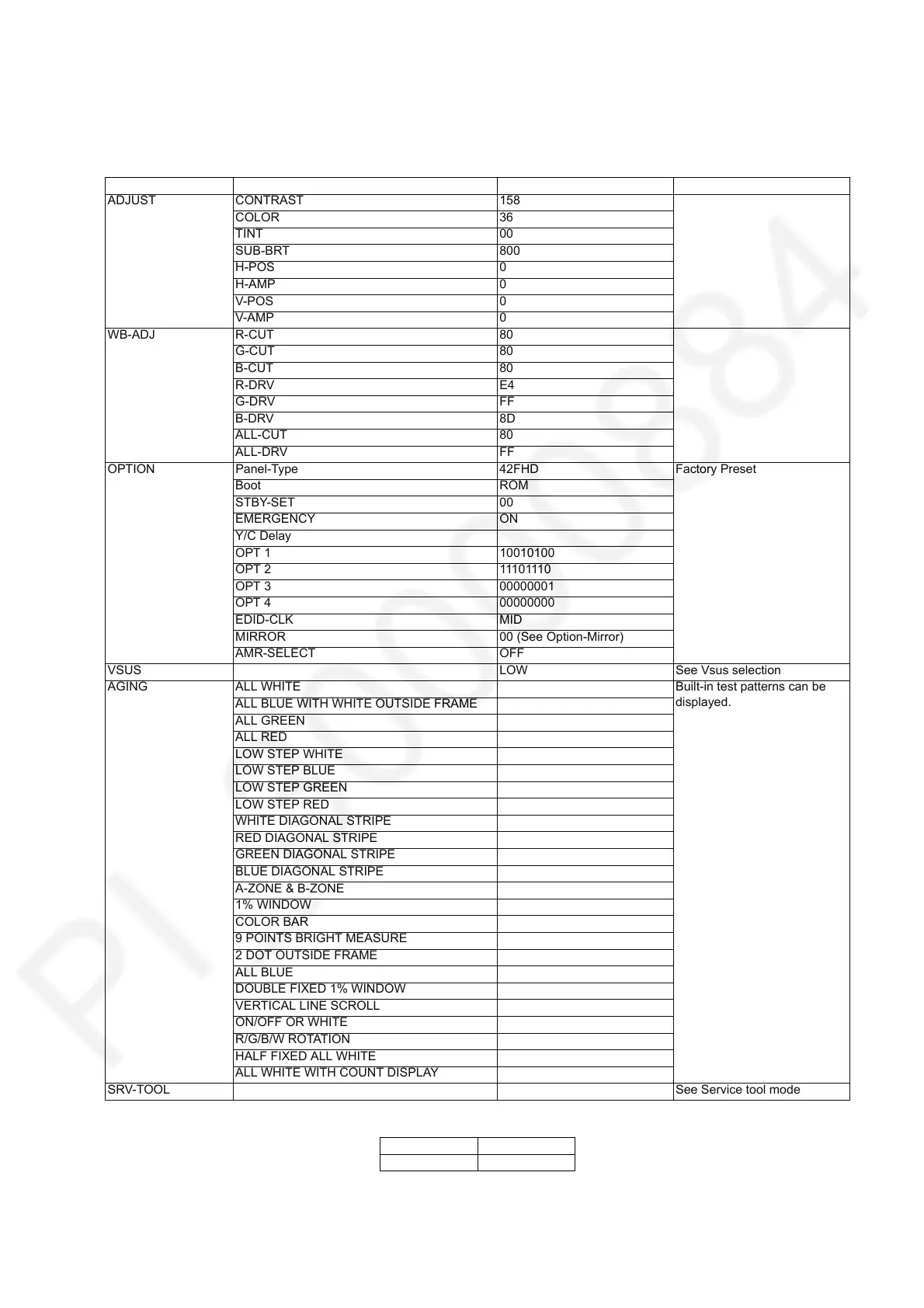

6.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data Remark
ADJUST CONTRAST 158
COLOR 36
TINT 00
SUB-BRT 800
H-POS 0
H-AMP 0
V-POS 0
V-AMP 0
WB-ADJ R-CUT 80
G-CUT 80
B-CUT 80
R-DRV E4
G-DRV FF
B-DRV 8D
ALL-CUT 80
ALL-DRV FF
OPTION Panel-Type 42FHD Factory Preset
Boot ROM
STBY-SET 00
EMERGENCY ON
Y/C Delay
OPT 1 10010100
OPT 2 11101110
OPT 3 00000001
OPT 4 00000000
EDID-CLK MID
MIRROR 00 (See Option-Mirror)
AMR-SELECT OFF
VSUS LOW See Vsus selection
AGING ALL WHITE Built-in test patterns can be
displayed.
ALL BLUE WITH WHITE OUTSIDE FRAME
ALL GREEN
ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
WHITE DIAGONAL STRIPE
RED DIAGONAL STRIPE
GREEN DIAGONAL STRIPE
BLUE DIAGONAL STRIPE
A-ZONE & B-ZONE
1% WINDOW
COLOR BAR
9 POINTS BRIGHT MEASURE
2 DOT OUTSIDE FRAME
ALL BLUE
DOUBLE FIXED 1% WINDOW
VERTICAL LINE SCROLL
ON/OFF OR WHITE
R/G/B/W ROTATION
HALF FIXED ALL WHITE
ALL WHITE WITH COUNT DISPLAY
SRV-TOOL See Service tool mode
Destination
Check sum a734
