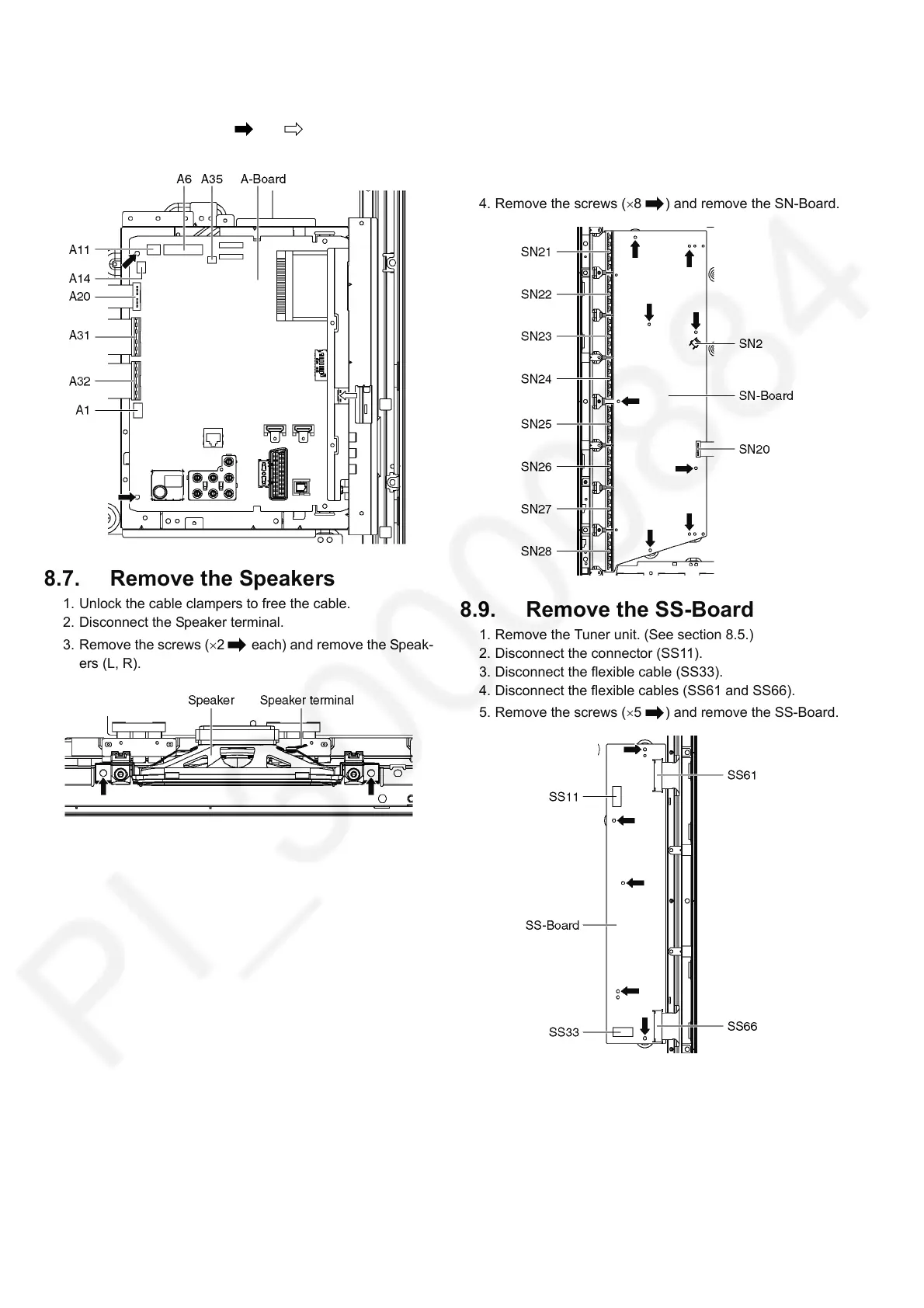

8.6. Remove the A-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Remove the screws (×2 , ×1 ) and remove the A-
Board.
8.7. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Disconnect the Speaker terminal.
3. Remove the screws (×2 each) and remove the Speak-
ers (L, R).
8.8. Remove the SN-Board
1. Disconnect the flexible cables (SN21, SN22, SN23,
SN24, SN25, SN26, SN27 and SN28) connected to the
SN-Board.
2. Disconnect the connector (SN2).
3. Disconnect the flexible cable (SN20).
4. Remove the screws (×8 ) and remove the SN-Board.
8.9. Remove the SS-Board
1. Remove the Tuner unit. (See section 8.5.)
2. Disconnect the connector (SS11).
3. Disconnect the flexible cable (SS33).
4. Disconnect the flexible cables (SS61 and SS66).
5. Remove the screws (×5 ) and remove the SS-Board.
