Parts identification and handling
10
LSQT1048

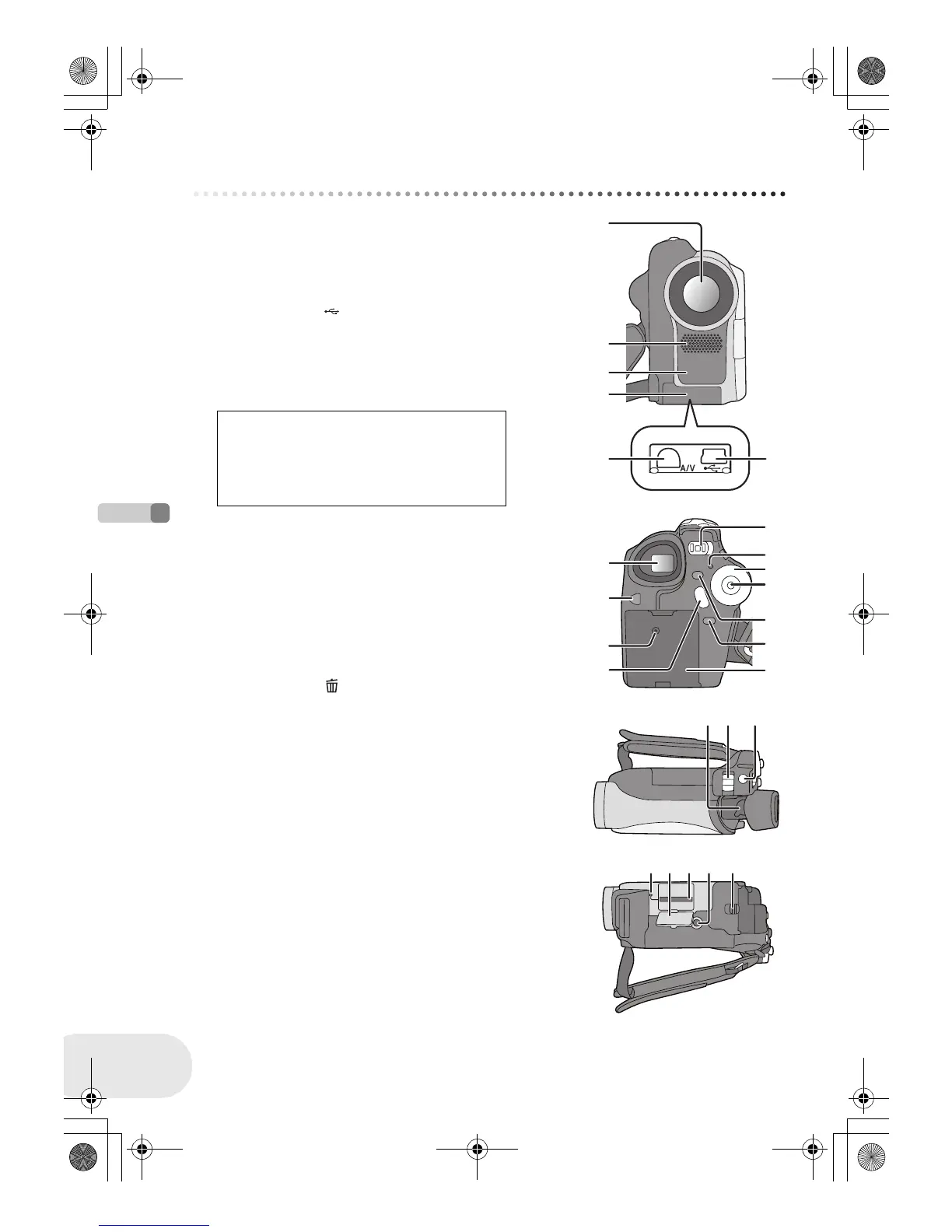

Parts identification and handling
1Lens
2 Microphone (built-in, stereo)
3 White balance sensor (l 60)
4 Terminal cover
5 Audio-video output terminal [A/V] (l 90, 93)
6 USB terminal [ ] (l 94)
≥ When you are operating this unit with a computer, we
recommend an operating environment less than
approximately 30 °C and an operating time of
approximately 30 minutes.
7 Viewfinder (l 13, 37)
8 LCD monitor open button [PUSH OPEN] (l 13)
9 DC input terminal [DC/C.C. IN] (l 22)
10 Recording start/stop button (l 39)
11 Power switch [OFF/ON] (l 23)
12 Status indicator (l 23)
13 Mode dial (l 27)
14 Joystick (l 28)
≥ Move up, down, left or right to select items.
≥ Press the centre to enter the selection.
15 Delete button [ ] (l 67, 78, 80)
16 Menu button [MENU] (l 33)
17 Battery holder (l 20)
18 Eyepiece corrector knob (l 37)
19 Zoom lever [W/T] (l 44)
Volume lever [sVOLUMEr] (l 63)
20 Photo shot button [PHOTO SHOT]
(VDR-D150 only) (l 42)
21 Card access lamp (VDR-D150 only) (l 26)
22 Card slot cover (VDR-D150 only) (l 26)
23 Card slot (VDR-D150 only) (l 26)
24 Tripod receptacle (l 12)
25 Battery release lever [BATTERY RELEASE] (l 20)
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the viewfinder screen.
However, this is not a malfunction and does
not affect the recorded picture.
