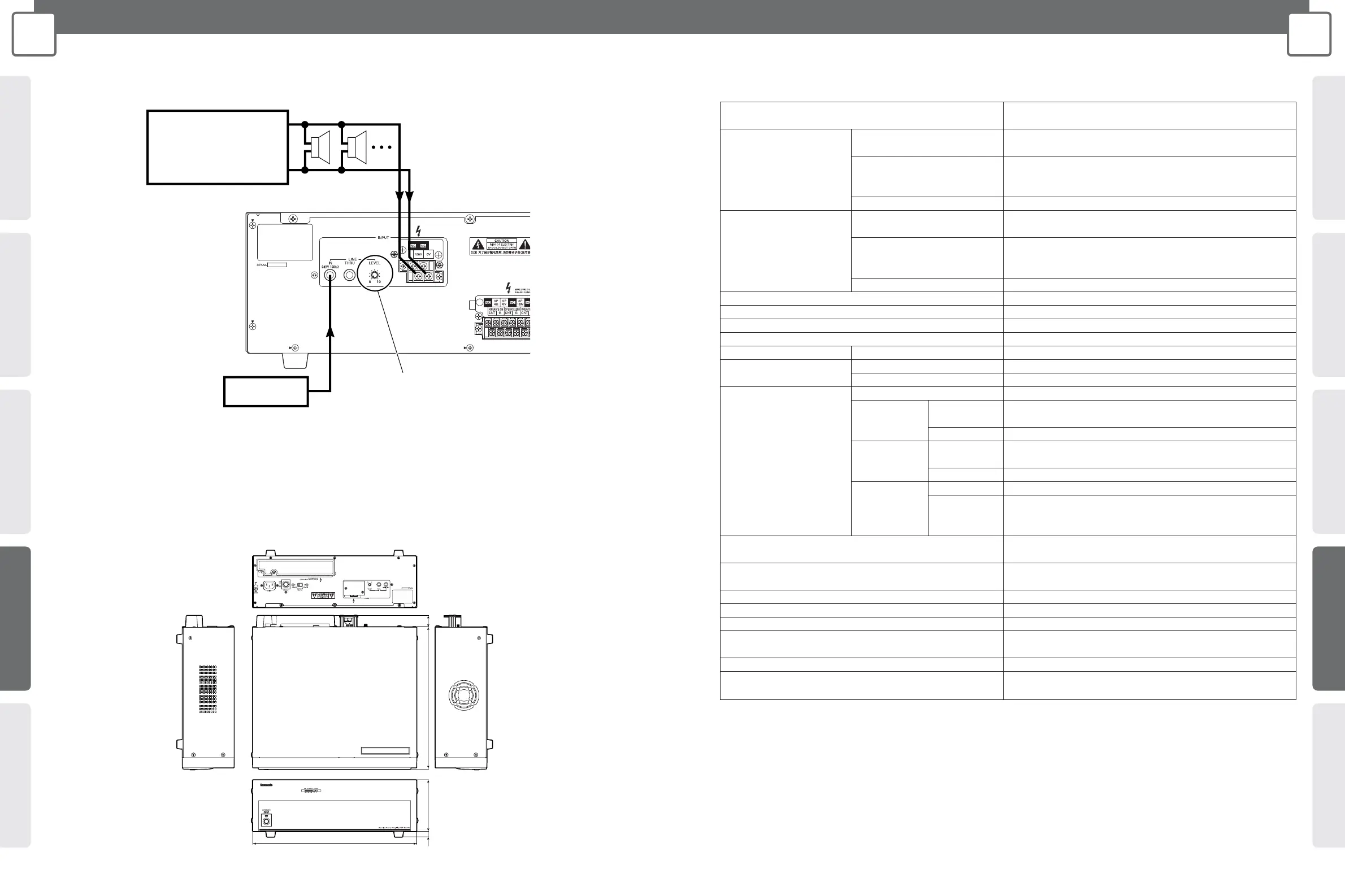

ADJUSTING INPUT VOLUME
• When line-level equipment is connected to LINE IN, use the LEVEL knob on the back of the Amplifier to adjust the volume to
the desired level.
• Input volume cannot be adjusted when power amplifier output is connected to 100 V.
Adjust the output level of the power amplifier in this case.
Note:
• When LINE IN and 100 V are connected to different audio signal sources at the same time, the inputs are mixed.
Power Amplifier
(WA-MA120N, MA240N, etc.)
for High-Impedance Loudspeakers
100 V OUT
Pre-amplifier, etc
LEVEL Knob
Line-level equipment, etc.
LINE OUT
DIMENSIONS
420 Unit: mm
365 2913214
SPECIFICATIONS
0 dB = 1 V
*1 Barrier distance:8.12 mm,Suitable cable gauge:AWG18-14 (Solid) /AWG14 (Stranded)
*2 Barrier distance:6.27 mm,Suitable cable gauge:AWG22-14
*
Dimensions and weight indicated are approximate.Specifications are subject to change without notice.
Power Source AC:110 V - 120 V or 220 V - 240 V (selectable), 50 Hz /60 Hz
DC:+24 V (Battery), M3 screw terminal
*1
Power Consumption Non-operation mode 14 W
(AC) (standby)
Under normal operating 190 W
conditions according to
IEC60065
With rated output signal 730 W
Current Consumption (DC) Non-operation mode 0.1 A
(standby)
Under normal operating 8 A
conditions according to
IEC60065
With rated output signal 20 A
Rated Output 240 W
Frequency Response 50 Hz - 15 kHz
Distortion Less than 1 % at 1 kHz rated output
Signal- to-Noise Ratio More than 80 dB
Volume Control LINE IN 0 dB to – ∞ (off)
Audio signal Input LINE IN Jack 0 dBV, 100 kΩ electronically balanced, Tip-Ring-Sleeve(TRS) phone jack
100 V Terminal 100 V, transformer balanced, M3 screw terminal
*1
Audio signal Output LINE THRU Jack
Through output from LINE input, balanced, Tip-Ring-Sleeve (TRS) phone jack
SP100 V Output Voltage 100 V/42 Ω
Terminal /Impedance
Connector M3 screw terminal
*2
SP70 V Output Voltage 70 V/21 Ω
Terminal /Impedance
Connector M3 screw terminal
*2
SP4 Ω Terminal
Impedance 4 Ω
(Low Impedance
Connector M3 screw terminal
*2
Loudspeaker
Output)
OPERATE ON/OFF Terminals No-voltage make contact input, open voltage:+5 V DC,
short-circuit current:under 1 mA, M3 screw terminal
*2
OPERATE LINK Terminal Open collector output, withstand voltage:+30 V DC,
operating current:under 50 mA, M3 screw terminal
*2
PA OUTPUT LEVEL Meter 5 points, –30/–20/–15/–8/0
Cooling Fan 3 modes;Stop/Low speed/High speed
Operating Temperature 0 °C - +45 °C (32 °F - 113 °F)
Dimensions
420 mm (W) x 146 mm (H) x 404 mm (D){16-17/32" (W) x 5-3/4"(H) x 15-29/32" (D)}
(Height includes rubber feet and depth includes projections such as rear protect cover.)
Weight (Approx.) 15 kg (33.1 lbs)
Finish Panel: Gun Metallic painting (ABS Resin)
Case:brack painting, Munsell N2.5 or equivalent (steel plate)
ACCESSORIES
Operating Instructions (this manual) ...........................1 pc.
Use the following items for installation work.
Power Cords (1.8 m)...................................................2 pcs. (1 flat 3-prong plug type, 1 round 2-prong plug type)
Rack Mounting Brackets .............................................2 pcs.
Tip-Ring-sleeve (TRS) phone plug (gold plated) ........2 pcs.
