Panasonic WV-BL200 - Page 4

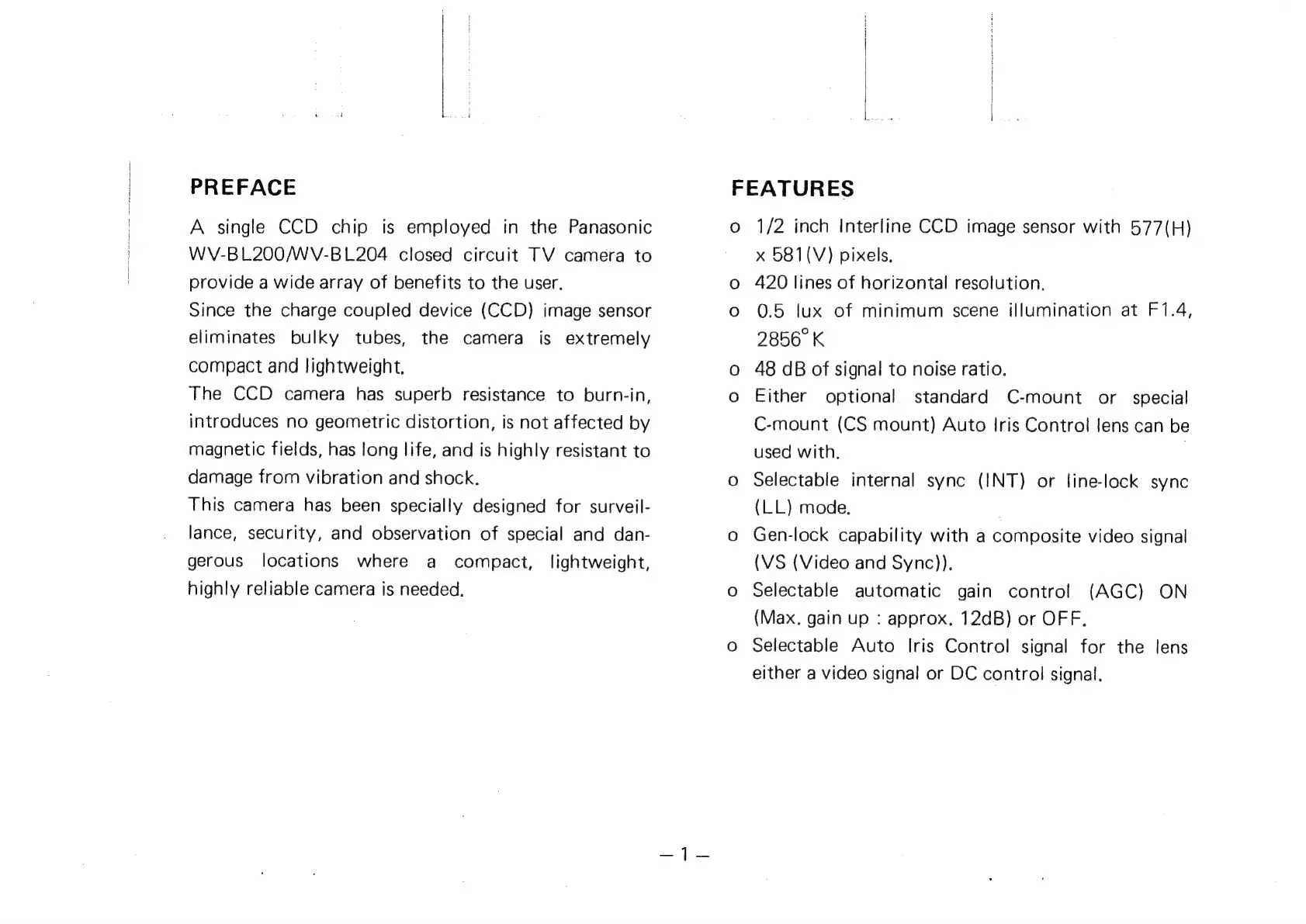

PREFACE
A single CCD chip is employed in the Panasonic
WV-BL200/WV-BL204 closed circuit TV camera to
provide a wide array of benefits to the user.
Since the charge coupled device (CCD) image sensor
eliminates bulky tubes, the camera is extremely
compact and lightweight.
The CCD camera has superb resistance to burn-in,
introduces no geometric distortion, is not affected by
magnetic fields, has long life, and is highly resistant to
damage from vibration and shock.
This camera has been specially designed for surveil-
lance, security, and observation of special and dan-
lightweight,
gerous locations where a compact,
highly reliable camera is needed.
FEATURES
oO
1/2 inch Interline CCD image sensor with 577(H)
x 581(V) pixels.
420 lines of horizontal resolution.
0.5 lux of minimum scene illumination at F1.4,
2856° K
48 dB of signal to noise ratio.
Either optional standard C-mount or special
C-mount (CS mount) Auto Iris Control lens can be
used with. |
Selectable internal sync (INT) or line-lock sync
(LL) mode,
Gen-lock capability with a composite video signal
(VS (Video and Sync)).
Selectable automatic gain control
(Max. gain up : approx. 12dB) or OFF.
Selectable Auto Iris Control signal for the lens
either a video signal or DC control signal.
(AGC) ON
