Panasonic WV-CW964

Printed in Japan
WV-JHCW964C(2P-539)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC PUERTO RICO INC.
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Panasonic System Solutions Company
Unit Company of Panasonic Corporation of North America
Security Systems
Website : www.panasonic.com/security
For Customer Support : call 1.877.733.3689
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Offices
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094
Central : 1707 N. Randal Road, Elgin, IL 60123
Southern : 1225 Northbrook Parkway, Suwanee, GA 30024
Western : 6550 Katella Ave., Cypress, CA 90630
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.

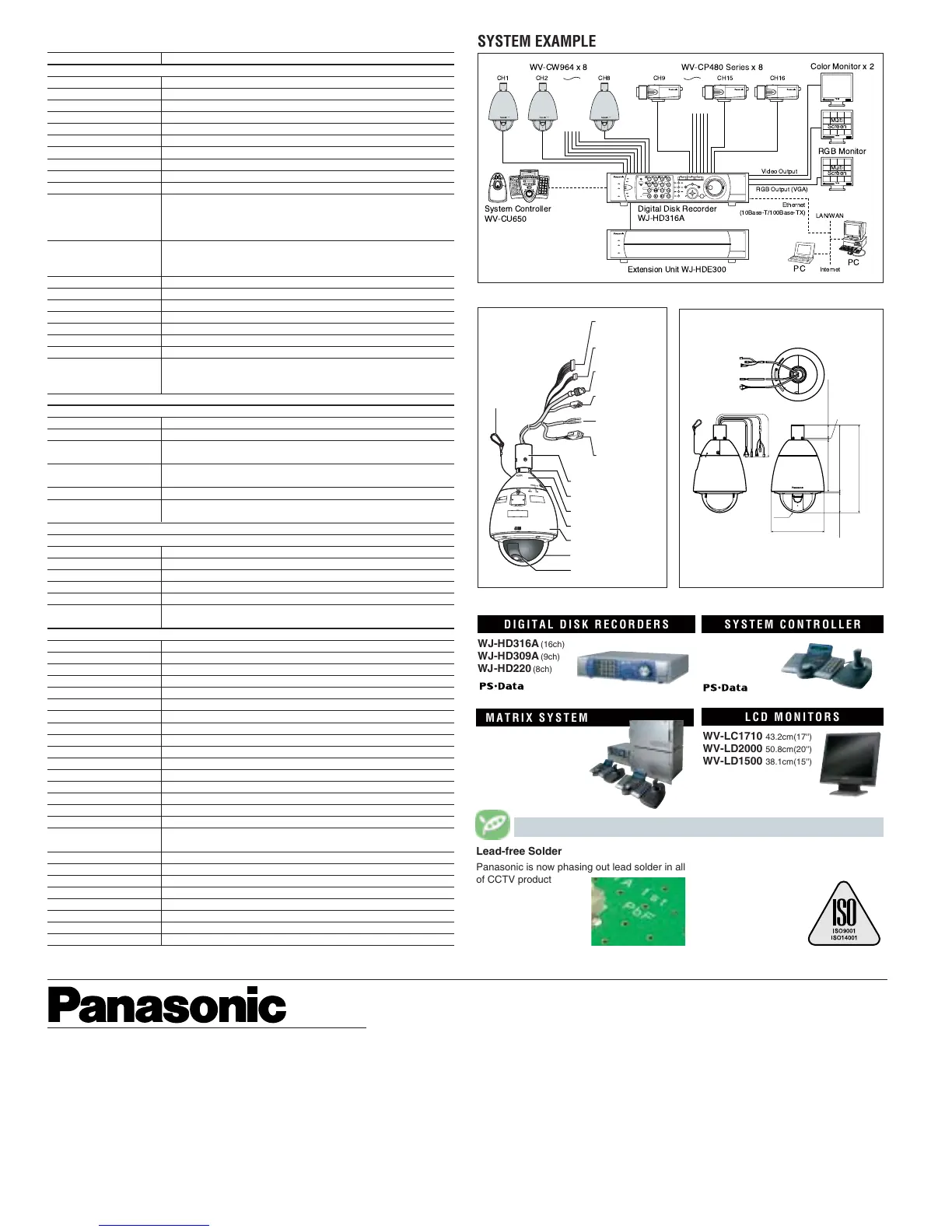

OPTIONAL COMPONENTS & ACCESSORIES
Panasonic Preserving the Environment
Color Monitor x 2
RGB Monitor
Digital Disk Recorder
WJ-HD316A
Extension Unit WJ-HDE300
+
LAN/WAN
Internet
PC
PC
System Controller
WV-CU650
Ethernet
(10Base-T/100Base-TX)
CH1 CH2 CH8 CH9 CH15 CH16
WV-CW964 x 8 WV-CP480 Series x8
Multi
Screen
Multi
Screen
Video Output
RGB Output (VGA)
WV-CW964WV-CW964WV-CW964
SYSTEM EXAMPLE
WV-LC1710 43.2cm(17'')
WV-LD2000 50.8cm(20'')
WV-LD1500 38.1cm(15'')
DIGITAL DISK RECORDERS
SYSTEM CONTROLLER
MATRIX SYSTEM
LCD MONITORS
WJ-HD316A (16ch)
WJ-HD309A (9ch)
WJ-HD220 (8ch)
Lead-free Solder
Panasonic is now phasing out lead solder in all
of CCTV products.
Lead-free board assembly
are identified by the
"PbF" identification with
silkscreen printing on
plates.
ISO14001 Certification
Besides our R&D Division,
Panasonic has achieved the
environmental ISO14001
certification for plants in
Yokohama, Japan, the
Philippines, and in
Suzhou, China.
WV-CU650
SYSTEM 650
8-Pin Alarm
Input Connector
4-Pin Alarm
Output Connector
BNC Video
Output Connector
RS485 Data Port
(for RJ-12)
Attachment Pipe
Upper Base
Rear Sun Shield
Front Sun Shield
Sun Shield
Dome Cover
Lens
Power Cord
for Heater
(for 24V AC)
Power Connector
(for 24V AC)
Camera
Safety Wire
MAJOR OPERATING CONTROLS
REAR REAR
START LOCK
1,700(66-15/16")
WV-CW964
SR160
ø239(ø9-7/16")
60(2-3/8")
232(9-1/8")
300.5(11-13/16")
8.5(5/16")
395.5(15-9/16")
88.5
(3-1/2")
6.5
(1/4")
OPEN LOCK
DIMENSIONS
Model No. WV-CW964
General
Power Requirements 24 V AC, 60 Hz
Power Consumption 17 W (for camera), 62 W (for heater)
Pick-up Device 1/4-type (1/4") interline transfer CCD
Effective Pixels 768 (H) x 494 (V)
Scanning Area 3.65 mm (H) x 2.74 mm (V)
Signal NTSC
Synchronization Internal (INT), multiplexed vertical drive (VD2), line-lock (LL)
Scanning 2:1 interlace
Scanning Frequencies Horizontal: 15.734 kHz, Vertical: 59.94 Hz
Video Output VBS: 1.0 V [p-p] / 75 Ω (BNC plug)
Resolution (Center) Horizontal: 480 TV lines minimum (color NORMAL mode)
540 TV lines typ., 520 TV lines minimum (color HIGH mode)
570 TV lines minimum (black and white)
Vertical: 350 TV lines minimum (Center)
Minimum Illumination 0.5 lux (0.05 fc) (color mode)
0.04 lux (0.004 fc) (black and white mode)
SENS UP: OFF; AGC: HIGH
Dynamic Range 52 dB typ. (SUPER-D III : ON)
S/N Ratio 50 dB minimum (AGC: OFF)
Ambient Operating Temperature -40 °C ~ +50 °C (-40 °F ~ +122 °F)
Ambient Operating Humidity 90 % max. (non-condensation)
*1
Water Resistance IP66 protection from water jets from a nozzle (IEC60529/JIS C 0920)
Dimensions ø239 mm (D) x 395.5 mm (H) (ø9-7/16" (D) x 15-9/16" (H))
Weight approx. 4.7 kg (10.4 lbs.)
Finish Camera: Die cast aluminum, baked on coating (Paint color: Fine silver)
Sun shield: ASA resin, coated (Paint color: Fine silver)
Dome: Clear polycarbonate resin
*1 When power is on continuously, the camera's interior temperature is -10 °C (14 °F) or higher
Pan and Tilt
Panning Range 360 ° endless
Panning Modes Manual, auto, manual position, sequential position
Panning Speed
*2
Manual: approx. 0.065 °/s ~ 120 °/s 8 steps, 16 steps, 64 steps
Preset: approx. 400 °/s
Tilting Range -5 ° ~ 185 ° (horizontal - vertical - horizontal)
(According to the TILT ANGLE)
Tilting Modes Manual, manual position, sequential position
Tilting Speed
*2
Manual: approx. 0.065 °/s ~ 120 °/s 8 steps, 16 steps, 64 steps
Preset: approx. 400 °/s
*2 Actual speed depends on type of controller being used.
Lens
Zoom Ratio 30x (approx. 300x with digital zoom)
Focal Length 3.8 mm ~ 114 mm
Maximum Aperture Ratio 1:1.4 (WIDE) ~ 3.6 (TELE)
Object Distance 1.5 m
Iris Range F1.4 ~ 22, Close
Angular Field of View Horizontal: 1.8 ° (TELE) ~ 52 ° (WIDE)
Vertical: 1.4 ° (TELE) ~ 40 ° (WIDE)
Main Functions
Controller Interface Coaxial Multiplex System, RS485
Control Functions Pan and tilt, zoom and focus, 256 preset positions, home position, patrol
AGC ON (LOW), ON (MID), ON (HIGH), OFF
Title(ID) ON, OFF (Preset ID, camera ID, area title: 16 alphanumeric characters)
Zoom Speed approx. 6.0 seconds (TELE ~ WIDE) in manual mode
Zoom Limit 1x ~ 300x (Over 30x is digital zoom)
Password Lock All menus
Auto Focus MANUAL/AUTO (PAN, TILT, ZOOM linked)
Iris ALC (Adjustable OPEN/CLOSE output target level)/MANUAL
Shutter OFF (1/60), AUTO, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
Electronic Sensitivity Enhancement 32x max. (AUTO or FIX)
Auto Mode OFF, SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK
Auto Pan Key SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK
Digital Flip ON/OFF
SUPER-D III ON/OFF
Motion Detector OFF/MODE1/MODE2
Alarm Input/Output 4 inputs (ALARM IN 1 ~ ALARM IN 4)
2 outputs (ALARM/AUX1, BW/AUX2)
Black and White Mode Switching AUTO/ON/OFF
Privacy Zone ON/OFF (8 zone settings)
Patrol STOP/PLAY/LEARN
Cleaning ON/OFF
Image Hold ON/OFF
Auto Image Stabilizer ON/OFF
Scene Select Setting INDOOR (L)/INDOOR (H)/OUTDOOR (L)/OUTDOOR (H)
Language Setting English, German, French, Italian, Spanish, Russian, Chinese, Japanese
SPECIFICATIONS
Unit: mm (inches)
