Before attempting to connect or operate this pr
oduct, please read these
instructions carefully and save this manual for futur
e use.
The model number is abbreviated in some descriptions in this manual.

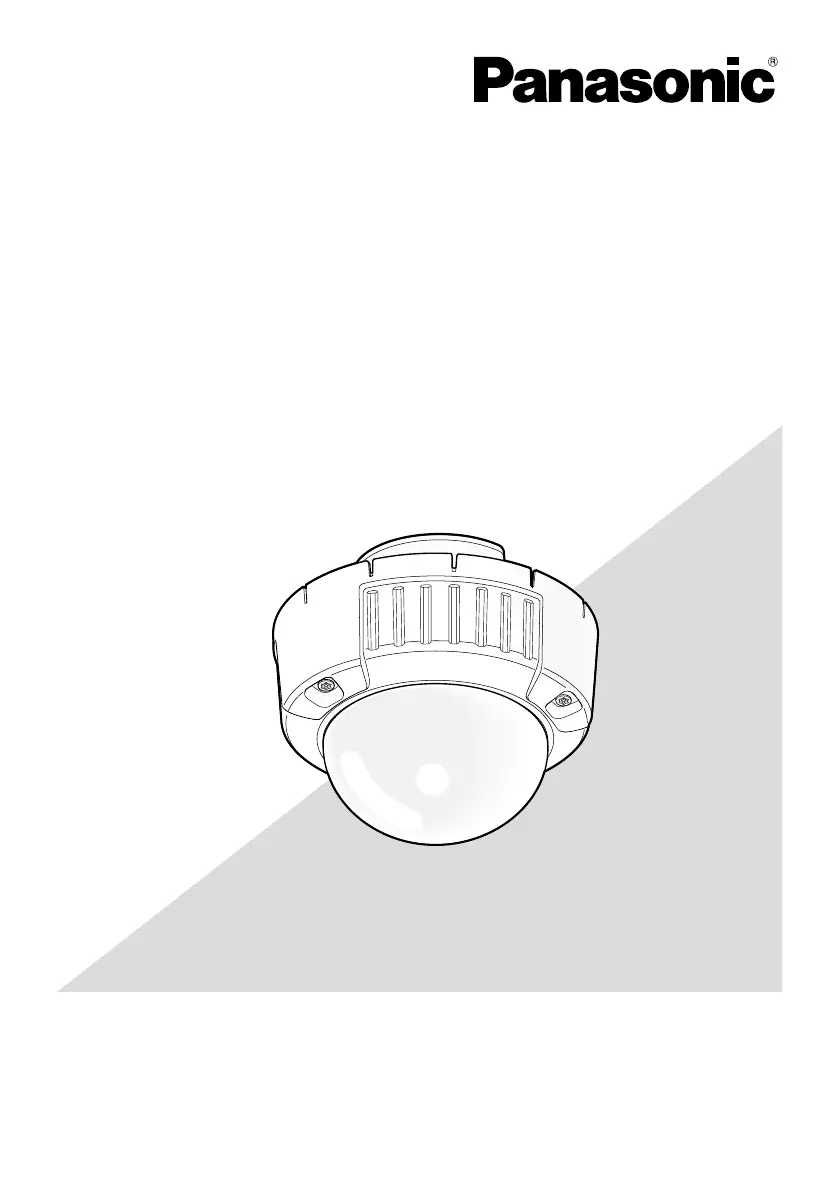

This illustration repr
esents WV
-CW504F
.
Installation Guide
Color CCTV Camera
Model No.
WV
-CW504F
, WV
-CW504FK
WV
-CW504S, WV
-CW504SK
2
Table of Contents
Installation Guide
1
Important Safety Instructions
3
Limitation of Liability
4
Disclaimer of Warranty
4
Table of Contents
5
Preface
6
Features
6
About the User Manuals
7
Trademarks and Registered Trademarks
7
Precautions
8
Precautions for Installation
10
Major Operating Controls and Their Functions
12
Lens Mounting (WV-CW504FK, WV-CW504SK)
14
Preparations
15
Using a Two-Gang Junction Box
16
Camera Installation
19
Adjust the Camera
24
Waterproof Treatment for the Cable Joint Sections
28
Make a Connection
30
How to Install the Heater Unit
32
About the Setup Menus
33
Basic Operation
35
Screen Transition Diagram
37
Troubleshooting
38
Specifications
39
Standard Accessories
41
Optional Accessories
41
