Panasonic WV-CW504F - Make a Connection

30

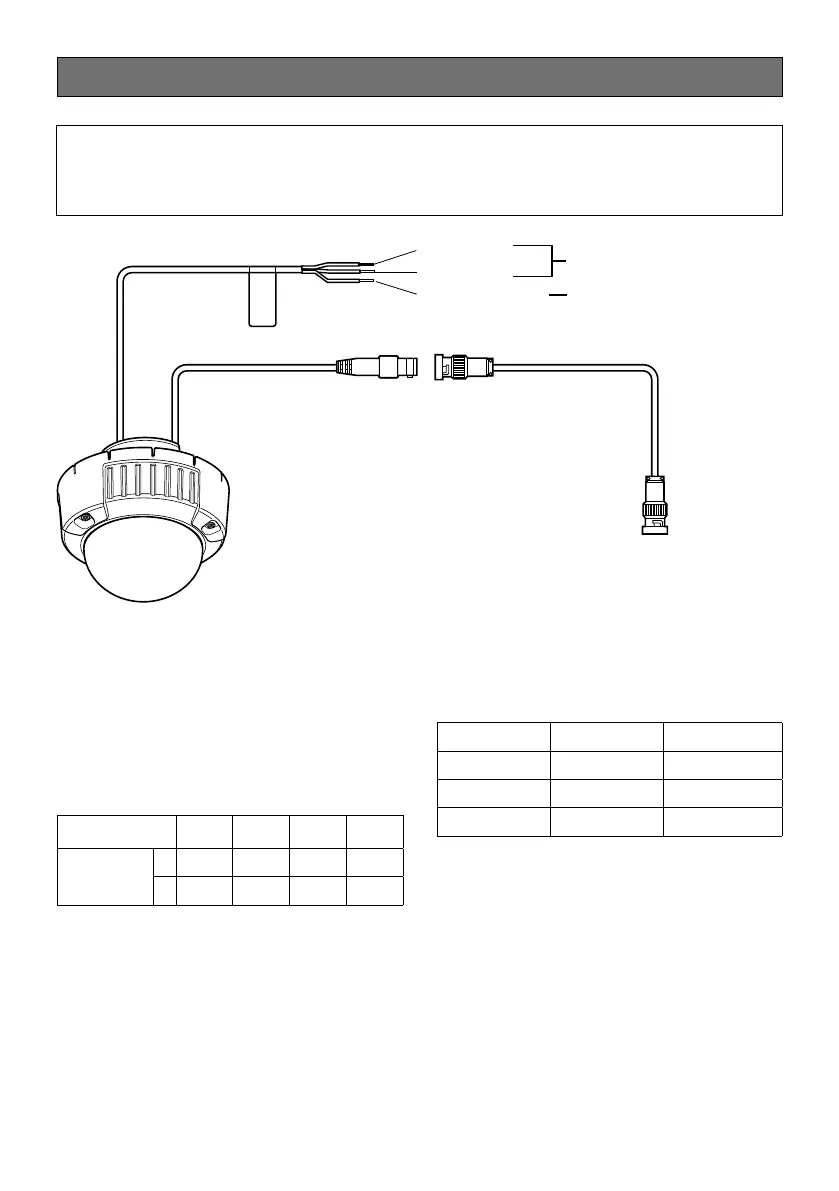

Make a connection
Cautions:
 • ONLYCONNECTWV-CW504TO24VACOR12VDCCLASS2POWERSUPPLY.
 • BesuretoconnectthegroundingleadtotheGNDterminal.
* When using 12 V DC power supply,
the optional heater unit is unavailable.
To 24 V AC/12 V DC*
power supply
Video output cable
(approx. 16 cm {52.5 ft})
Brown (Live)
Blue (Neutral)
Green/Yellow (GND)
To GND (only for 24 V AC)
BNC connector BNC connector
BNC connector
To VIDEO IN
Power cord
(approx. 17 cm
{55.8 ft})
l Video output connection
The video output connector is connected to
the monitor or other system devices with a
coaxial cable (locally procured).
The maximum extensible length is shown in the
table.
Type of coaxial
cable
RG-59/U
(3C-2V)
RG-6/U
(5C-2V)
RG-11/U
(7C-2V)
RG-15/U
(10C-2V)
Recommended
maximum cable
length
m 250 500 600 800
ft 825 1 650 1 980 2 640
l Power connection
Precaution:
The following connections should be made
by qualified service personnel or system
installers in accordance with NEC 725-51.
• Wire colors & functions
Camera power cord
Wire color 24 V AC 12 V DC
Brown 24 V AC (L) Positive
Blue 24 V AC (N) Negative
Green/yellow To GND –
Cautions:
 • Be sure to connect the GND (grounding)
lead of the camera and grounding terminal
of the power supply when using a 24 V AC
power source.
 • Shrinkingthecable-entrysealisaonetime
procedure. Do not shrink the cable-entry
seal until it has been ascertained that unit
is functioning.
ONLY CONNECT THIS TO 24 V AC or 12
V DC CLASS 2 POWER SUPPLY.
