21

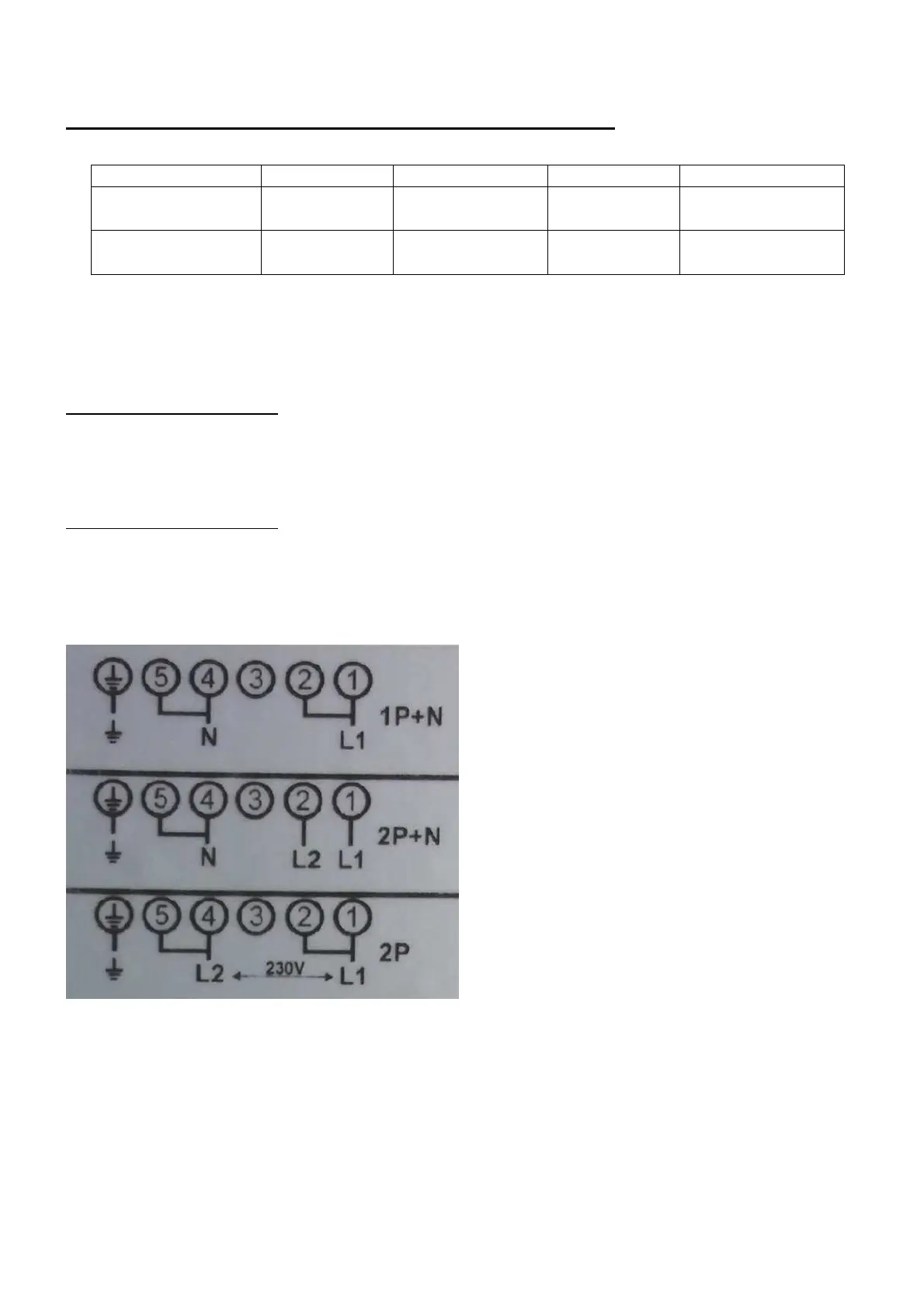

CONNECTION OF THE HOB FOR PI3200 AND PI3300:
* calculated with the simultaneous factor following the standard EN 60 335-2-6
Connection of the hob
For the various kinds of connection, use the brass bridges which are in the box next the terminal
Monophase 230V~1P+N
Put the 1
st
bridge between terminal 1 and 2, the 2
nd
between 4 and 5.
Attach the earth to the terminate “earth”(Yellow/Green), the neutral N to terminal 4 or 5 (Blue and
Grey), the Phase L to one of the terminals 1 or 2 (Brown and Black).
Biphase 400V~2P+N
Put a bridge between terminal 4 and 5.
Attach the earth to the terminate “earth” (Yellow/Green), the neutral N to terminal 4 or 5 (Blue and
Grey), the Phase L1 to the terminals 1 (Brown) and the Phase L2 to the terminal 2 (Black).
See connection diagram on the device label
Mains Connection Cable diameter Cable Protection calibre
230V~ 50/60Hz 1 Phase + N 3 x 2,5 mm²
H 05 VV - F
H 05 RR - F
25 A *
400V~ 50/60Hz 2 Phases + N
4 x 1.5 mm²
H 05 VV - F
H 05 RR - F
16 A *
