MAC Mode example

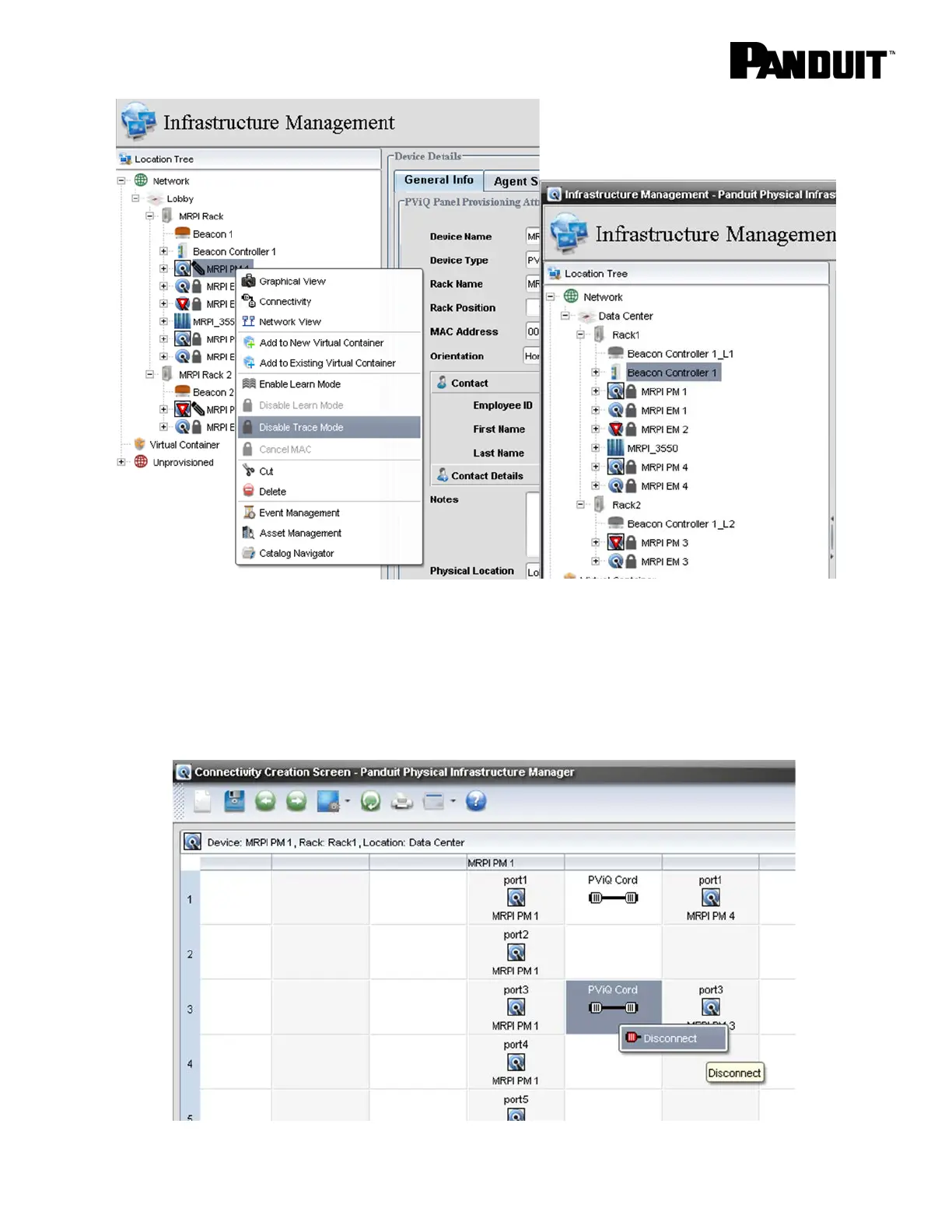

When a MAC is issued between any 2 panels in racks where beacons are located, the beacons
illuminate in the data center and SmartZone also reflects it in the GUI. For example, a disconnect
request is made between a panel in rack 1 and a panel in rack 2 and the resultant SmartZone beacon
response is shown.
