PAR T GOLF DOUBLE EAGLE INSTALLATION AND MAINTENANCE MANUAL
SECTION C THE FRAME C7
STRETCH SCREEN TO CANOPY AND FRAME
For proper screen tension, the pre-cut shock cord must be used as described here. After threading each
piece, readjust the cord as needed until the tension is even.
STEP 10
Attach screen to bottom of
frame
–
Attach by using the snap connector belts provided.
STEP 11
Attach screen to sides of
frame assembly
–
Locate two pre-cut lengths of shock cord labeled SIDE. Tie shock cord to
the upper frame corner piece at Point F.
–
Using "Method C", unite one side of screen and one side of canopy by
threading cord through wire clips and around the upright frame components
(Points F to E).
–
Repeat same procedures on opposite side of screen, Points G to H.
–
Readjust all shock cord so screen is slightly taught.
STEP 12
Attaching skirt portion of
screen
–
Locate shock cord at each end of dark flap or skirt.
–
Slide cord under side of frame, lifting frame if necessary.
–
Secure cord to the bars Item #7 and #8.
–
Place the two 2 and 3/8ths inch foam pads under the skirt.

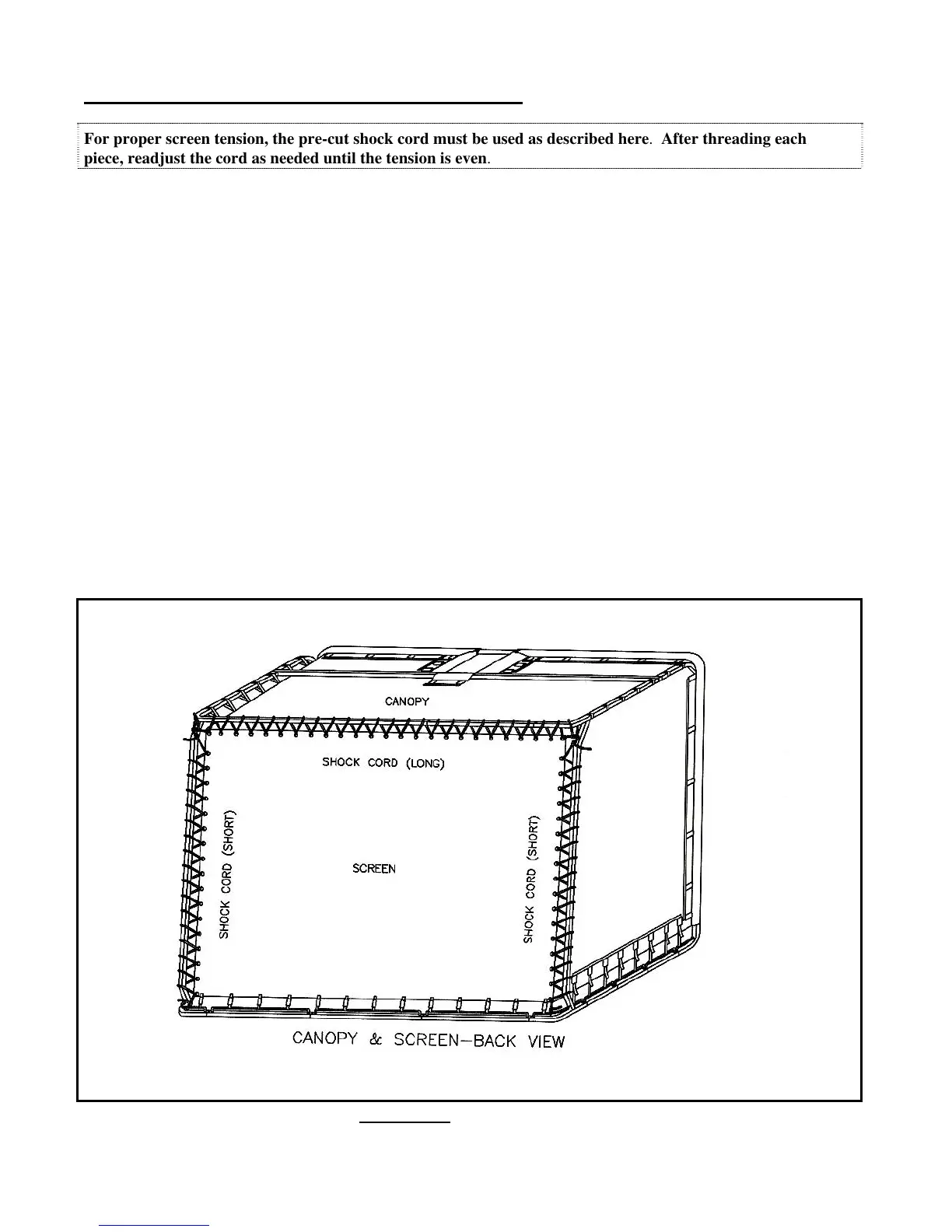

Drawing 5F Assembled Screen
