PAR T GOLF DOUBLE EAGLE INSTALLATION AND MAINTENANCE MANUAL
SECTION D THE ELECTRONICS
D3
Chapter 6 PAR T OPTISENSE™
WARNING: NEVER CONNECT OR DISCONNECT ELECTRONIC CABLES WHILE POWER IS ON TO CONTROL
CONSOLE. DOING SO MAY SERIOUSLY DAMAGE YOUR EQUIPMENT AND VOID YOUR WARRANTY.
INSTALLING THE PAR T OPTISENSE™
STEP 1 Suspend Optisense from
Frame
Drawing 6A
–
Suspend Optisense from upper front rounded portion of the frame,
using inverted “C” shaped flange on one end and leave it suspended.

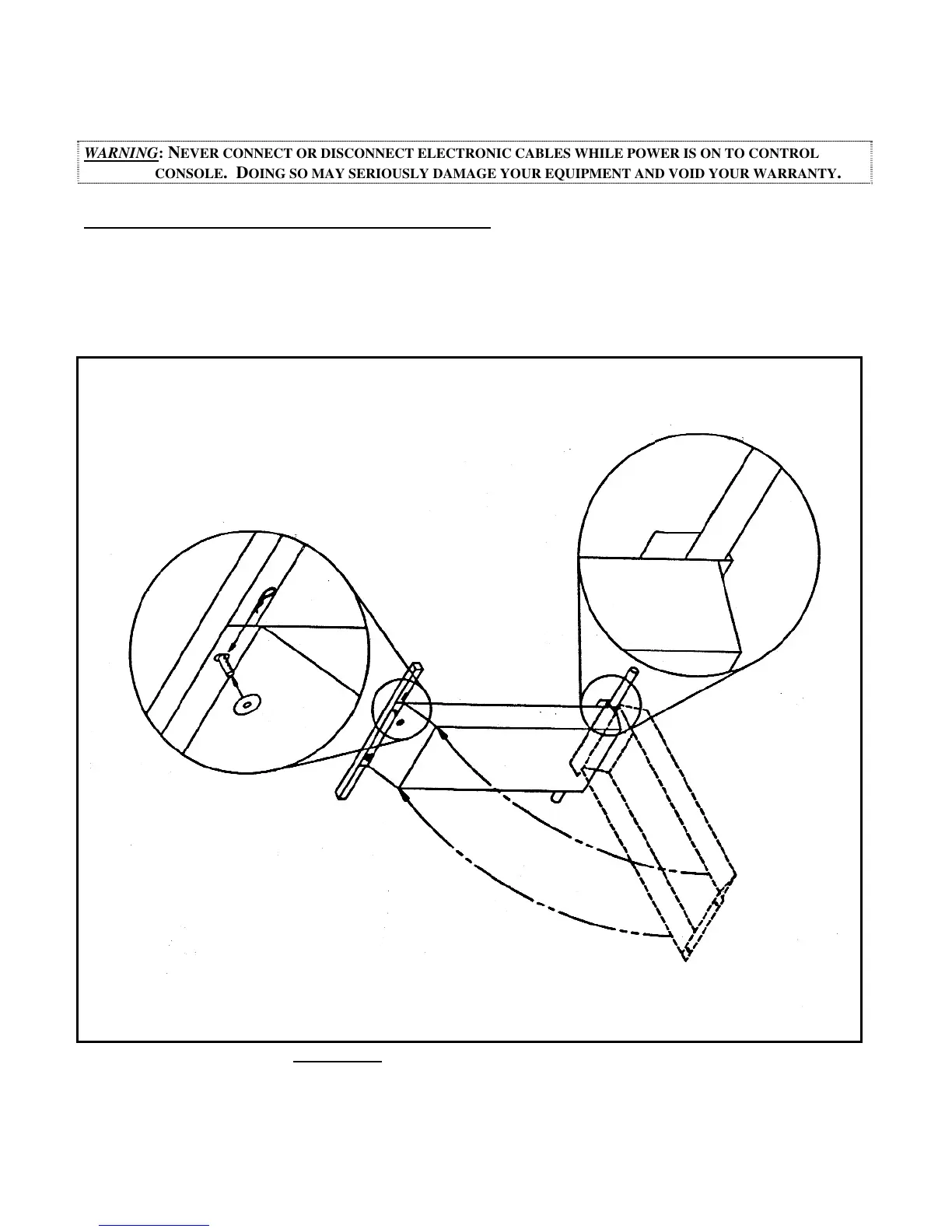

Drawing 6A Attaching the Optisense to the Frame
To Next Page
