PAR T GOLF DOUBLE EAGLE INSTALLATION AND MAINTENANCE MANUAL
SECTION D THE ELECTRONICS
D11
CONNECT PROJECTOR CABLES
STEP 6 Connect SVGA Video Cable
Drawing 8B
–
The control cables were previously installed to the projector mount.
Connect the 15 pin D-SUB connector to the input terminal labeled
COMPUTER 1 IN or RGB INPUT 1 as shown.
Connect Auxiliary Video
Cable
–
Plug the auxiliary video cable into the video connector as shown in
Drawing 8B (optional).
STEP 7
Connect Power
–
Plug the AC power cord from the projector into an outlet.

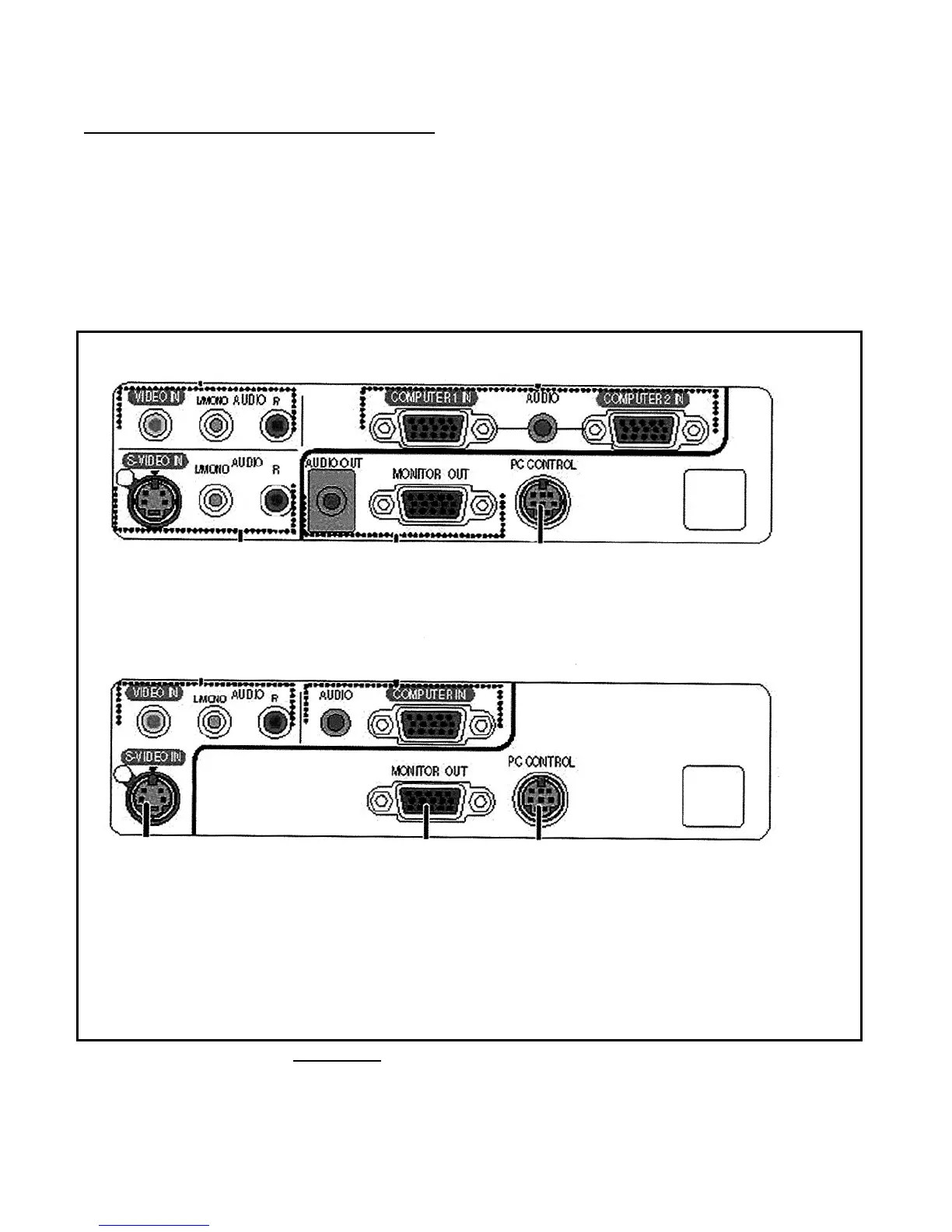

Drawing 8B Projector Cable Connection Diagram
To Next Page
