PAR T GOLF DOUBLE EAGLE INSTALLATION AND MAINTENANCE MANUAL
SECTION A THE DOUBLE EAGLE ELITE
A3
Chapter 2 AREA, ELECTRICITY AND LIGHTING REQUIREMENTS
PLAYING AREA
The minimum playing area for the Double Eagle is 14’ x 20’ x 10’ (4267 x 6096 x 3048 mm). It is
recommended, however, that the playing area be 15’ x 20’ x 10’ (4572 x 6096 x 3048 mm). Although the larger
playing area is not required, it aids in the maintenance and set-up of the simulator.
1. Playing Area
–
The standard platform size is 14' X 20' X 3” (4267 x 6807 x 76 mm)
Allow one foot of space on left side
of platform (Optional)
–
One foot of space on the left side of the platform is recommended to
expand the golfer’s swinging area and for equipment servicing.
Allow one foot of space in back of
platform. (Optional)
–
A minimum distance of one foot, for working space is recommended
between the platform's screen-end and the back wall.
A ten foot seating area enhances
play (Optional)
–
If desired, a pleasant sofa corner or snack bar, can be added in front of
the platform to provide a place to rest between shots.
2. Playing area ceiling height (10’)
–
The ceiling above the platform should be 10’. A typical golfer’s swing
reaches heights of nearly 9’ 6” when standing on the 3 inch platform.

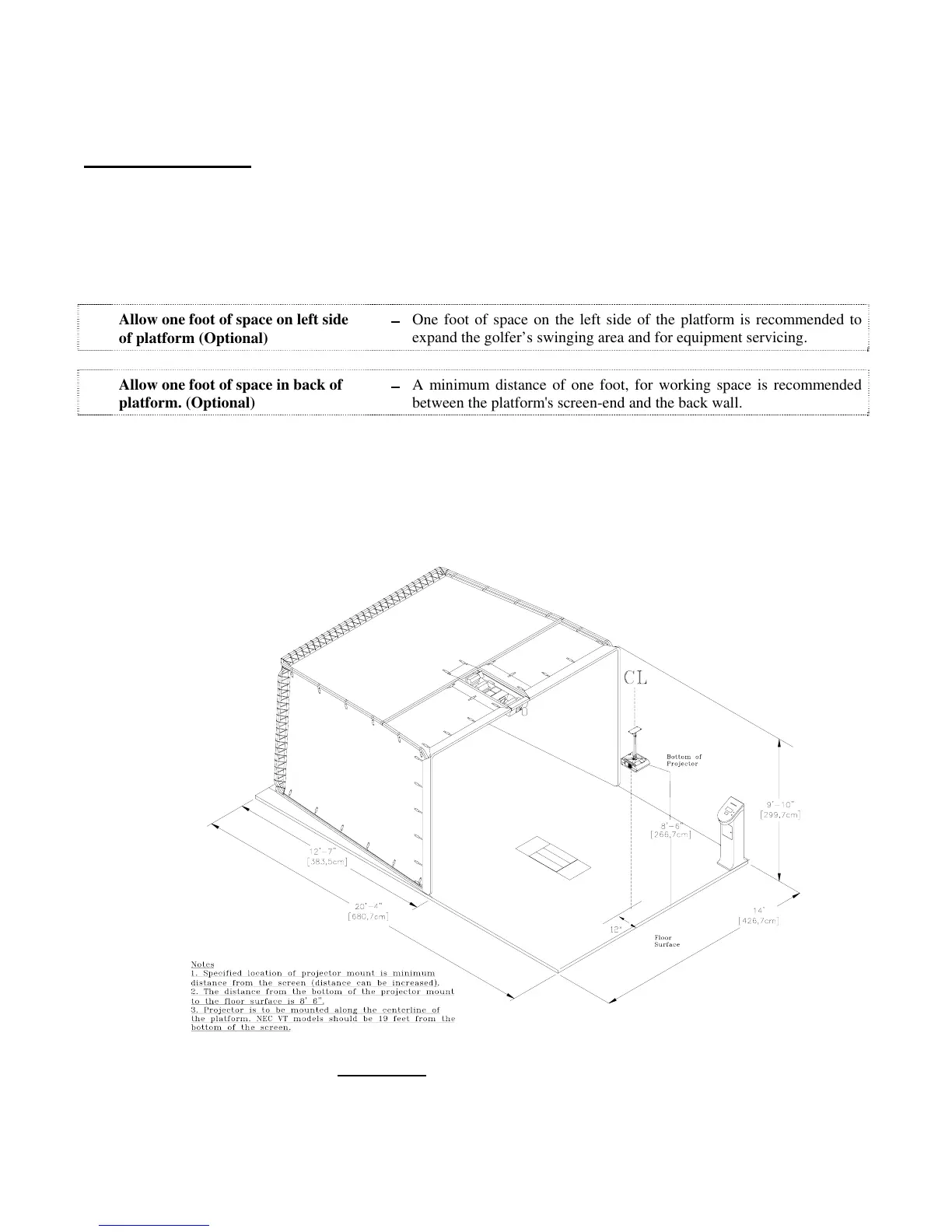

Drawing 2A Double Eagle Dimensions
