ParaBody 250101 - Page 4

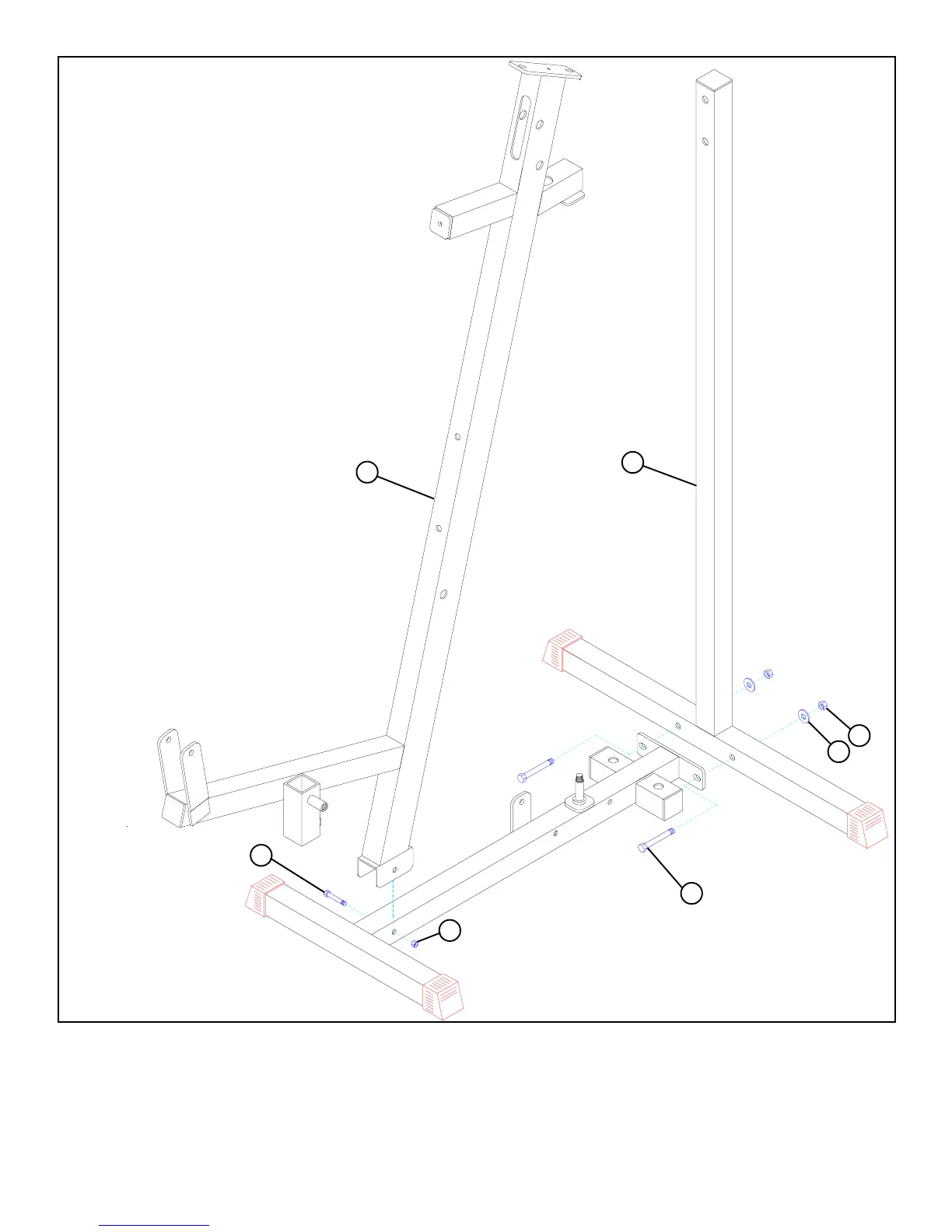

FIGURE 1
4
STEP 1
• Loosely assemble the REAR UPRIGHT (9) to the BASE (8) using two 1/2 X 3” BOLTS (46), two 1/2” FLAT WASHERS (39),
and two 1/2” LOCK NUTS (40). See FIGURE 1.
• Loosely assemble the FRONT UPRIGHT (2) to the BASE (8) using one 3/8 X 2-3/4” BOLT (48) and one 3/8” LOCK NUT (41) as
shown in FIGURE 1.
46 1/2 X 3”
3/8 X 2-3/4” 48
41
2
9
39
40
