3

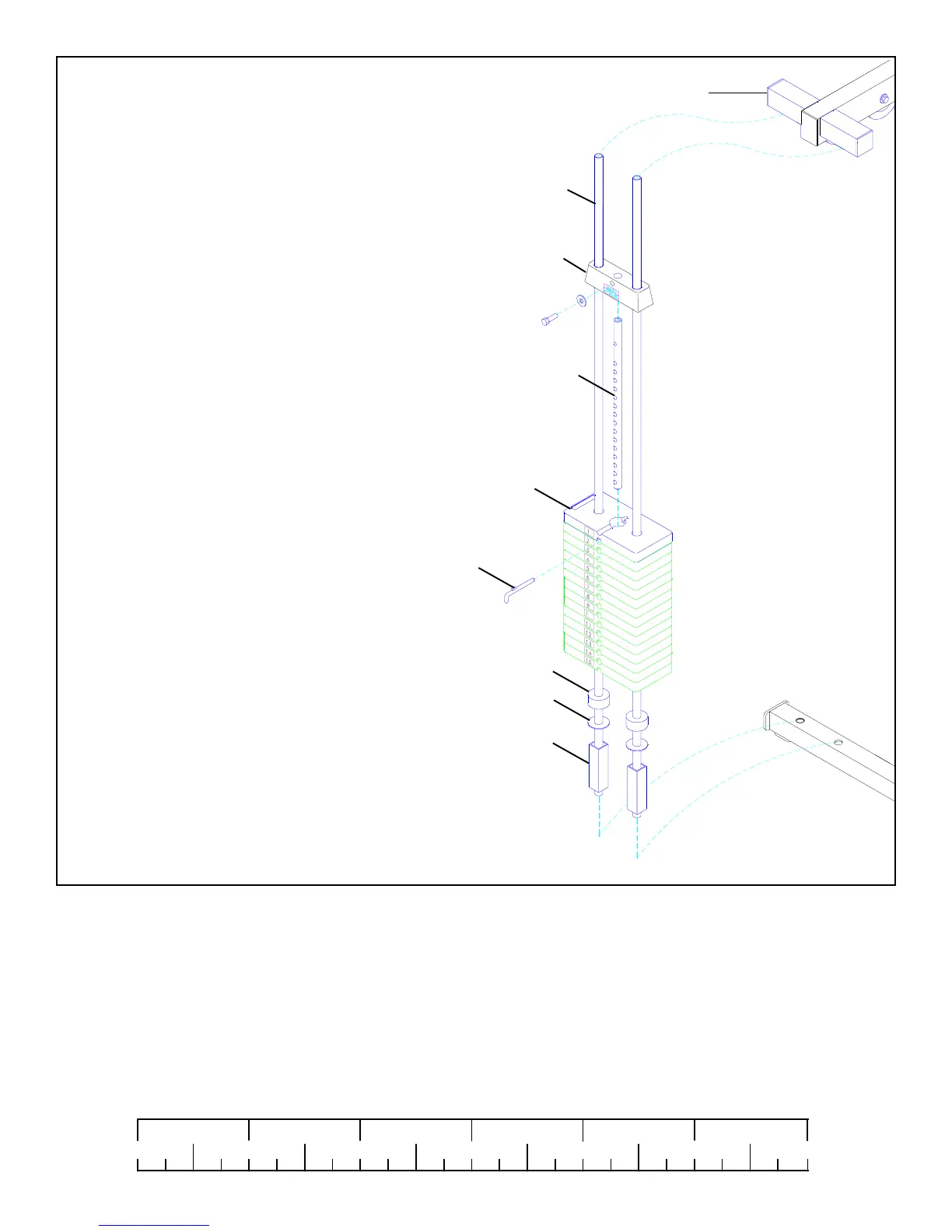

FIGURE 2
STEP 2:
TOP BOOM or GUIDE ROD SUPPORT
• Remove the WEIGHT STACK SELECTOR PIN from the WEIGHT STACK as shown in FIGURE 2.
• Unthread the CABLE from the WEIGHT STACK SHAFT of the HEAD PLATE as shown in FIGURE 2.
• Remove or loosen the TOP BOOM or GUIDE ROD SUPPORT. (Refer to Home Gym instructions)
• Tilt the GUIDE RODS back and remove the HEAD PLATE ASSEMBLY, fifteen WEIGHT PLATES, two WEIGHT STACK CUSHIONS,
two 3/4” WASHERS, and two WEIGHT STACK SPACERS as shown in FIGURE 1. (NOTE: Please discard the two 3/4” WASHERS,
and the two WEIGHT STACK SPACERS.)
• Unbolt the old WEIGHT STACK SHAFT from the HEAD PLATE. (NOTE: Please discard the old WEIGHT STACK SHAFT.)
HEAD PLATE
GUIDE ROD
WEIGHT STACK SHAFT
WEIGHT STACK PIN
WEIGHT PLATE
WEIGHT STACK CUSHION
3/4” WASHER
WEIGHT STACK SPACER
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
