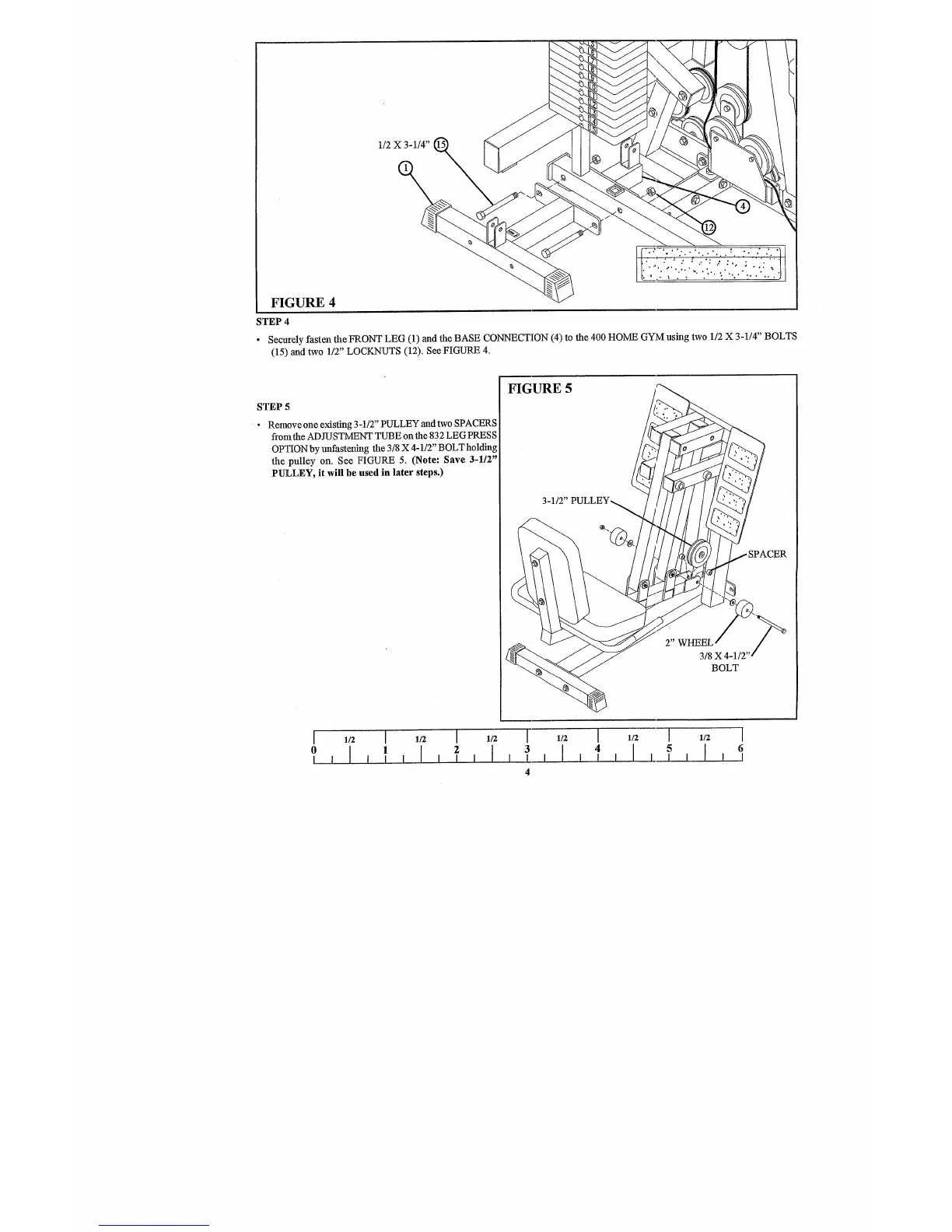

ParaBody 415101 - Assembly Steps - Part 2; Step 4: Secure Front Leg Assembly; Step 5: Remove Existing Pulley

1/2X3’1/4"
FIGURE 4
STEP 4
¯ Securely fasten the FRONT LEG (1) and the BASE CONNECTION (4) to the 400 HOME GYM using two 1/2 X 3-1/4" BOLTS
(15) and two 1/2" LOCKNUTS (12). See FIGURE
STEP 5
¯ ¯ Remove one existing 3-1/2" PULLEY and two SPACERS
fromthe ADJUSTMENT TUBE onthe 832 LEG PRESS
OPTION by unfastening the 3/8 X 4-1/2" BOLT holding
the pulley on. See FIGURE 5. (Note: Save 3-1/2"
PULLEY, it will be used in later steps.)
