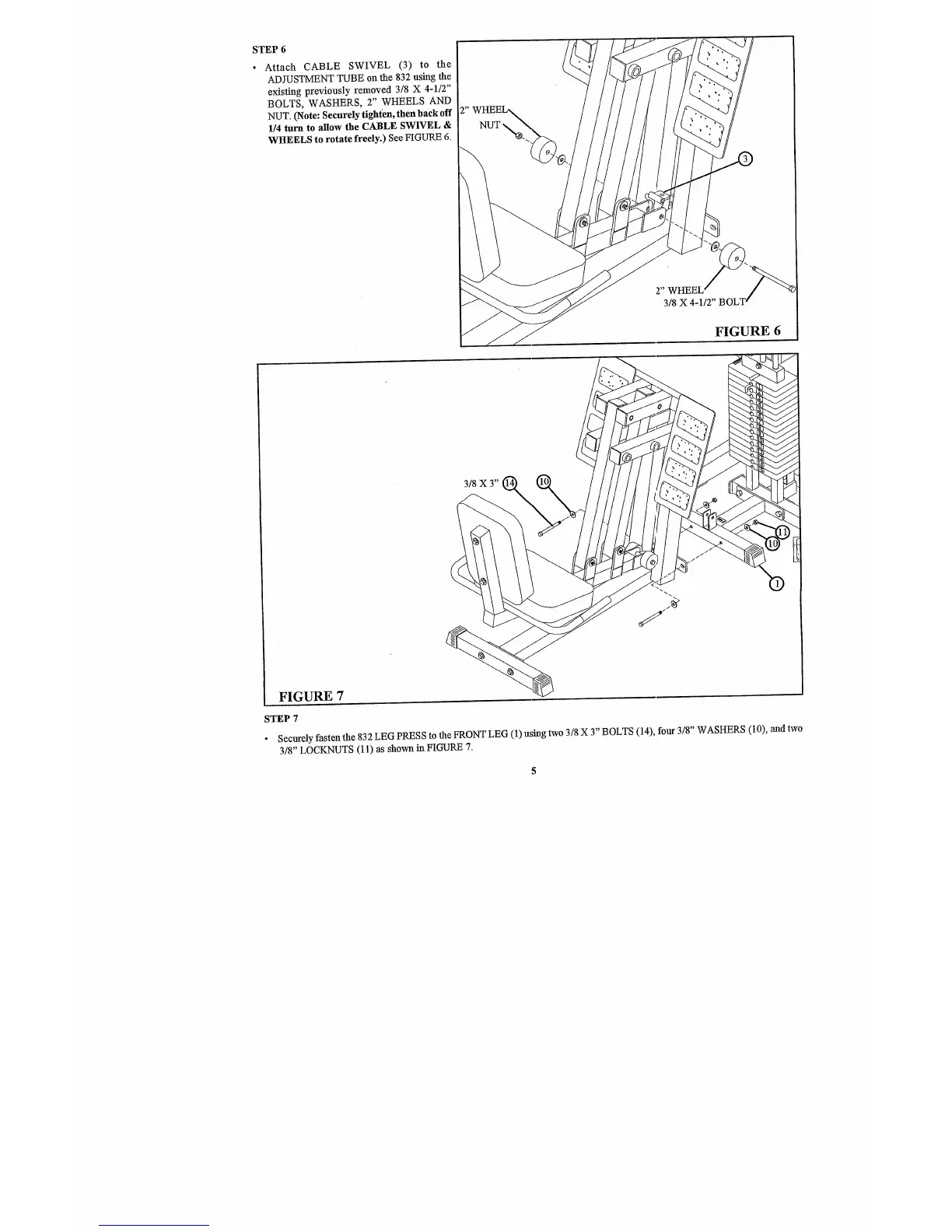

STEP 6
¯
Attach CABLE SWIVEL (3) to the
ADJUSTMENT TUBE on the 832 using the
existing previously removed 3/8 X 4-1/2"
BOLTS, WASHERS, 2" WHEELS AND
NUT. (Note: Securely tighten, then back off
1/4 turn to allow the CABLE SWIVEL &
WHEELS to rotate freely.) See FIGURE 6.
FIGURE 6
FIGURE
3/8 X 3"
STEP 7
¯
Securely fastenthe 832 LEG PRESS to the FRONT LEG (i) using two 3/8 X 3" BOLTS (14), four 3/8" WASHERS (10), and
3/8" LOCKNUTS (11) as shown in FIGURE
