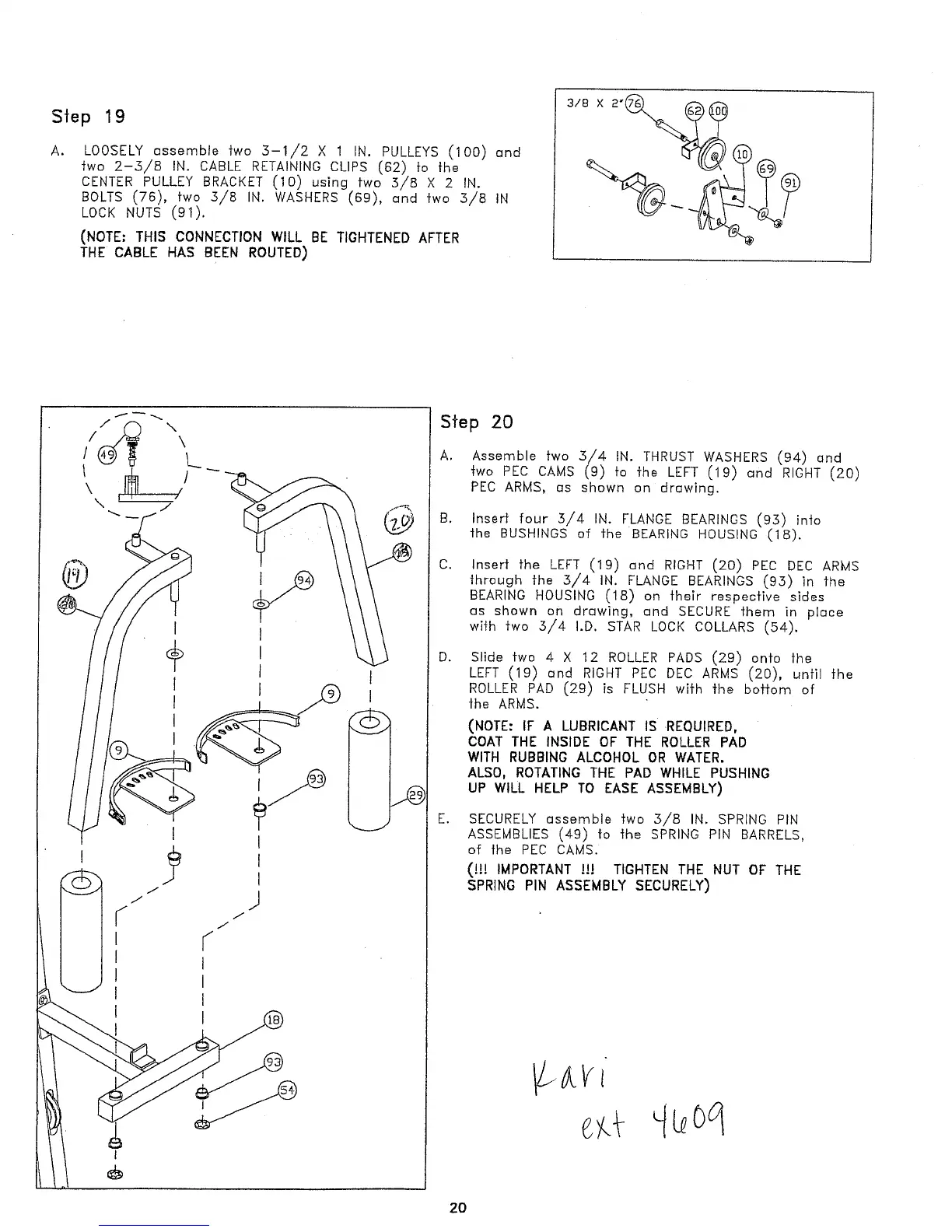

Step 1 9
A.
LOOSELY assemble two 3-1/2 X 1 IN. PULLEYS (100) and
two 2-3/8 IN. CABLE RETAINING CLIPS (62) to the
CENTER PULLEY BRACKET (10) using two .5/8 X 2 IN.
BOLTS (76), two 3/8 IN. WASHERS (69), and two 5/8
LOCK NUTS (91).
(NOTE: THIS CONNECTION WILL BE TIGHTENED AFTER
THE CABLE HAS BEEN ROUTED)
I
I
Step 20
A. Assemble two 3/4 IN. THRUST WASHERS (94) and
two PEC CAMS (9) fo the LEFT (19) and RIGHT
PEC ARMS, as shown on drawing.
B.
Insert four ,5/4 IN. FLANGE BEARINOS (93) into
the BUSHINGS of the BEARING HOUSING (18).
Insert the LEFT (19) and RIOHT (20) PEC DEC
through the 3/4 IN. FLANGE BEARINGS (95) in the
BEARING HOUSINO (18) on ~heir respective sides
us shown on drawing, end SECURE them in place
with two 3/4 I.D. STAR LOCK COLLARS (54).
Slide two 4 X 12 ROLLER PADS (29) onto the
LEFT (19) and RIGHT PEC DEC ARMS (20), until
ROLLER PAD (29) is FLUSH with the bottom
~he ARMS.
(NOTE: IF A LUBRICANT IS REQUIRED,
COAT THE INSIDE OF THE ROLLER PAD
WITH RUBBING ALCOHOL OR WATER.
ALSO, ROTATING THE PAD WHILE PUSHING
UP WILL HELP TO EASE ASSEMBLY)
SECURELY assemble two 3/8 IN, SPRING PIN
ASSEMBLIES (49) to the SPRING PIN BARRELS,
of the PEC CAMS.
(!!! IMPORTANT !!} TIGHTEN THE NUT OF THE
SPRING PIN ASSEMBLY SECURELY)
Go
20
