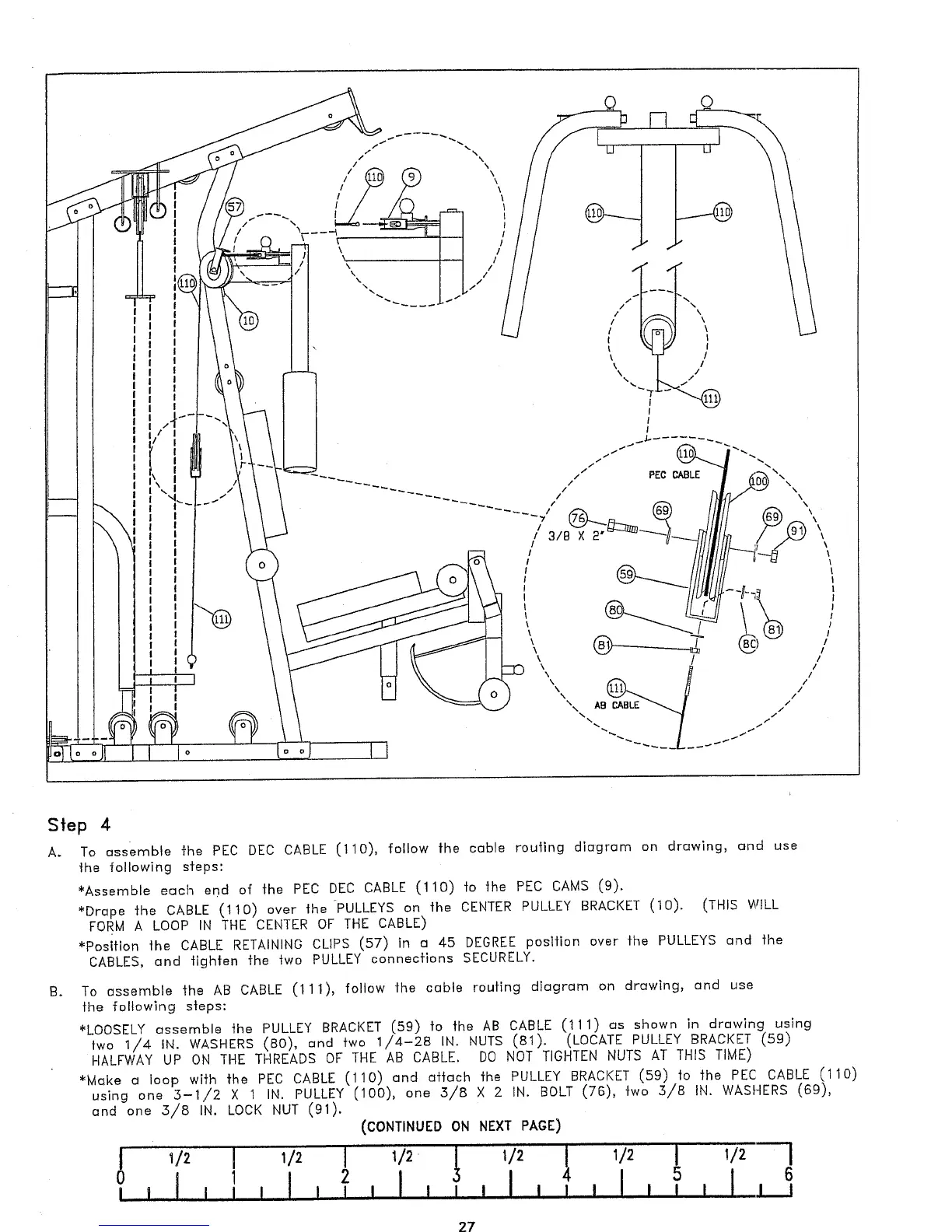

S|ep 4
A.
To ~ssemble the PEC DEC CABLE (110), follow the cobble routing diagram on drawing, and use
the following steps:
~Assemble each end of the PEC DEC CABLE (110) to the PEC CAMS (9).
*~Drope the CABLE (110) over the ~PULLEYS on the CENTER PULLEY BRACKET (10). (THIS
FORM A LOOP IN THE CENTER OF THE CABLE)
*Position the CABLE RETAININO CLIPS (57) in a 45 DEGREE position over the PULLEYS alqd the
CABLES, and ~ighten the two PULLEY connections SECURELY.
B.
To assemble the AB CABLE (111), follow the cable routing diagram on drawing, and use
the follow~ng s{eps:
~LOOSELY assemble ~he PULLEY BRACKET (59) fo ~he AB CABLE (111) as shown in drawing using
two I/4 IN. WASHERS (80), one two 1/4-28 IN. NUTS (81). (LOCATE PULLEY BRACKET
HALFWAY UP ON THE THREADS OF THE AB CABLE. DO NOT TIGHTEN NUTS AT THIS TIME)
~Make a loop with the PEC CABLE (110) and attach the PULLEY BRACKET (59) to ~he F’EC CABLE (110)
using one 3-1/2 X 1 IN. PULLEY (100), one 5/8 X 2 IN. BOLT (76), ~wo 3/8 IN. WASHERS (69),
and one 3/8 IN. LOCK NUT (91).
(CONTINUED ON NEXT PAGE)
2 5 6
I i , i I I
27
