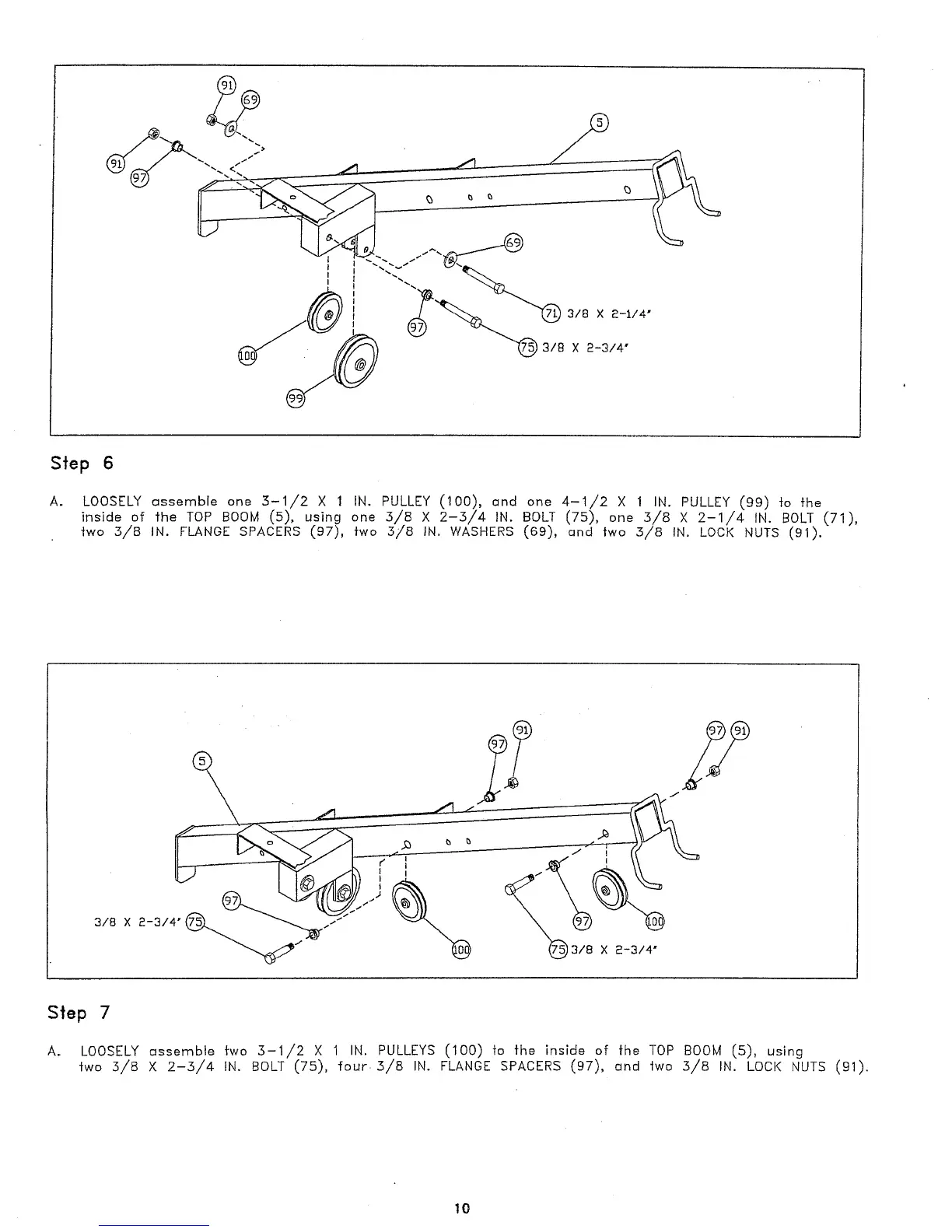

Step 6
LOOSELY assemble one 3-1/2 X 1 IN. PULLEY (100), and one 4-1/2 X 1 IN. PULLEY (99) to
inside of fhe TOP BOOM (5), using one 5/8 X 2-3/4 IN. BOLT (75), one 3/8 X 2-1/4 IN. BOLT (71),
fwo ,5/8 IN. FLANGE SPACERS (97), fwo 3/8 IN. WASHERS (69), and fwo 3/8 IN. LOCK NUTS (91).
3/8 X 2-314"
Step 7
LOOSELY assemble two 3-1,/2 X 1 IN. PULLEYS (100) to the inside of the TOP BOOM (5), using
two 3/8 X 2-3/4 IN. BOLT (75), four. 3/8 IN. FLANGE SPACERS (97), and two 3/8 IN. LOCK NUTS (91).
10
