ParaBody 880 - Page 7

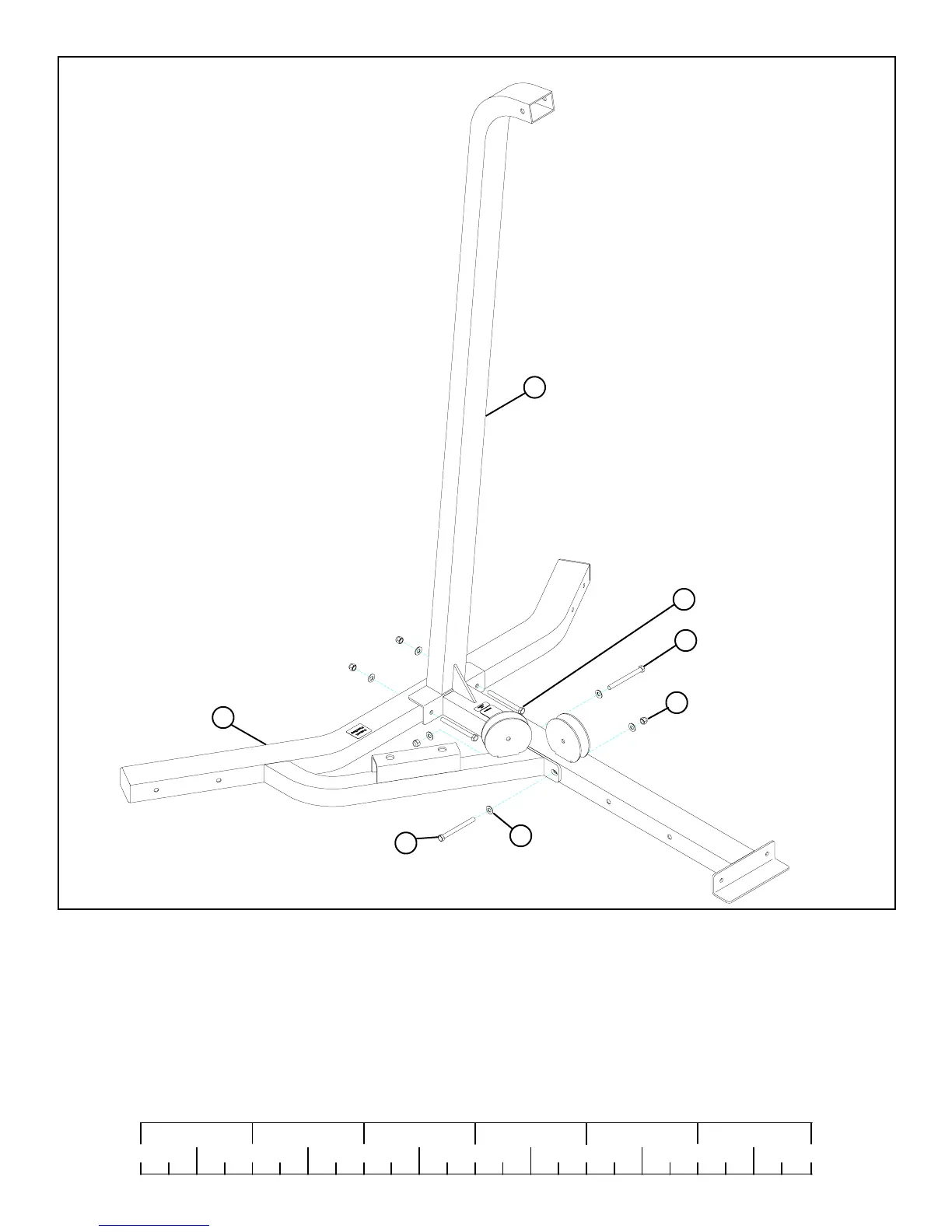

FIGURE 1
7
STEP 1:
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
• SECURELY assemble the REAR UPRIGHT (6) to the BASE FRAME (9) using two 3/8 X 3-3/4” BOLTS (93), two 3/8 X 4”
BOLTS (94), six 3/8” WASHERS (80) and four 3/8” LOCK NUTS (82) as shown in FIGURE 1.
3/8 X 4” 94
80
82
6
9
94 3/8 X 4”
93 3/8 X 3-3/4”
