9

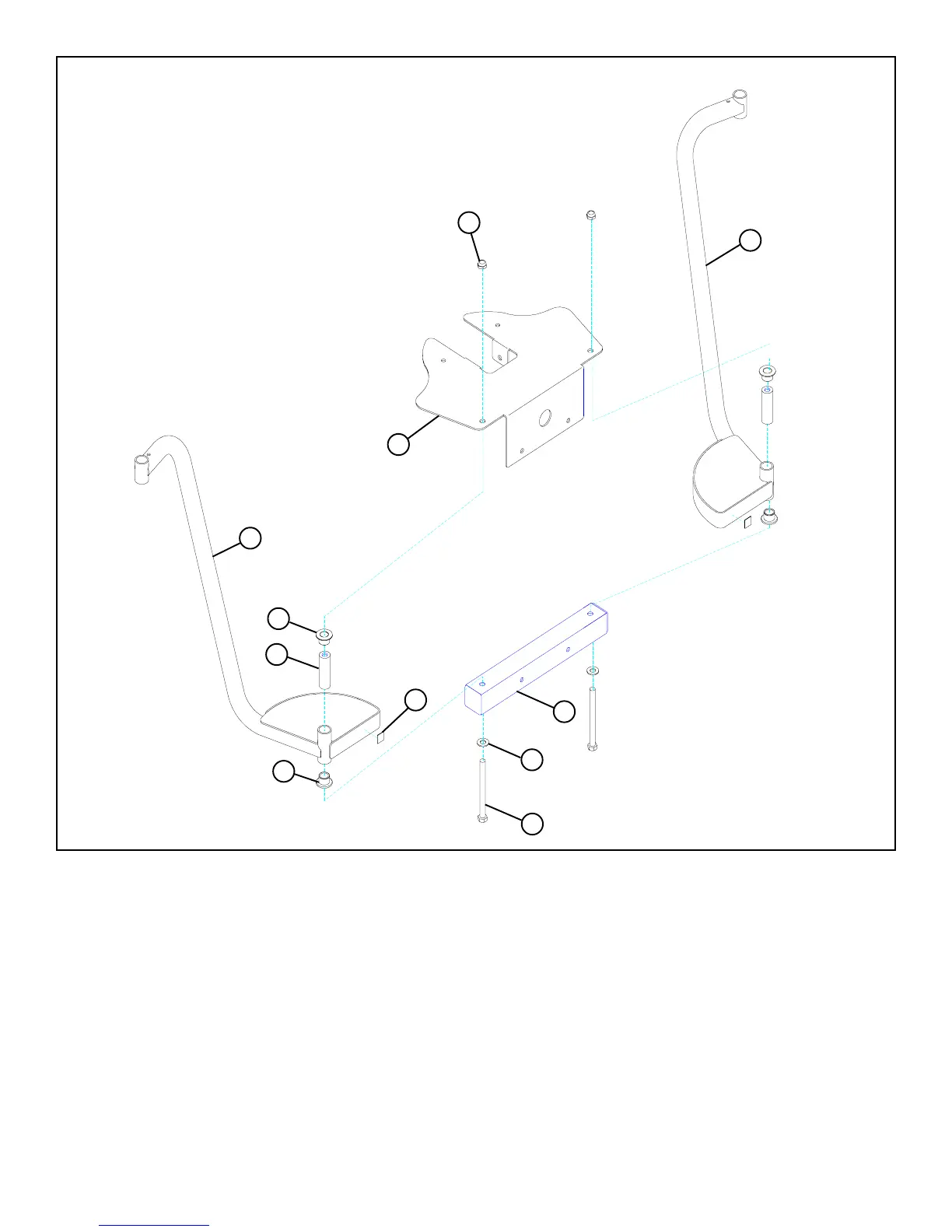

FIGURE 3
STEP 3:
• Assemble the RIGHT PEC ARM (13) and LEFT PEC ARM (14) to the 16-1/4” TUBE (12) and PEC PLATE (15) using two 1/2
X 6” BOLTS (97), two 1/2” WASHERS (81), four 3/4” FLANGE BEARINGS (53), two 3/4” X 3-5/16” SHAFTS (100) and two
1/2” LOW HEIGHT LOCK NUTS (85) as shown in FIGURE 3.
81
12
14
53
100
53
13
97 1/2 X 6”
68
• Assemble one 1” SQ. GLIDE (68) to the RIGHT PEC ARM (13) and one 1” SQ. GLIDE (68) to the LEFT PEC ARM (14) as shown
in FIGURE 3.
15
LOW HEIGHT 85
