ParaBody GS2 - Page 17

17
STEP 15

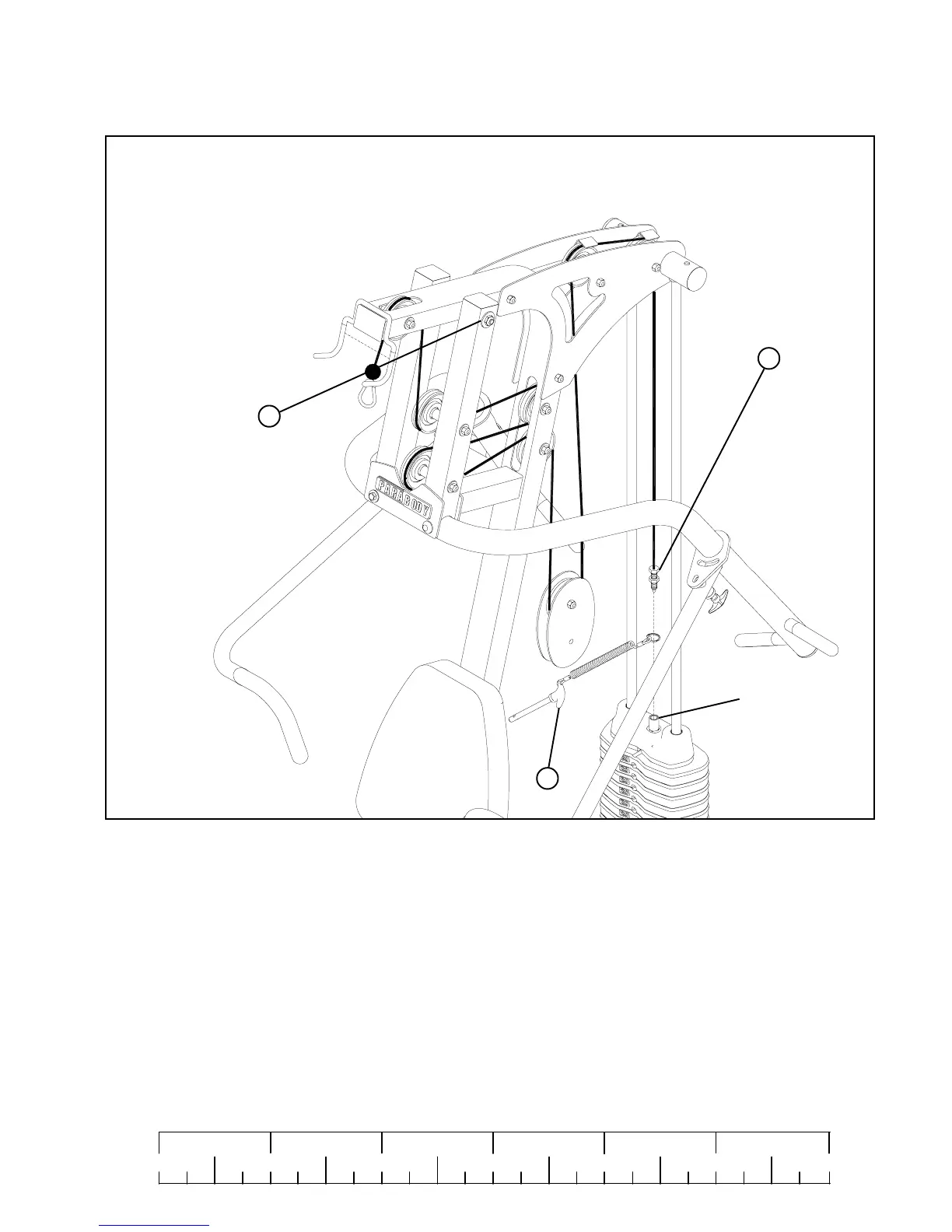

• Screw end of LAT CABLE (20) into top of PLATE SHAFT (18) and securely tighten JAM NUT as shown in FIGURE 15
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 15
20
• Slip ring of WEIGHT SELECTOR PIN (51) down WEIGHT STACK SHAFT and insert pin into one of the weights
51
WEIGHT
STACK
SHAFT
35
• Securely tighten 1/2” LOCK NUT (35) on PRIMARY PIVOT of PRESS ARM (9).
SECURELY
TIGHTEN
JAM NUT
