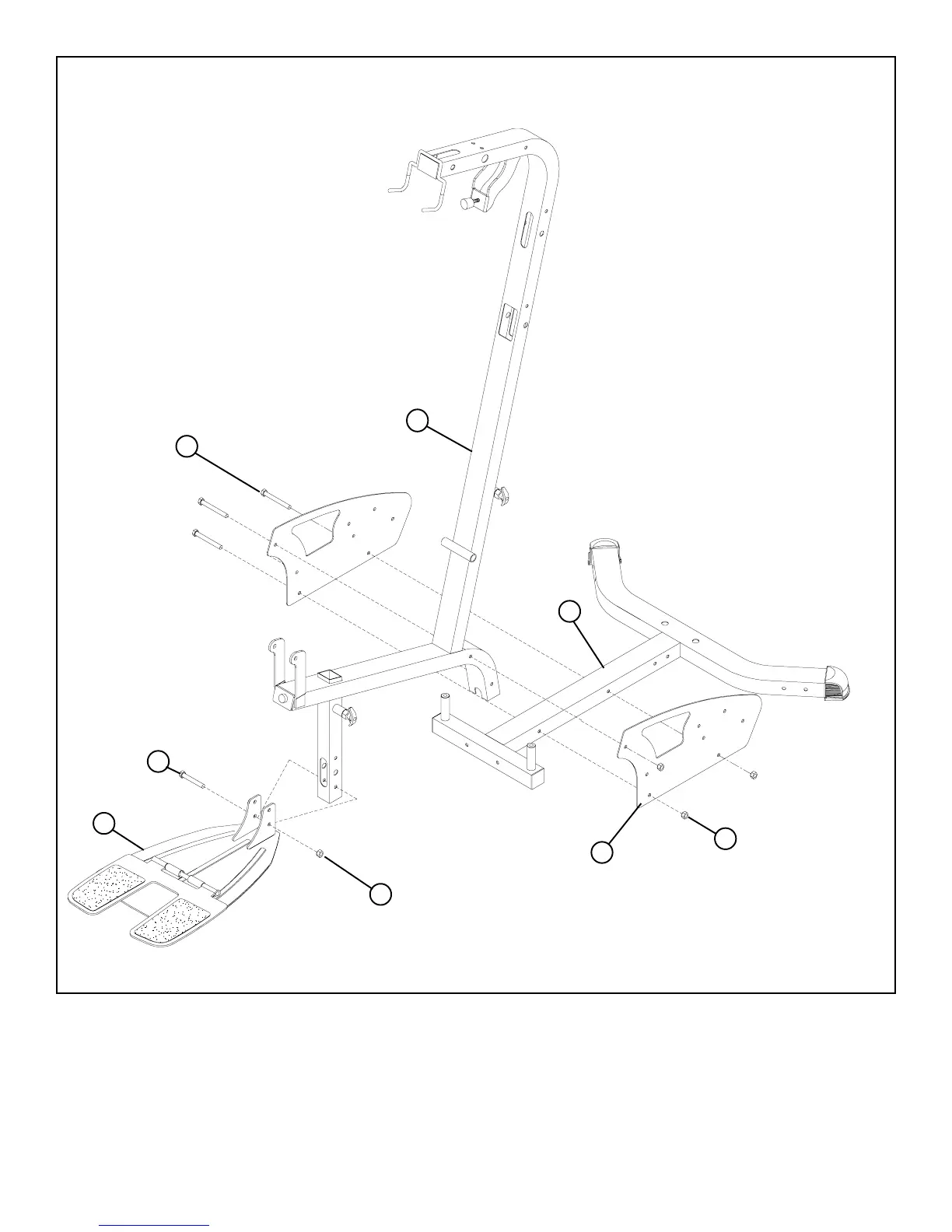

FIGURE 1
5
STEP 1:
19
6
L
3/8 X 3”
8
19
C
LOOSELY assemble two BASE PLATES (C) to the FRAME (A) and BASE (B) using three 3/8 X 3-3/4” BOLTS (6) and four 3/8”
LOCK NUTS (19). See FIGURE 1.
B
A
LOOSELY assemble the FOOTPLATE (L) to the lower holes in the FRAME (A) using one 3/8 X 3” BOLT (8) and one 3/8”
LOCKNUT (19) as shown in FIGURE 1.
3/8 X 3-3/4
