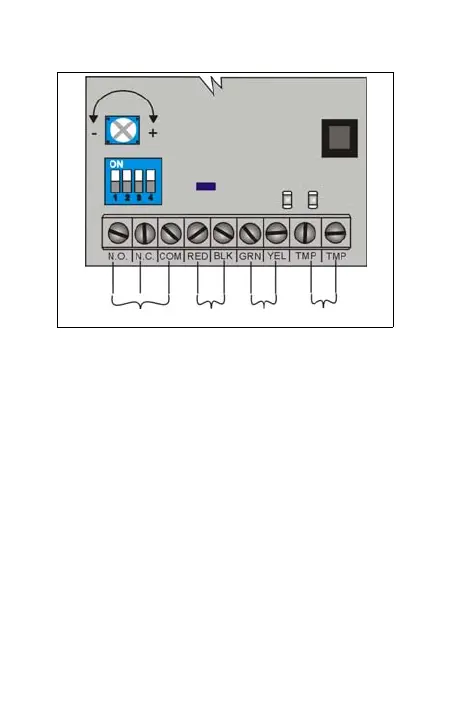

Figure / Figura 27n
Figure \ Figura 3
A
B
C
D
A
- Alarm relay
- Relais d’alarme
- Relé de alarma
B
- Power input (+12Vdc)
- Alimentation (+12 Vc.c.)
- Alimentación (+12 Vcc)
C
- To combus (DGP2 mode only)
- Vers combus (mode DGP2
seulement)
- A combus (sólo Modo DGP2)
D
- Anti-tamper switch
- Interrupteur antisabotage
- Interruptor antisabotaje
