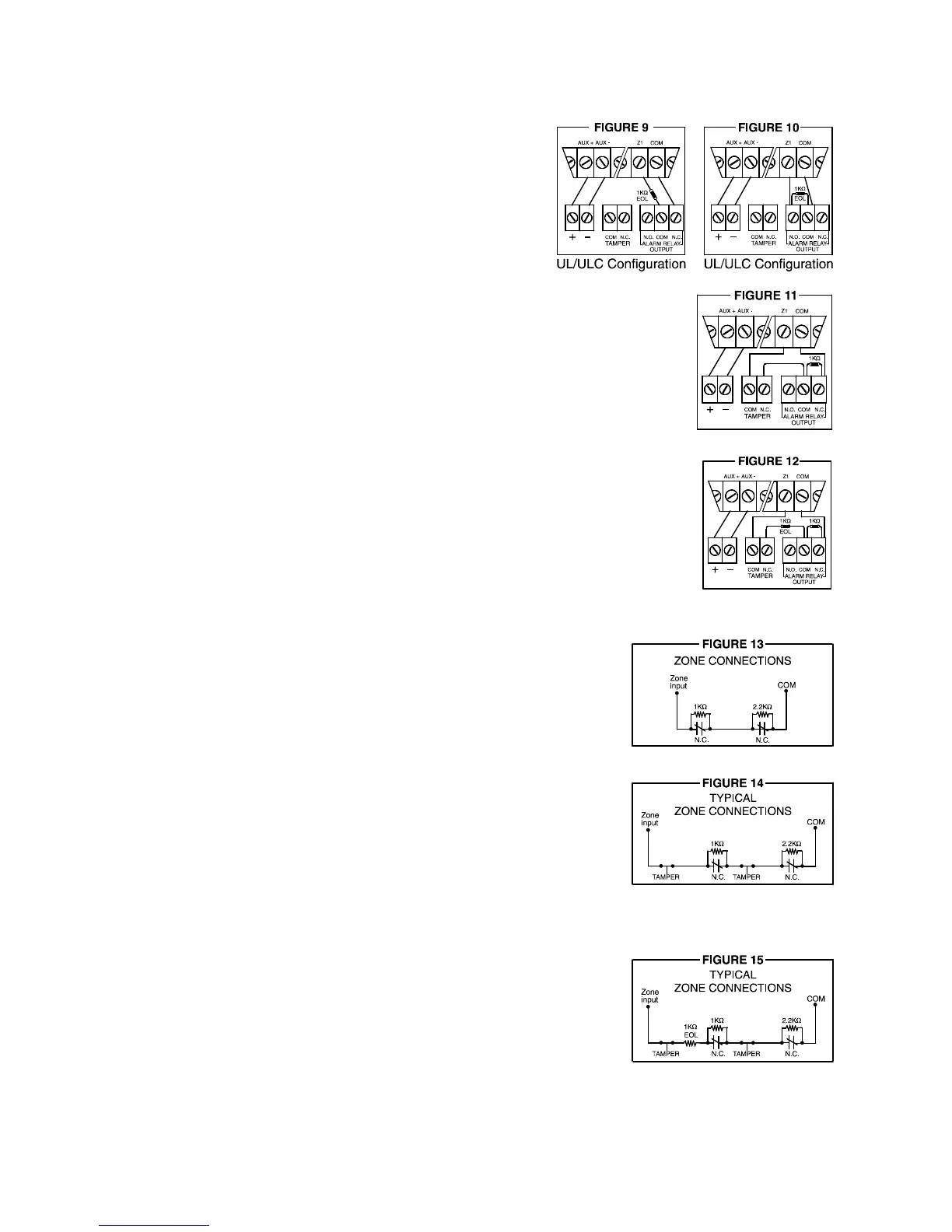

ZONE connection, with EOL resistor
(N.C. and N.O. contacts)(UL/ULC Configuration)
address 088, key [MEM] = "off" (default)
key [10] = "off" (default)
key [11] = "off" (default)
address 090, key [8] = "off"
ZONE connection, without EOL resistor, with tamper recognition
(N.C. contacts)
address 088, key [MEM] = "on"
key [10] = See "Tamper/wire Fault Definitions
key [11] = and Options"
address 090, key [8] = "off"
Tamper transmits separate code.
ZONE connection, with EOL, with tamper recognition and with wire fault
(short circuit) recognition (N.C. contacts) (UL/ULC Configuration)
address 088, key [MEM] = "off"
key [10] = See "Tamper/wire Fault Definitions
key [11] = and Options"
address 090, key [8] = "off"
Tamper/wire fault transmits separate code.
Advanced Technology Zone Connections (2 zones / input)
2 ZONES connection, without EOL resistor (N.C. contacts) (738 only)
address 088, key [MEM] = "on"
key [10] = "off"
key [11] = "off"
address 090, key [8] = "on"
Each zone transmits a separate alarm code.
2 ZONES connection, without EOL resistor, with tamper recogni
tion
(N.C. contacts) (738 only)
address 088, key [MEM] = "on"
key [10] = See "Tamper/wire Fault Definitions
key [11] = and Options"
address 090, key [8] = "on"
Each zone transmits a separate alarm code.
Tamper transmits separate code.
2 ZONES connection, with EOL resistor, with tamper recognition,
and with wire fault (short circuit) recognition (N.C. contacts)
(UL/ULC Configuration) (738 only)
address 088, key [MEM] = "off"
key [10] = See "Tamper/wire Fault Definitions
key [11] = and Options"
address 090, key [8] = "on"
Each zone transmits a separate alarm code.
Tamper/wire fault transmits a separate alarm code
.
9
IM738-738EX
