DTMF - no handshake ([TRBL] key)
All addresses from 300 to 527 programmed with values other than [2
ND] [2ND] will report the contact ID
codes corresponding to the values programmed (according to the “Contact ID Event Code Selection”
table in the Programming Guide). This format can be utilized in reporting situations where a central sta-
tion receiver is not connected to the telephone number. It's useful for personal reporting where a "hand-
shake" is not required. (In "double reporting" mode, first central station number can be connected to a
receiver, while second can be used for personal reporting using "no handshake" format. The panel will
make two attempts to call the "no handshake" number.)

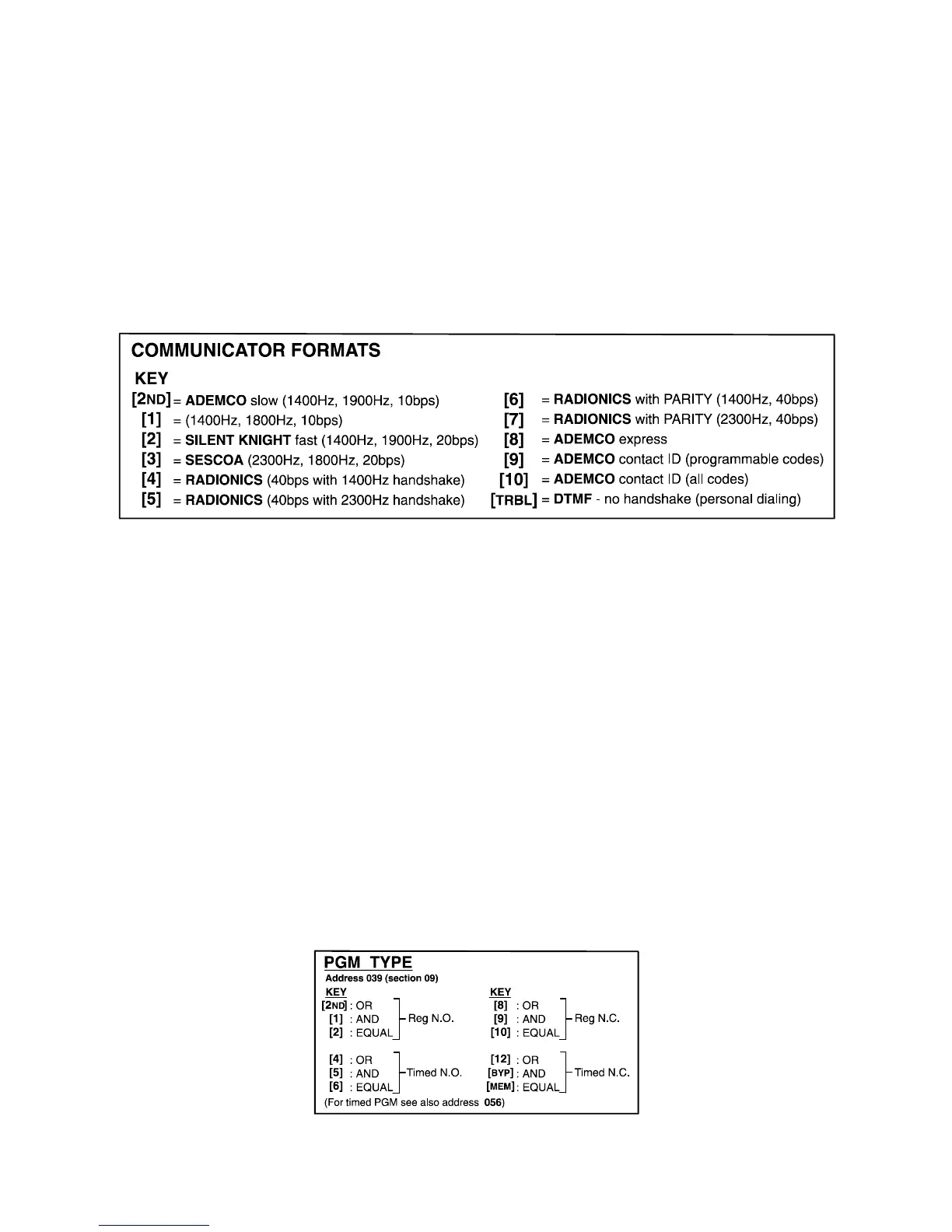

Standard pulse formats
Ademco slow, Silent Knight, Sescoa, and Radionics are programmable with keys [2ND] to [7].
Programmable Output (
PGM
) Types (Address 039) SECTION 09
Regular N.O. Solid state switch conducts to negative (50mA
*) upon an event or events, and returns to its
original state (N.O) once the conditions that triggered it have terminated.
Regular N.C. Solid state switch opens circuits from ground upon an event or events and returns to its
original state (N.C.) once the conditions that triggered it have terminated.
Timed N.O. Solid state switch conducts to negative (50mA
*) upon an event or events and remains acti-
vated for the amount of time programmed at address 056.
Timed N.C. Solid state switch opens circuits from ground upon an event(s) and remains activated for
the amount of time programmed at address 056.
"
OR" logic
Causes the programmable output command to occur when one or more selected events
from a specified group of events take place (example: key [1] or [2] is pressed on keypad.)
"
AND" logic Causes the programmable output command to occur when all selected events from a spec-
ified group of events take place (example: key [1] and key [2] are pressed.)
"
EQUAL" logic Causes the programmable output command to occur when all events from a specified
group of events take place (example: key [1] and [2] are pressed but [3], [4], [5], [6], [2ND]
and [TRBL] are not pressed.)
*UL tested for 30mA only.
