Paradox Esprit 738 Express+ - Connection Diagrams - Zone Configurations; Single Zone Connection Types; Tamper and Wire Fault Definitions

CONNECTION DIAGRAMS
The system hardware will recognize the following zone conditions:

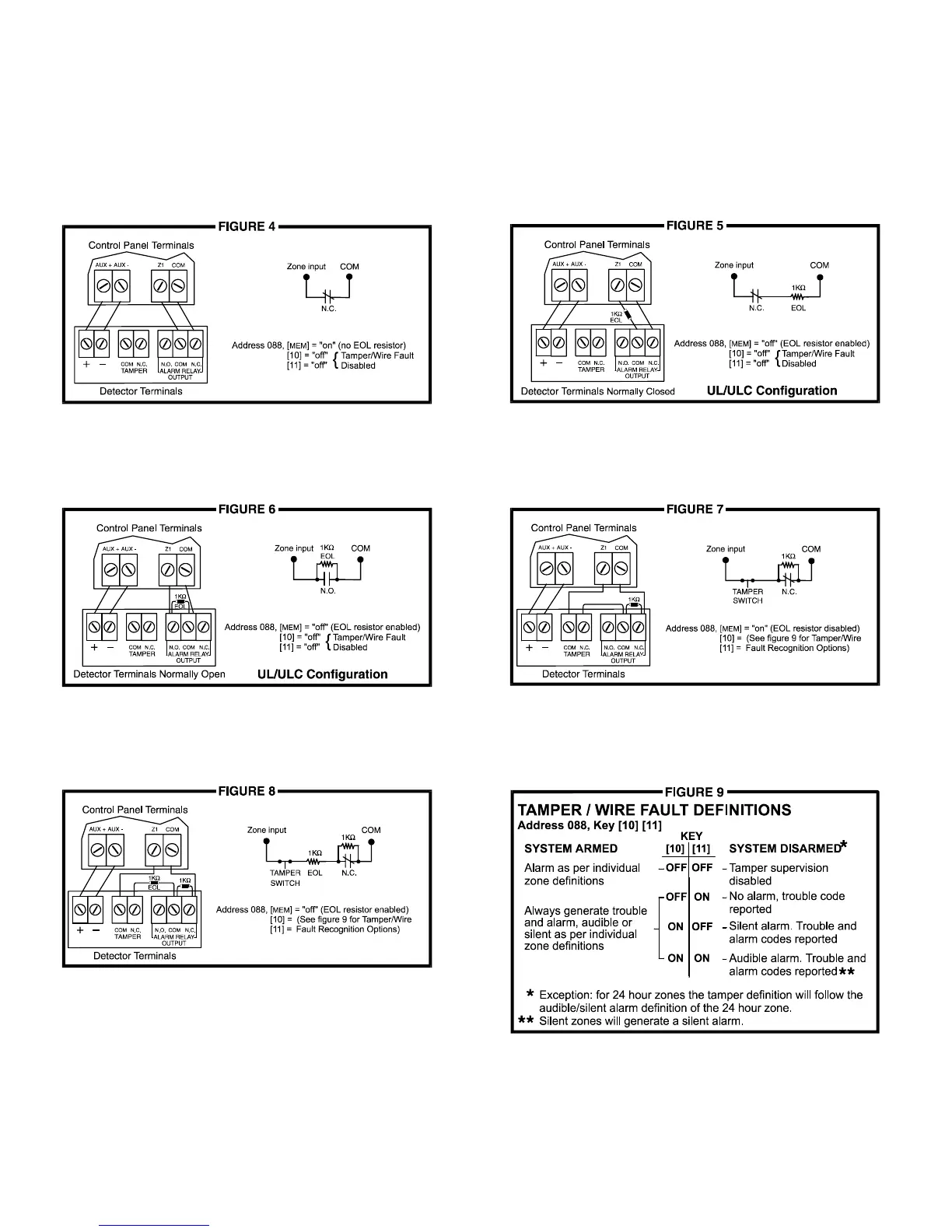

SINGLE ZONE CONNECTIONS
N.C. Contacts, Without EOL Resistor N.C. Contacts, With EOL Resistor (UL/ULC)
N.O. Contacts, With EOL Resistor (UL/ULC) N.C Contacts, Without EOL Resistor, With Tamper
Recognition
N.C. Contacts, With EOL Resistor, With Tamper and
Wire Fault Recognition (UL/ULC)
11
