Esprit 728 Ultra & 738 Ultra - 8 - Programming Guide
Decimal Programming
The decimal programming method is used to program all of the system’s timers. This method uses a 3-digit address from 044 to 061 and
each address is programmed with a value from 000 to 255.
Figure 2: Decimal Display For LED Keypads
Table 5: Decimal Programming Method
1. Press [
ENTER] + [INSTALLER CODE] (default - 728 Ultra: 282828; 738 Ultra: 383838)
2. The [ENTER] key will flash to indicate that you are in programming mode (LED keypad only).
3. Enter 3-digit [ADDRESS] (044 to 061).
4. The keypad displays the current 3-digit data saved at this address as described in Figure 2 below.
5. Enter 3-digit [
DATA] (000 to 255) and do not press [ENTER]. The software will automatically save the data.
6. Return to step 2 or press [
CLEAR] to exit programming mode.
Address Data
Description Default
044 ___ / ___ / ___ (hours) Auto arm time (between "000" and "023") 000
045 ___ / ___ / ___ (minutes) Auto arm time (between "000" and "059") 000
046 ___ / ___ / ___ (days or hours) Auto test report every ? (between "001" and "254") (000 = disabled)
If address 090 key [3] OFF = address 046 in days (see page 10)
If address 090 key [3] ON = address 046 in hours (see page 10)
738 Ultra only: Enter “255” to enable a Timed Test Transmission when the system is armed or
disarmed (see the “728 Ultra/738 Ultra Reference & Installation Manual” for more information)
000
047 ___ / ___ / ___ (hours) Auto test report (between "000" and "023")
738 Ultra only: (minutes) If address 046 = 255 and the system is armed, Armed Test Report
(between “001” and “255”)
000
048 ___ / ___ / ___ (minutes) Auto test report (between "000" and "059")
738 Ultra only: (minutes) If address 046 = 255 and the system is disarmed, Disarmed Test
Report (between “001” and “255”)
000
049 ___ / ___ / ___ (seconds) Exit delay 60 seconds
050 ___ / ___ / ___ (seconds) Entry delay 1 45 seconds
051 ___ / ___ / ___ (seconds) Entry delay 2 45 seconds
052 ___ / ___ / ___ (minutes) Bell cut-off time 5 minutes
053 ___ / ___ / ___ (x 15 ms) Zone speed 600 ms
054 ___ / ___ / ___ (minutes) Power failure report delay (000 = disabled) 30 minutes
055 ___ / ___ / ___ (x 15 minutes) No movement Auto-Arm time (000 = disabled) Disabled
056 ___ / ___ / ___ PGM timer setting (001 to 127 for seconds and 129 to 255 for minutes)
Add 128 to desired value in minutes (i.e. for 5 minutes: enter 5 + 128 = 133)
5 seconds
057 ___ / ___ / ___ Intellizone delay (in seconds, minimum = 10 seconds) 48 seconds
058 ___ / ___ / ___ Installer code lock (147 = locked, 000 = unlocked). When Installer Lock is enabled on a control
panel: For 4 seconds during power up, the STATUS LED flashes while the dialer relay opens
and closes making a clicking noise.
Unlocked
059 ___ / ___ / ___ (seconds) Programmable delay before alarm transmission (005 to 063 seconds)
(000 = disabled)
Disabled
060 ___ / ___ / ___ (seconds) Recent closing delay (000 = disabled) Disabled
061 ___ / ___ / ___ (days or hours) Closing delinquency timer (System A)
If address 090 key [3] OFF = address 061 in days (see page 10)
If address 090 key [3] ON = address 061 in hours (see page 10)
Disabled

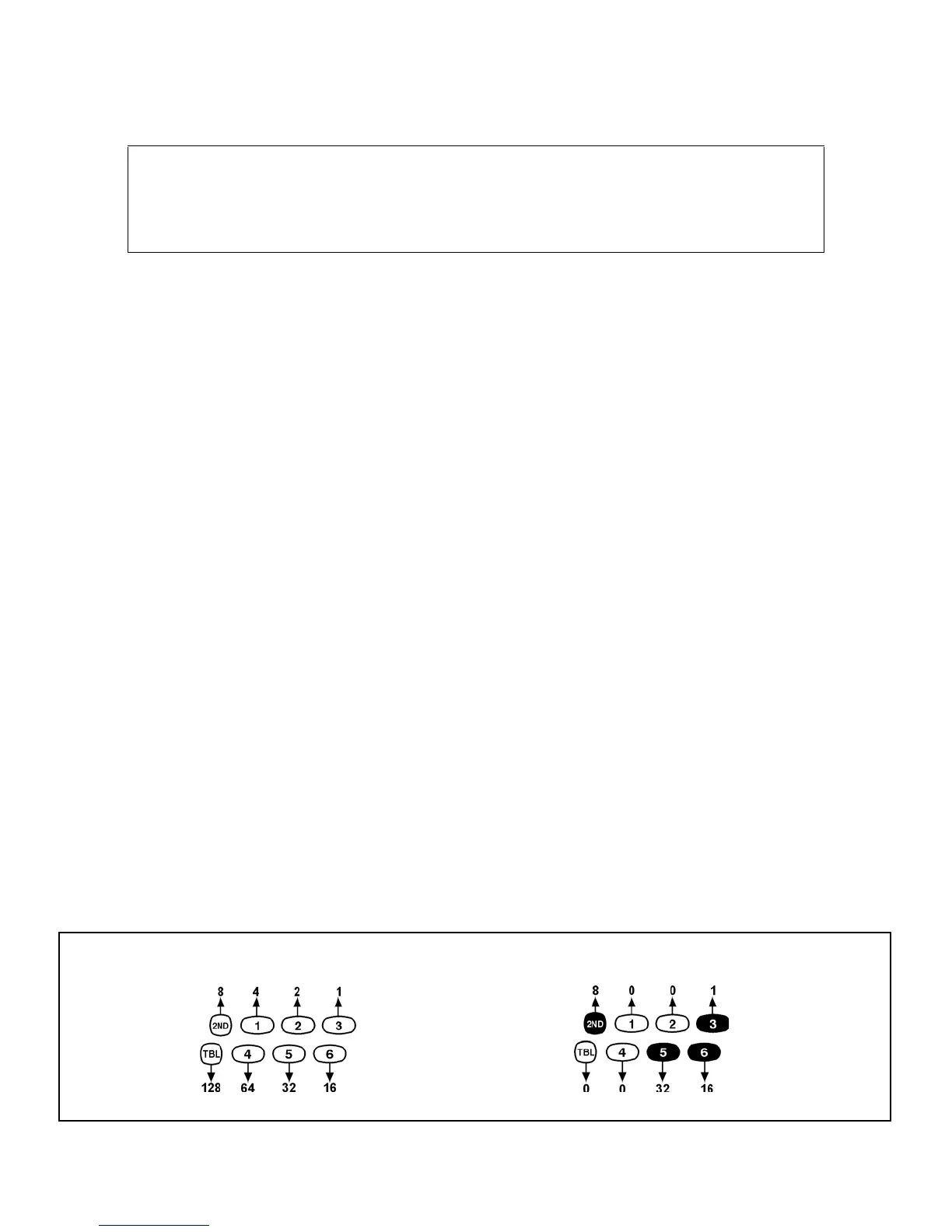

Each key in the first 2 rows of the keypad represents a specific value when the key is lit, as shown below left. When the key isn’t lit, the
key represents 0. Add the values of the lit keys to obtain the entered data value as shown in the example below right.
Note: LCD keypads will display current data on the screen.
Example:
Therefore
8 + 1 + 32 + 16 = 057
