The system hardware will recognize the following zone conditions:

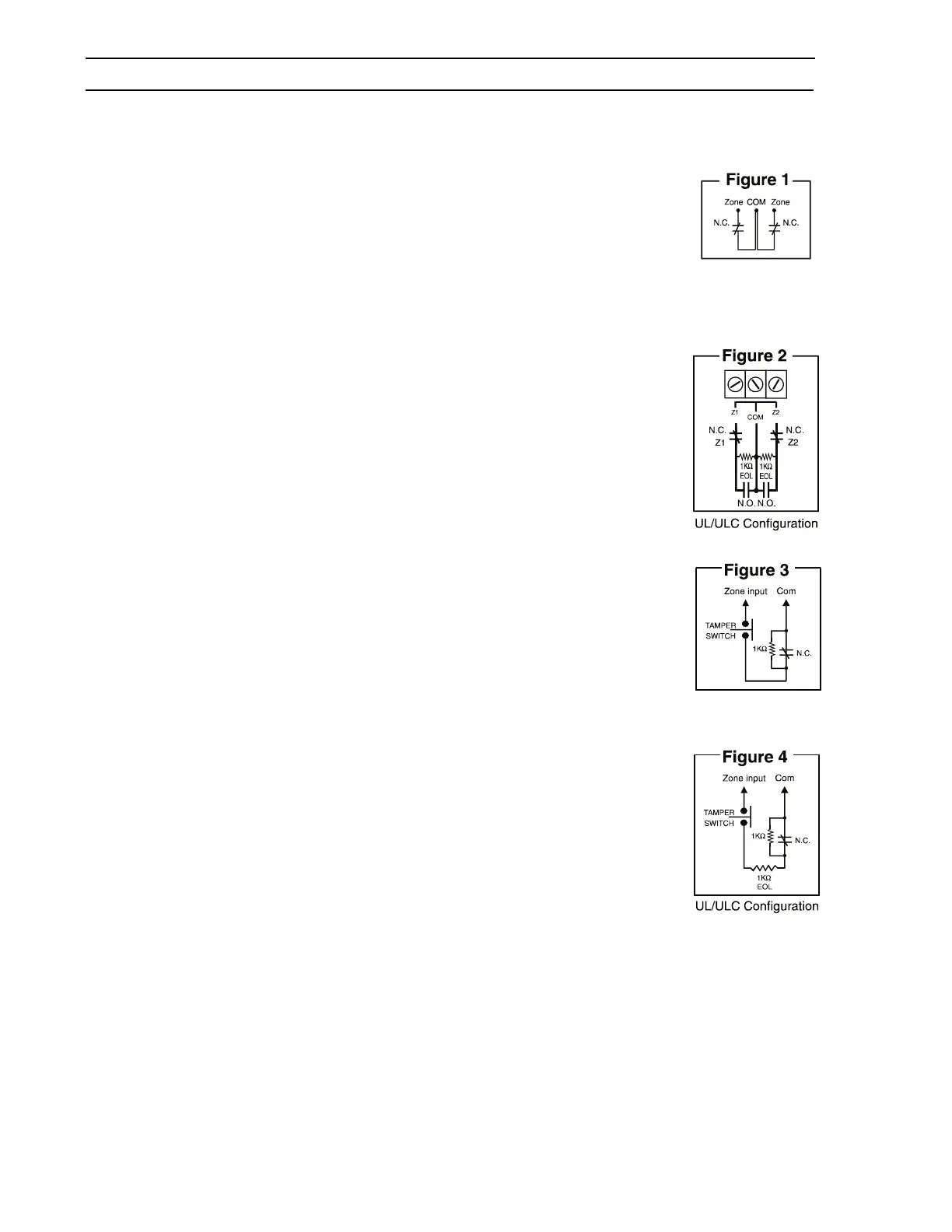

ZONE CONNECTIONS
ZONE connection, without EOL (N.C. contacts)
address 088, key [MEM] = "on"
key [10] = "off" (reset)
key [11] = "off" (reset)
address 090, key [8] = "off"
N.C. contacts see Figure 1
Keypad zones always use (1K OHM) EOL
ZONE connection, with EOL resistor (N.C. and N.O. contacts)
address 088, key [MEM] = "off" (reset)
key [10] = "off" (reset)
key [11] = "off" (reset)
address 090, key [8] = "off"
N.C. and/or N.O. contacts, see Figure 2
ZONE connection, with tamper recognition (N.C. contacts)
address 088, key [MEM] = "on"
key [10] =
key [11] =
address 090, key [8] = "off"
Tamper transmits separate code, see Figure 3
ZONE connection, with EOL, with tamper recognition, and with wire fault
(short circuit) recognition (N.C. contacts)
address 088, key [MEM] = "off"
key [10] =
key [11] =
address 090, key [8] = "off"
Tamper/wire fault transmits separate code, see Figure 4
- 11 -
PG748EX
See "Tamper/wire Fault Definitions
and Options"
See "Tamper/wire Fault Definitions
and Options"
ESPRIT 748EXPRESS CONNECTION DIAGRAMS
