Digiplex & DigiplexNE - 2 - Modules Programming Guide
Copy Contents of the Grafica Keypad to the Memory Key.
1) Insert the Memory Key onto the keypad’s connector (refer to “Memory Key Connector” on page 4). Ensure that the write protect jumper is on (refer to
"Memory Key (PMC-3)" below).
2) To copy the contents to the Memory Key, enter the keypad’s programming mode and enter section [110].
3) Once the keypad emits a confirmation beep, wait for a second confirmation beep and then remove the Memory Key. Remove the Memory Key’s jumper
if you do not wish to accidentally overwrite its contents.

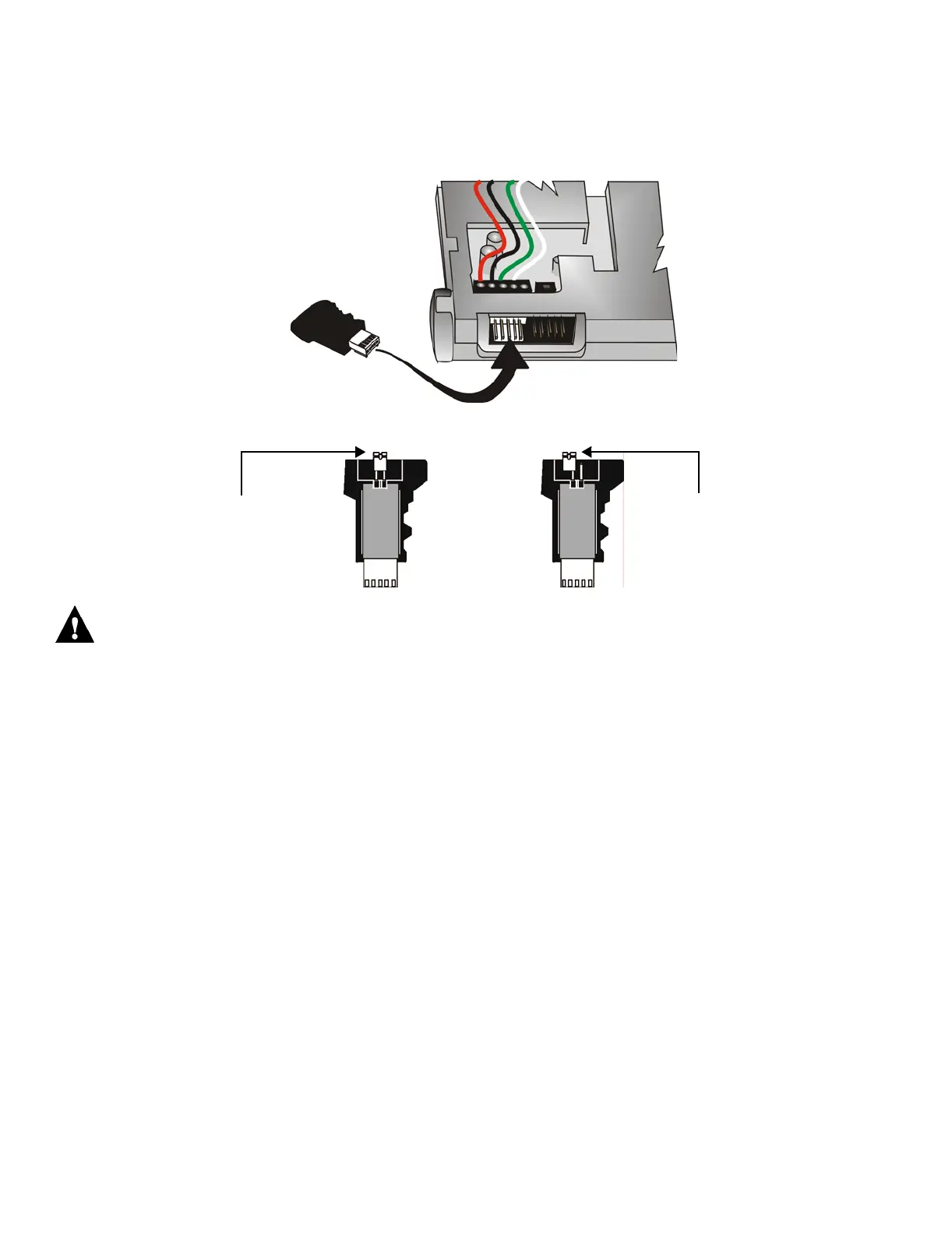

MEMORY KEY CONNECTOR
MEMORY KEY (PMC-3)
The memory key will only function with a keypad that has the DGP2 or DNE prefix in the model number. Only the PMC-3 memory key will
function with DGP2 and DNE keypads.
PMC-3
Jumper ON:
Can copy and download
contents.
Jumper OFF:
Cannot override the contents
of the memory key.
