Single Zone Inputs

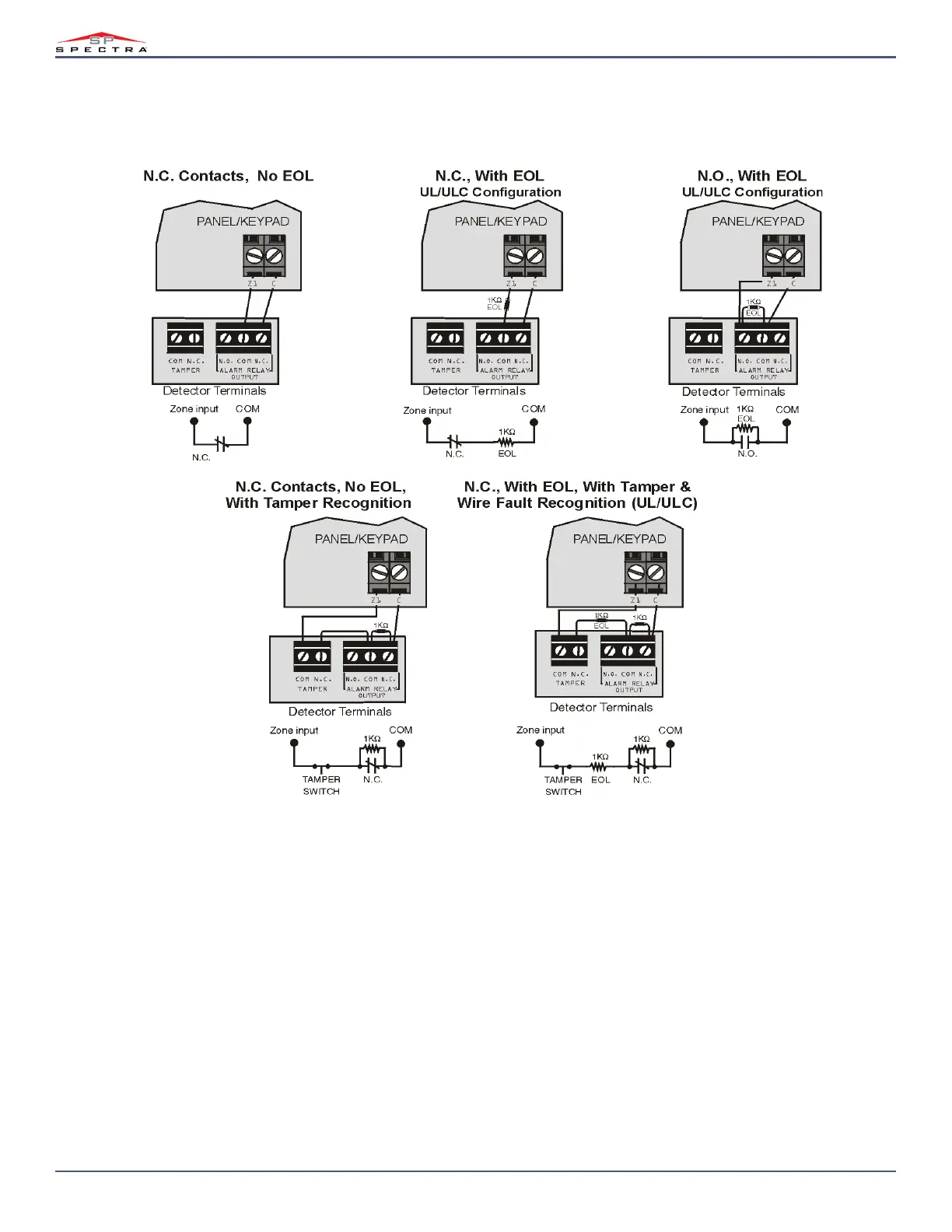

Detection devices such as motion detectors and door contacts are connected to the control panel's zone input terminals. Figure 3 demonstrates single zone input
terminal connections recognized by the panel. Once connected, the associated zone's parameters must be defined.
Figure 3: Single Zone Input Connections
