Paradox MG5050 User Manual

Magellan / Spectra SP 5
[TBL] Trouble display
ON = Trouble(s) occurring
[MEM] Alarm memory display
ON = Alarm(s) occurred
[BYP] Bypass programming
ON = Zone(s) bypassed
Zone Display:
The numbers [1] to [32] correspond
to zones 1 to 32 respectively. Open
or entry delay zones are illuminated,
and flash in alarm.

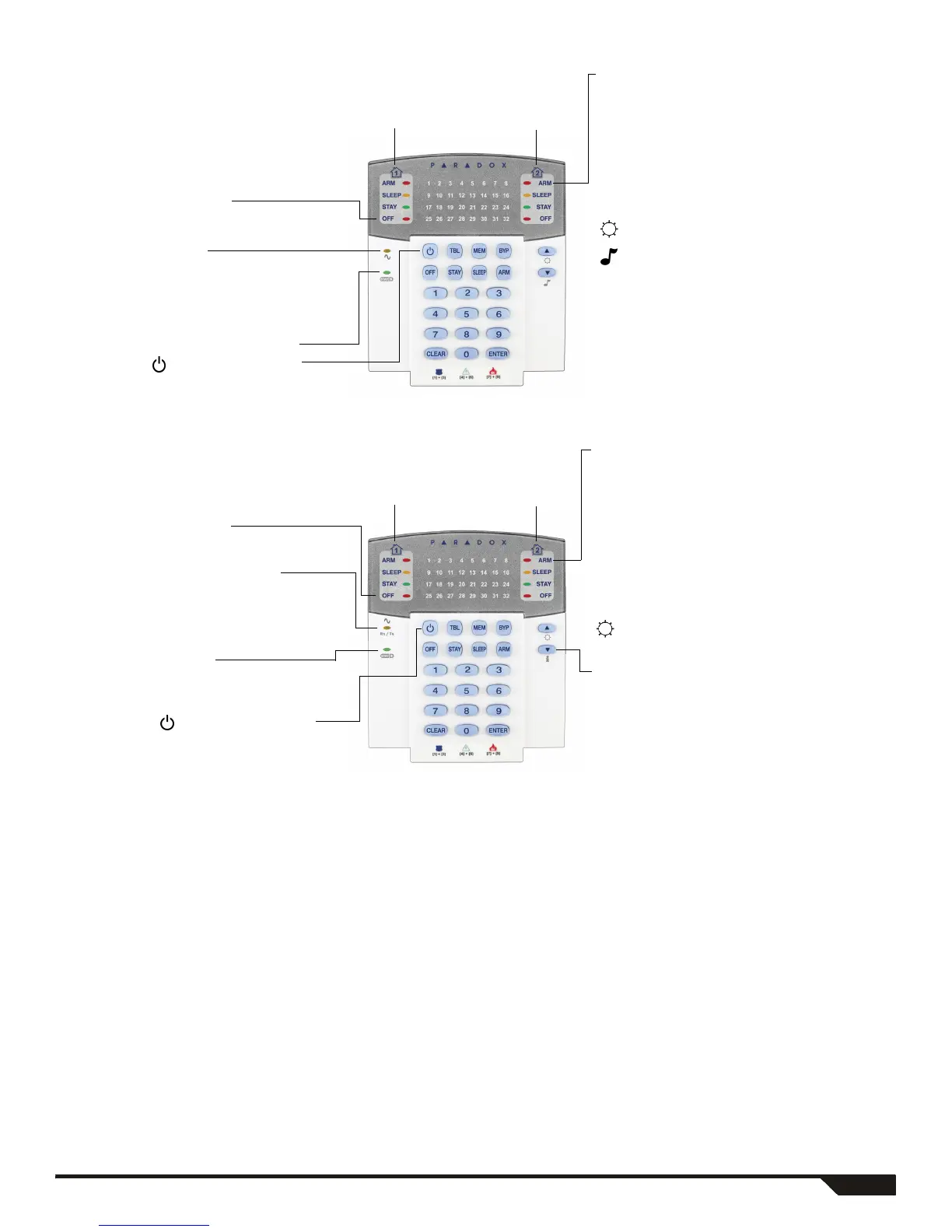

Figure 2: MG32LED (32-zone LED Keypad Module)
Partition 1 Status Partition 2 Status
Off Light (red):
On = Disarmed
Off = System armed
AC Light
On = Power on
Off = Power off
= Press once + [
MASTER
CODE] for Quick Menu
Programming
On = StayD Enabled (see p.6)
Arm (red), Sleep (yel), Stay (grn):
On = Partition armed
Off = Partition disarmed
Flash = Exit Delay
Fast Flash*= Exit Delay (final 10 sec.)
Fast Flash*= Partition in alarm
* Audible Indicators:
Continuous beep = Alarm
Variable beep = Fire alarm
Intermittent beep = Beginning of exit delay
Fast beep = Final 10 sec. of exit delay
= Press and hold to modify backlight
(see page 13)
=
Press and hold to set chime zones
(see page 13)
[TBL] Trouble display
ON = Trouble(s) occurring
[MEM] Alarm memory display
ON = Alarm(s) occurred
[BYP] Bypass programming
ON = Zone(s) bypassed
Zone Display:
The numbers [1] to [32] correspond to
zones 1 to 32 respectively. Open or
entry delay zones are illuminated, and
flash in alarm.
Figure 3: MG32LRF (32-zone Wireless LED Keypad Module)
Partition 1 Status Partition 2 Status
Off Light (red):
ON = Disarmed
OFF = System armed
Power and Rx/Tx Light
ON = Power on
OFF = Power off
Fast Flash = Transmission/reception in
progress
Slow Flash = AC Loss on Keypad
StayD (grn)
On = StayD mode enabled
Slow Flash = Low battery on keypad
= Press once + [
MASTER
CODE] for Quick Menu
Programming
lnfo Key
Refresh display to see all open zones
(see page 12)
Arm (red), Sleep (yel), Stay (grn):
On = Partition armed
Off = Partition disarmed
Flash = Exit Delay
Fast Flash*= Exit Delay (final 10 sec.)
Fast Flash*= Partition in alarm
* Audible Indicators:
Continuous beep = Alarm,
Variable beep = Fire alarm
Intermittent beep = Beginning of exit delay
Fast beep = Final 10 sec. of exit delay
= Press and hold to modify backlight
(see page 13)

Paradox MG5050 Specifications

General

Partitions	2
User Codes	32
Wireless Zones	32
Event Buffer	256 events
Remote Controls	Supports up to 32 remote controls
Standby Current	85 mA
Zones	32
Communication	GSM
Humidity	5% to 90% non-condensing
Input Voltage	16.5 VAC
