Chapter 1: Assemble the SumoBot · Page 3
Step #1
Install the Battery Box
Parts Required:
• Battery Box
• (2) 4/40 3/8" long
flat-head countersunk
machine screws
• (2) 4/40 nuts
• SumoBot chassis

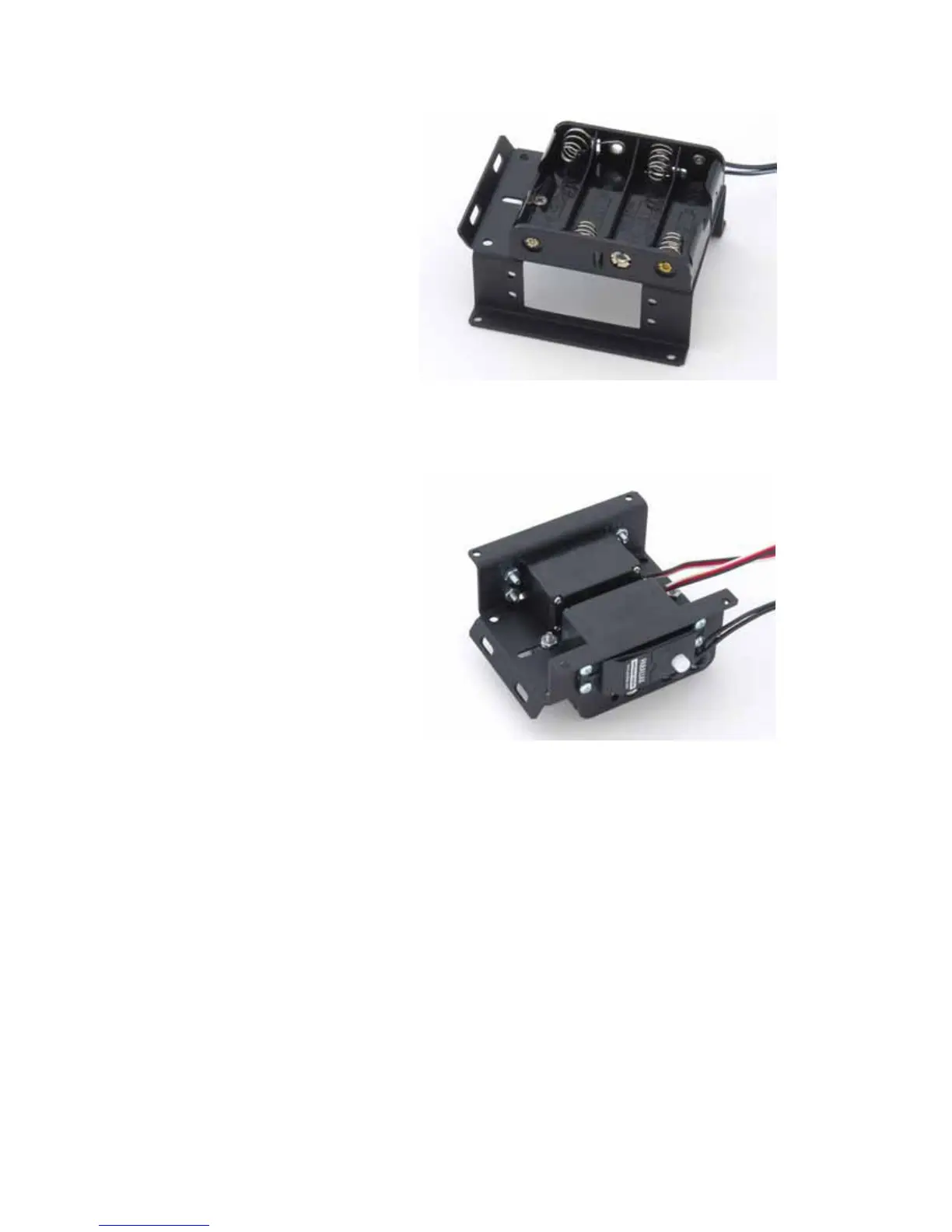

Stand the SumoBot on its PCB mounting ears. Install the plastic battery pack using two
4/40 3/8” flat-head screws and nuts. The screws will be countersunk into the battery
pack when tightened and should be out of the way of the batteries.
Step #2
Install the Servo Motors
Parts Required:
• (2) Parallax
Continuous Rotation
Servos
• (8) 4/40 3/8" long
pan-head machine
screws
• (8) 4/40 nuts
• SumoBot chassis
Using four 4/40 3/8” pan-head machine screws and 4/40 nuts, attach each servo motor
to the chassis. The easiest way to do this is to hold the nut with one finger while
turning the screwdriver with the other hand.
