Step #3
Install the Rear SumoBot
PCB Stand-offs
Parts Required:
• (2) 5/8" round
standoffs
• (2) 4/40 3/8" long pan-
head machine screws
• SumoBot chassis

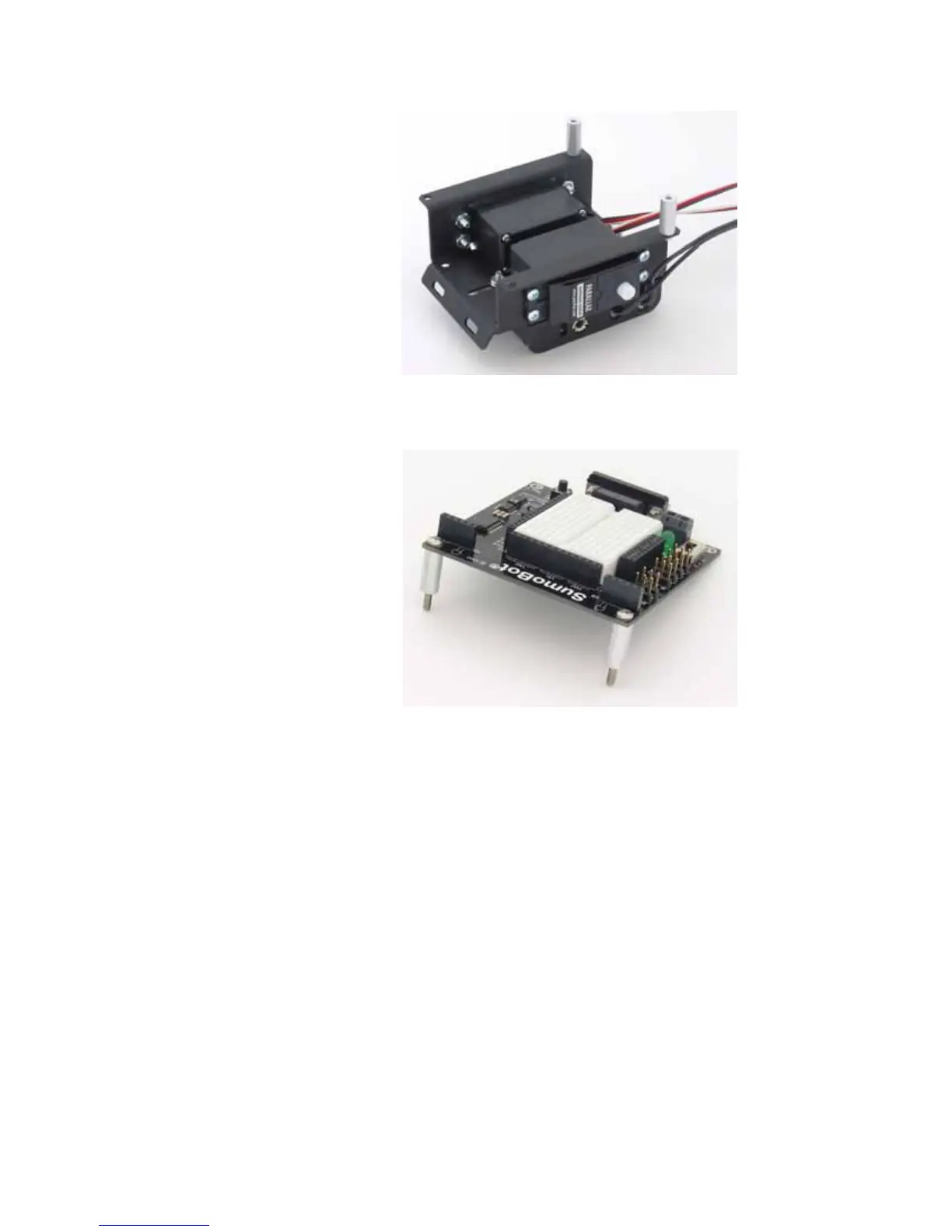

Using a 4/40 3/8" pan-head machine screw, attach each stand-off to the rear of the
SumoBot chassis.
Step #4
Install the Front SumoBot
PCB Stand-offs
Parts Required:
• (2) 5/8" round
standoffs
• (2) 4/40 1" long pan-
head machine screws
• SumoBot PCB
Using a 4/40 1" pan-head machine screw, attach each standoff to the front mounting
holes of the SumoBot PCB.
